Removal and Installation: Removal

WARNING: This page is about a different car, the 2022 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be sure to perform "ADDITIONAL SERVICE WHEN REPLACING ADAS CONTROL UNIT 2" when replacing ADAS control unit 2. Refer to Work Procedure .

Remove center console assembly. Refer to Removal and Installation .
Remove around view monitor control unit. Refer to Removal and Installation .
Remove ADAS control unit 2 nuts .

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: The harness connector is difficult to remove unless removing the ADAS control unit 2 first (The connector lock is located on the lower side).

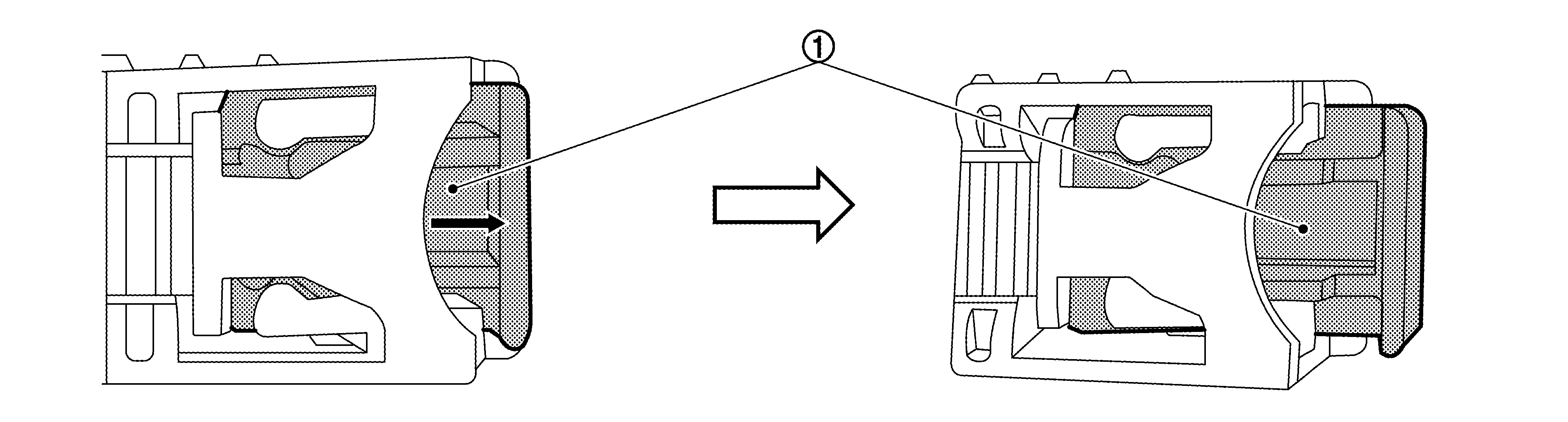

Release the lock as shown by the arrow in the figure and disconnect the harness connector from the ADAS control unit 2.

Courtesy of NISSAN NORTH AMERICA, INC.
