Exploded View

REMOVAL

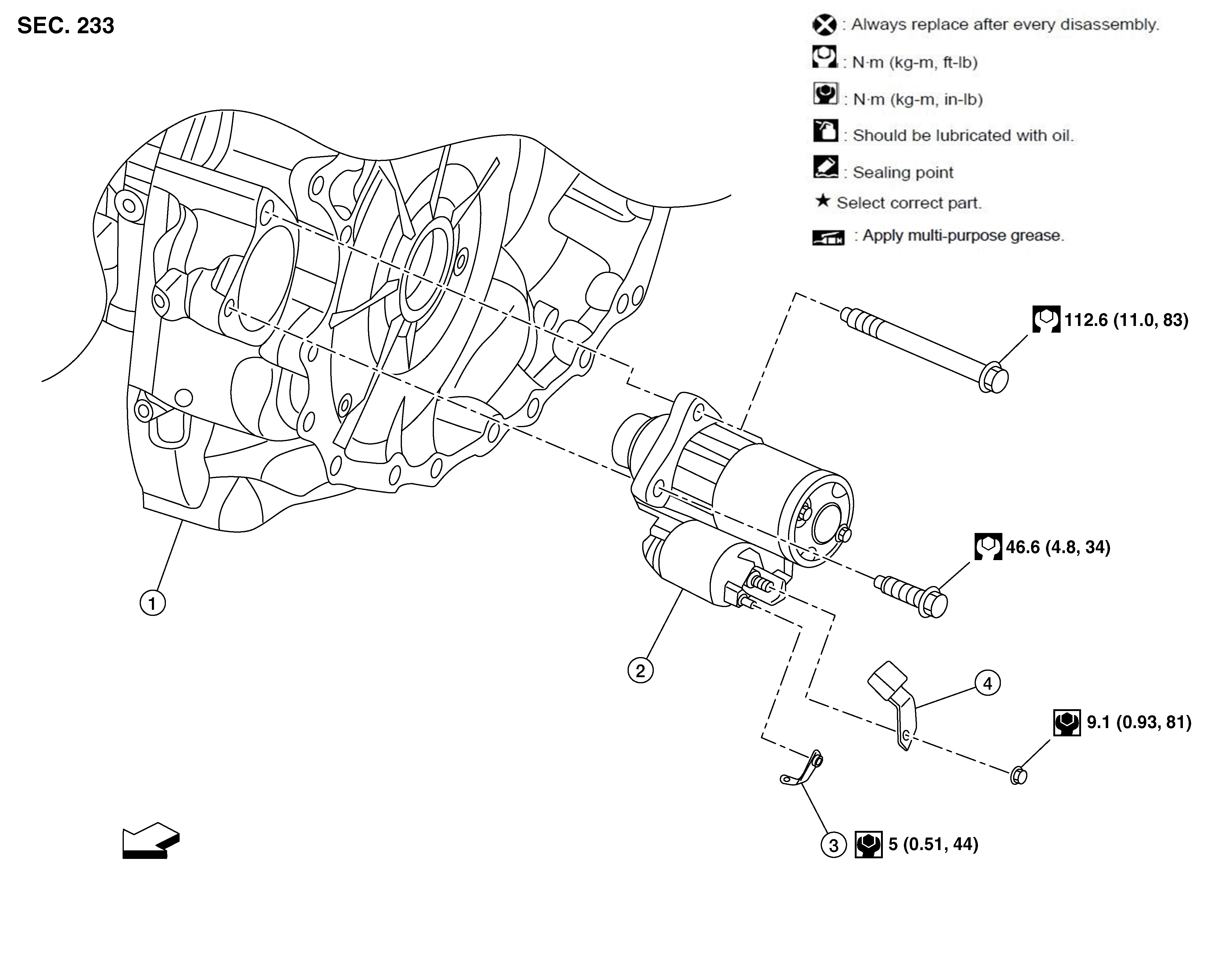

Fig 1: Starter Motor With Torque Specifications - PR25DD
GNSDB37490SYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN
SYMBOL Transaxle assembly SYMBOL Starter motor SYMBOL "S" terminal harness (with "S" terminal nut)
SYMBOL "B" terminal harness
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : N.m (kg-m, ft-lb)

DISASSEMBLY

Type: M000TB0471

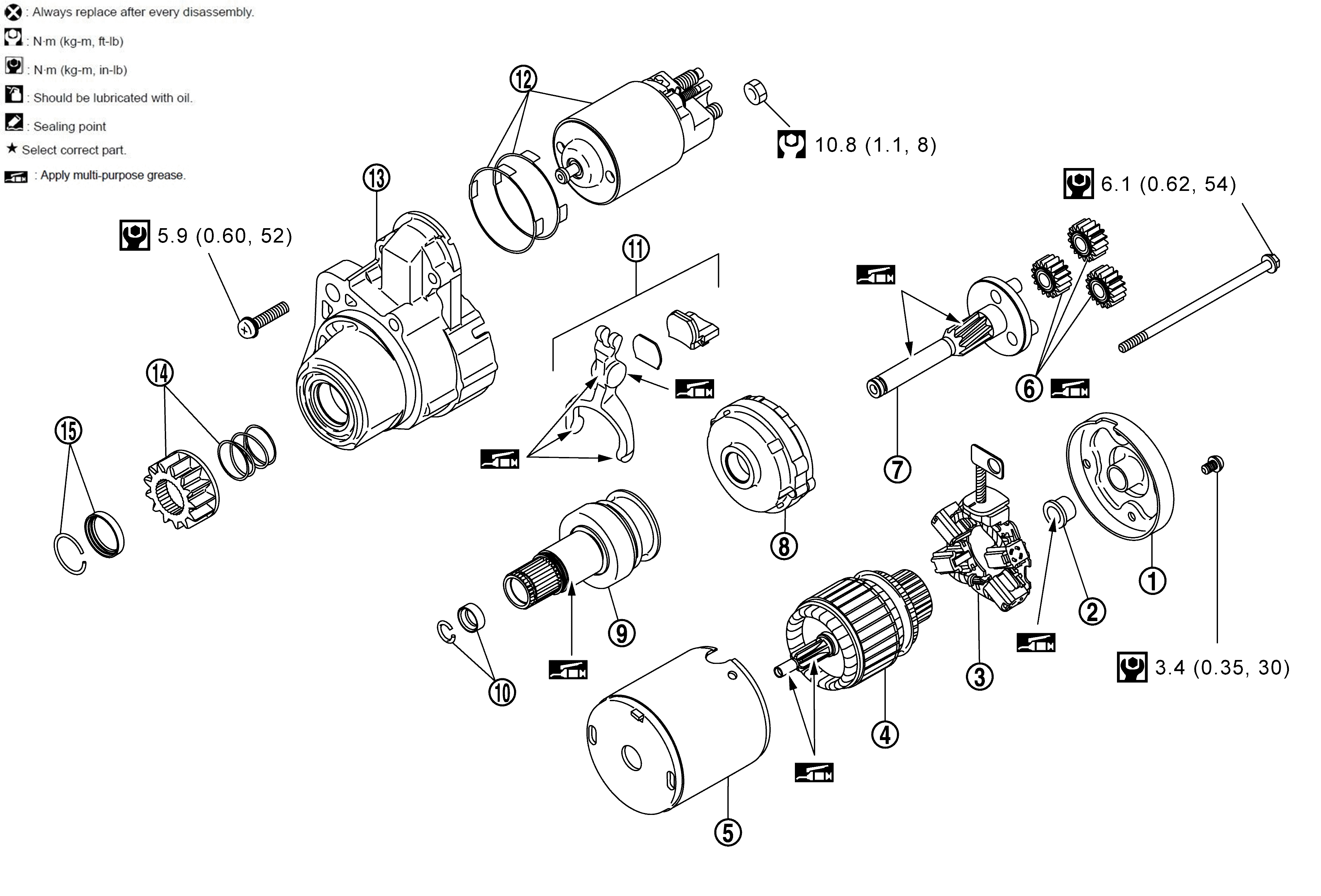

Fig 2: Starter Motor Disassembly With Torque Specifications - Type: M000TB0471
GNSDB37417Courtesy of NISSAN
SYMBOL Rear cover SYMBOL Metal SYMBOL Brush holder assembly
SYMBOL Armature assembly SYMBOL Yoke assembly SYMBOL Gear assembly
SYMBOL Gear shaft SYMBOL Internal gear assembly SYMBOL Clutch gear assembly
SYMBOL Stopper set SYMBOL Shift lever set SYMBOL Magnetic switch assembly
SYMBOL Gear case assembly SYMBOL Pinion assembly SYMBOL Stopper set
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : High-temperature grease
