Engine Control System: Wiring Diagram

ENGINE CONTROL SYSTEM WITH IDLE STOP/START SYSTEM

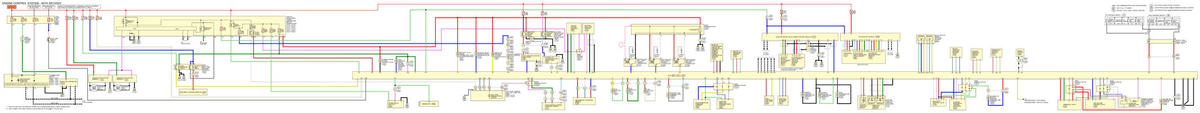

GNSW70512Courtesy of NISSAN NORTH AMERICA, INC.

ENGINE CONTROL SYSTEM WITHOUT IDLE STOP/START SYSTEM

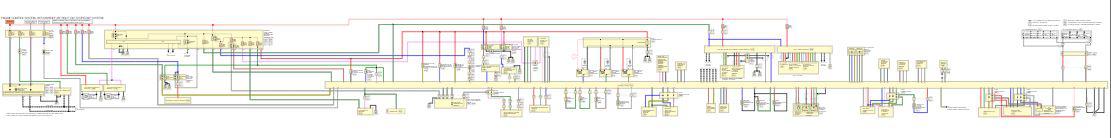

GNSW73300Courtesy of NISSAN NORTH AMERICA, INC.
