Exploded View

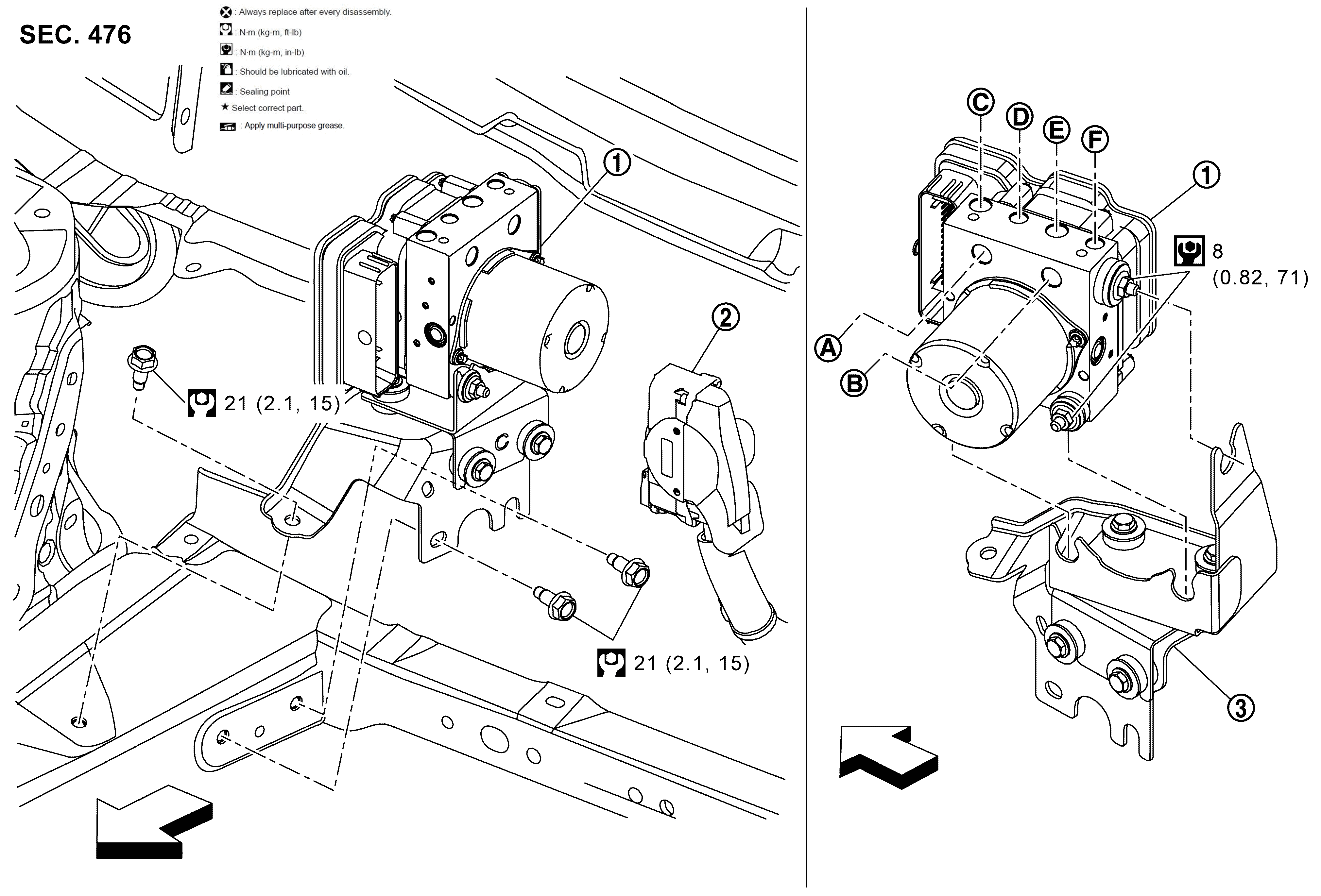

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications
GNSDB33795SYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN
SYMBOL ABS actuator and electric unit (control unit) SYMBOL ABS actuator and electric unit (control unit) harness connector SYMBOL Bracket
SYMBOL To master cylinder secondary side SYMBOL To master cylinder primary side SYMBOL To rear RH caliper
SYMBOL To front LH caliper SYMBOL To front RH caliper SYMBOL To rear LH caliper
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : N.m (kg-m, in-lb)
