SYSTEM DISPLAY

Courtesy of NISSAN NORTH AMERICA, INC.

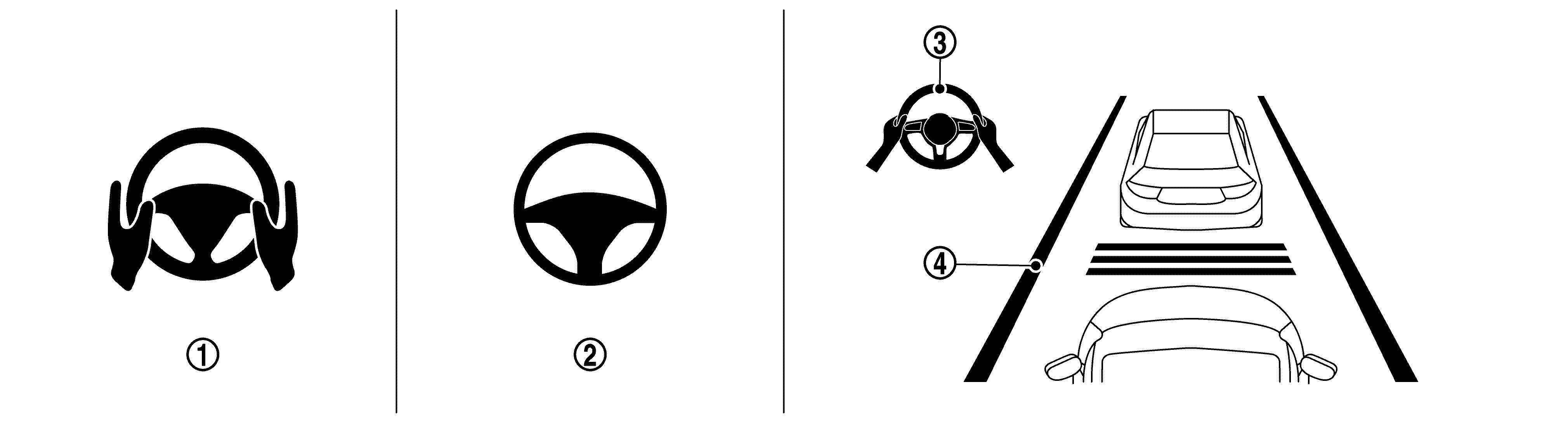

No.	Function	Description
	Hands OFF warning lamp	Illuminates when the steering wheel is not operated or the driver takes own hands Off the steering wheel for a period of time
	Steering assist status indicator/warning	The steering assist status is indicated by different colors and shapes
	Steering assist status indicator	The steering assist status is indicated by different colors and shapes
	Lane marker indicator	Notifies the driver of the lane detection status

SYSTEM CONTROL CONDITION DISPLAY

When ProPILOT Assist MAIN switch is OFF, pressing the ProPILOT Assist MAIN switch for less than 1.5 seconds illuminates the displays the set vehicle speed, displays the set following distance, illuminates the steering assist indicator/warning, illuminates the steering indicator, and engages set wait condition.

Condition		Display on information display

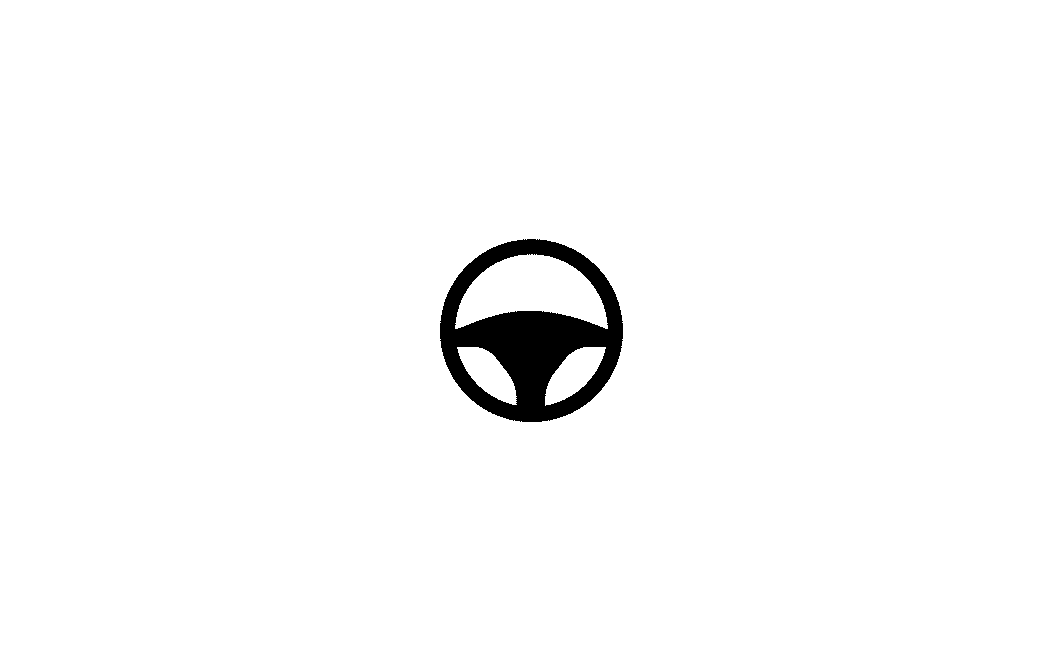

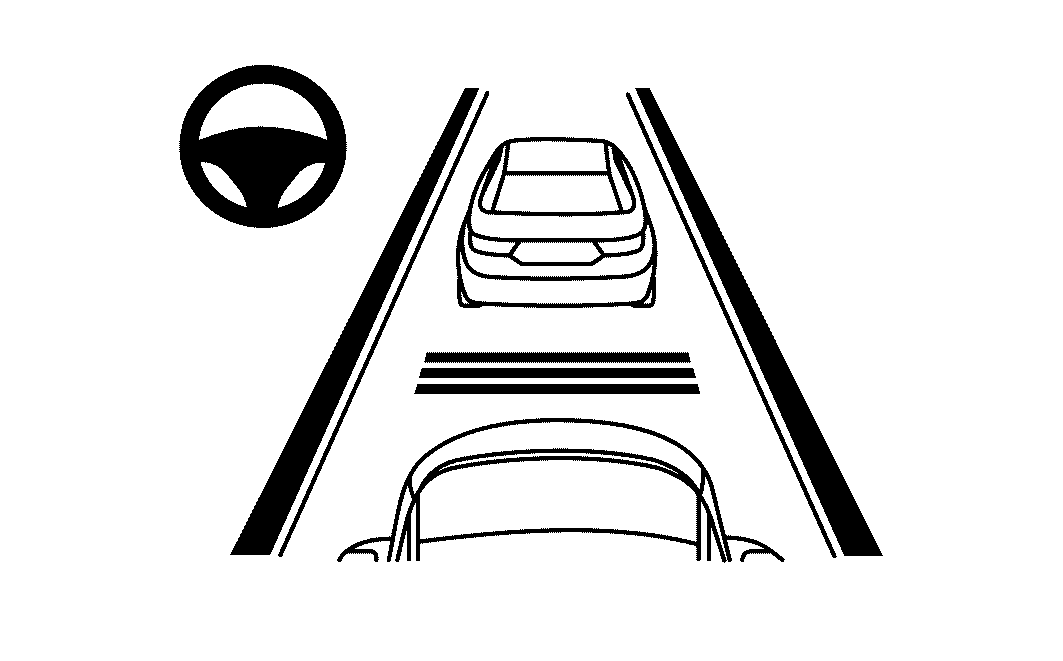

Steering Assist standby		Steering assist status indicator/warning: Gray Courtesy of NISSAN NORTH AMERICA, INC.
		Steering assist status indicator: Gray Courtesy of NISSAN NORTH AMERICA, INC.

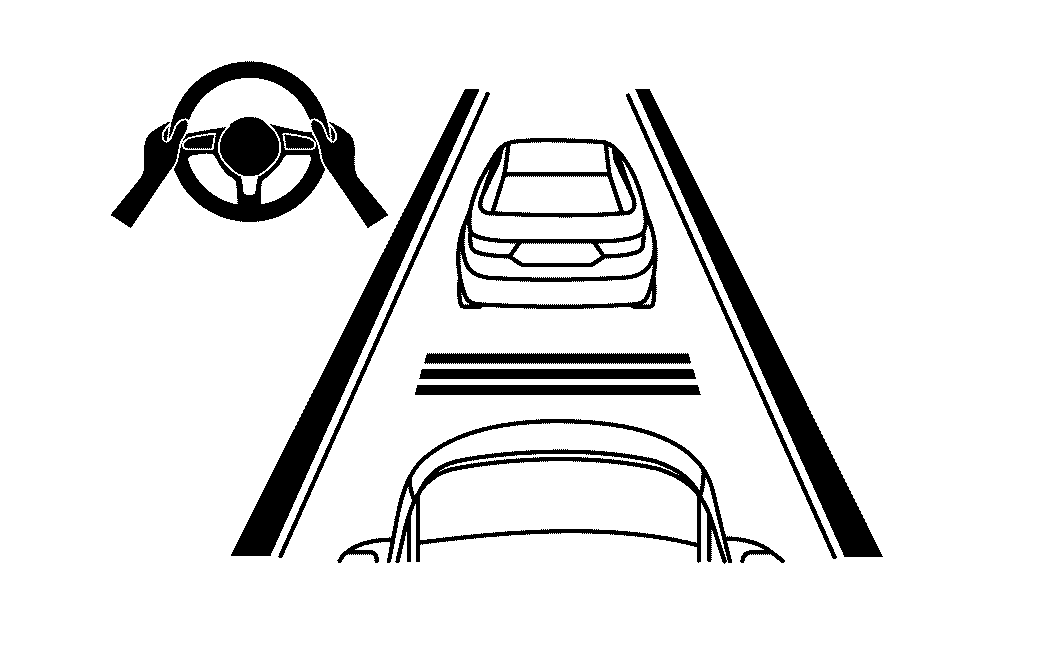

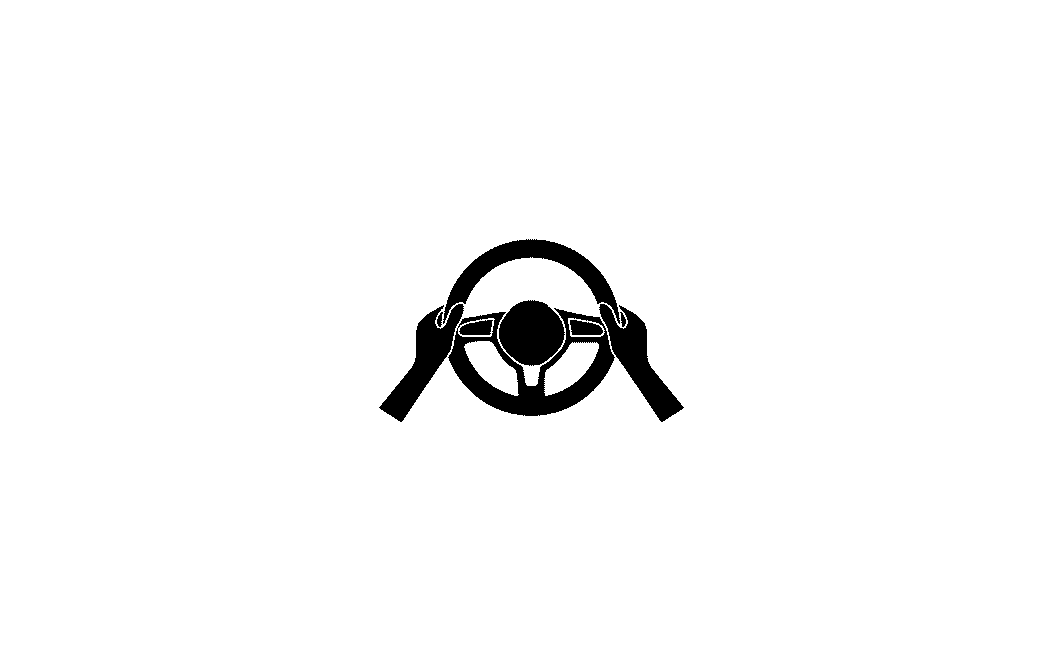

Steering Assist active		Steering assist status indicator/warning: Green Courtesy of NISSAN NORTH AMERICA, INC.
		Steering assist status indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.

WARNING LAMP AND AUTOMATIC CANCELLATION DISPLAY

Condition	Description	Display on information display	Warning lamp

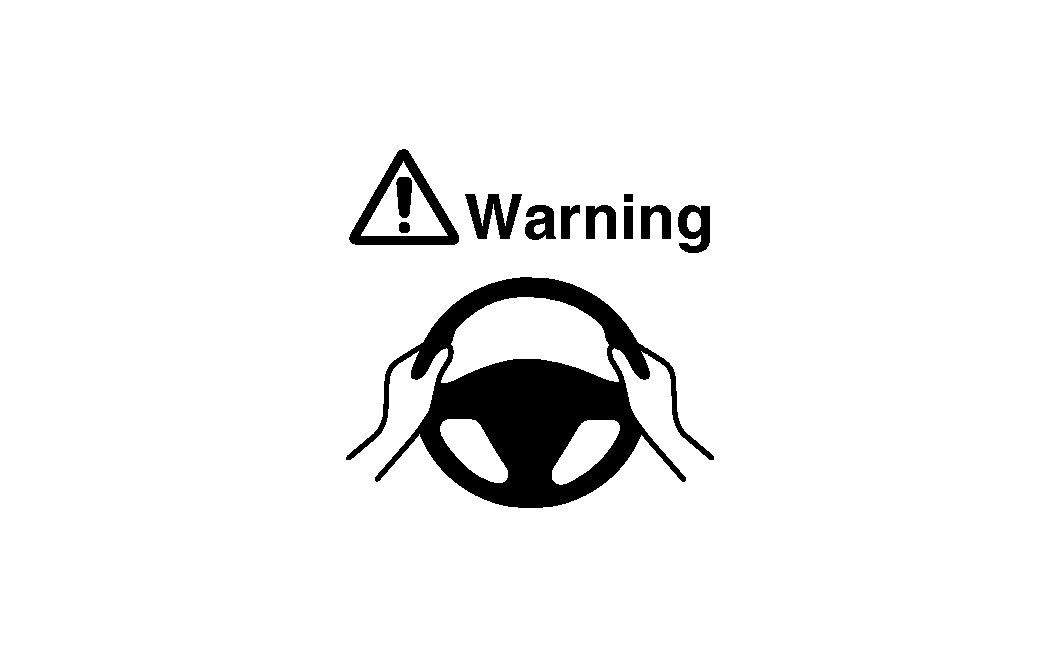

When the driver releases the steering wheel	Steering assist continues NOTE: When the driver holds and operates the steering wheel again, the warnings turn OFF	Steering assist status indicator/warning: Yellow Courtesy of NISSAN NORTH AMERICA, INC.	ON
		Courtesy of NISSAN NORTH AMERICA, INC.

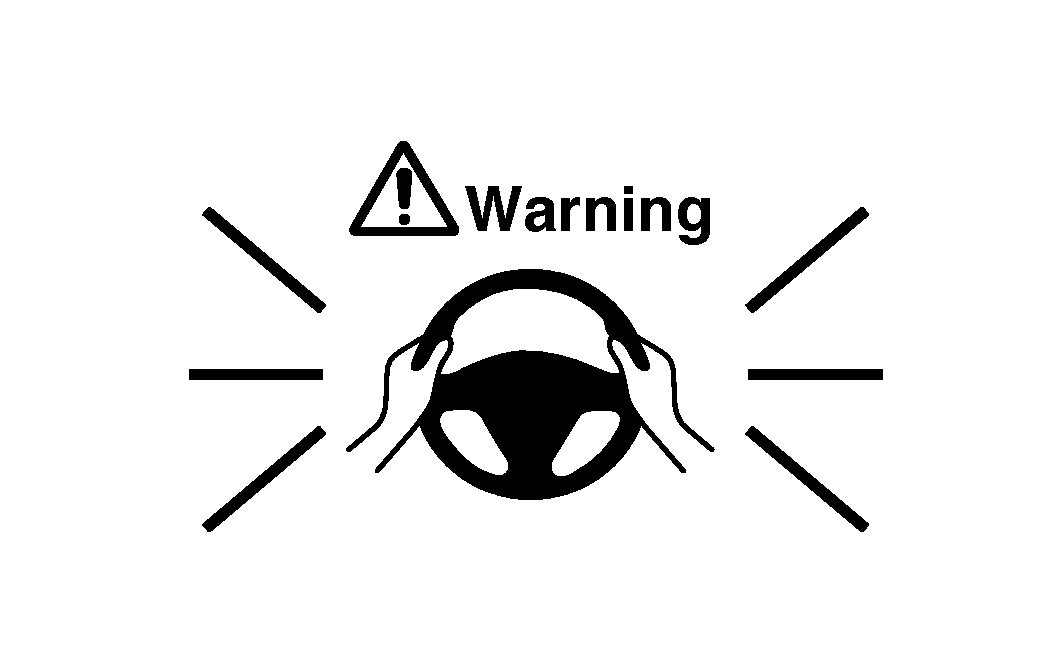

After the warning has been displayed, when the driver does not operate the steering	An audible alert sounds and the warning flashes in the information display NOTE: When the driver holds and operates the steering wheel again, the warnings turn OFF	Steering assist status indicator/warning: Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Blink
		Courtesy of NISSAN NORTH AMERICA, INC.
When the wiper (HI) operates When lane markers in the traveling lane cannot be correctly detected for a period of time due to such items as a snow rut, reflection of light on a rainy day or several unclear lane markers are present	The control is automatically canceled NOTE: After the conditions are improved, the system can be set again	Not Available Front Camera Obstructed	OFF
