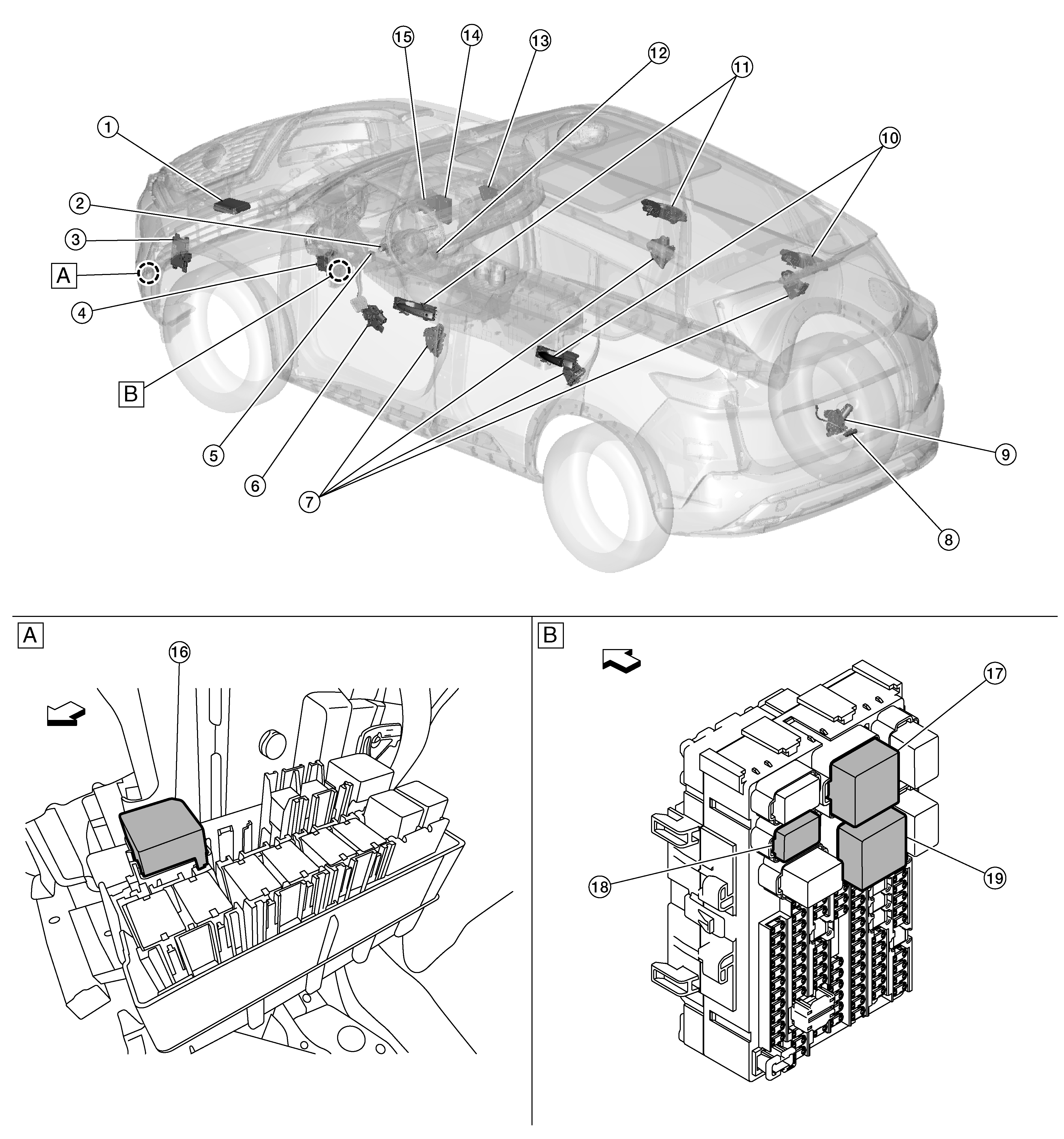

Component Location

WARNING: This page is about a different car, the 2022 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

IPDM E/R Refer to Component Location for detailed installation location.	Combination switch (Lighting & turn signal switch)	TCM Refer to detailed installation location.
BCM Refer to Component Location for detailed installation location.	Stop lamp switch	Front power window motor LH
Door lock assembly (Door switch)	Back door opener switch (Back door request switch)	Back door lock assembly (Back door switch)
Rear door outside handle assembly (Door request switch)	Front door outside handle assembly (Door request switch)	Push-button ignition switch
Intelligent Key unit Refer to Component Location for detailed installation location.	TCU Refer to Component Location for detailed installation location.	ABS actuator and electric unit (control unit) Refer to Component Location for detailed installation location.
Ignition relay-3	Ignition relay-2	Ignition relay-1
Accessory relay
Relay holder	Fuse block (J/B)
Vehicle front
