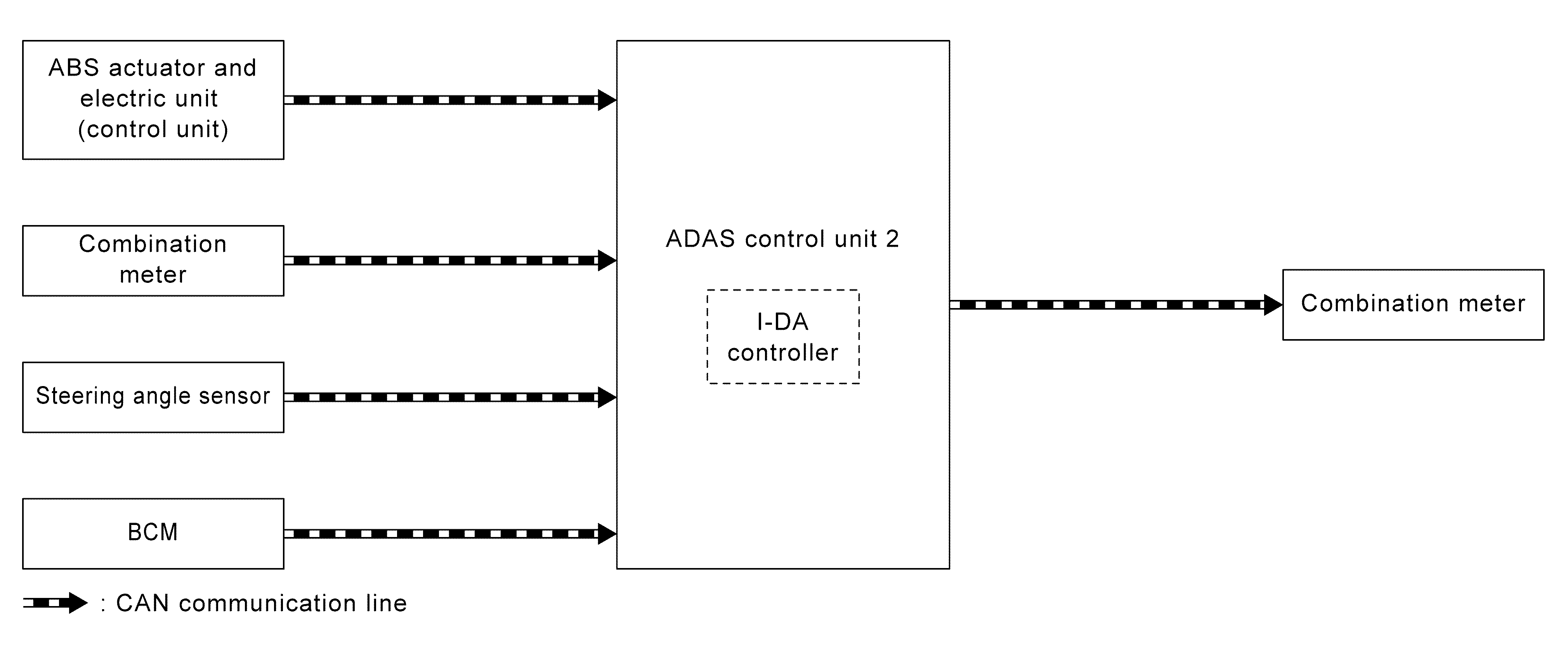

System Diagram

WARNING: This page is about a different car, the 2022 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Component	Description
BCM	System Description
Combination meter (FULL TFT METER)	Combination Meter
Combination meter (7 INCH INFORMATION DISPLAY)	Combination Meter
Steering angle sensor	Steering Angle Sensor
ABS actuator and electric unit (control unit)	ABS Actuator and Electric Unit (Control Unit)
ADAS control unit 2	ADAS Control Unit 2
