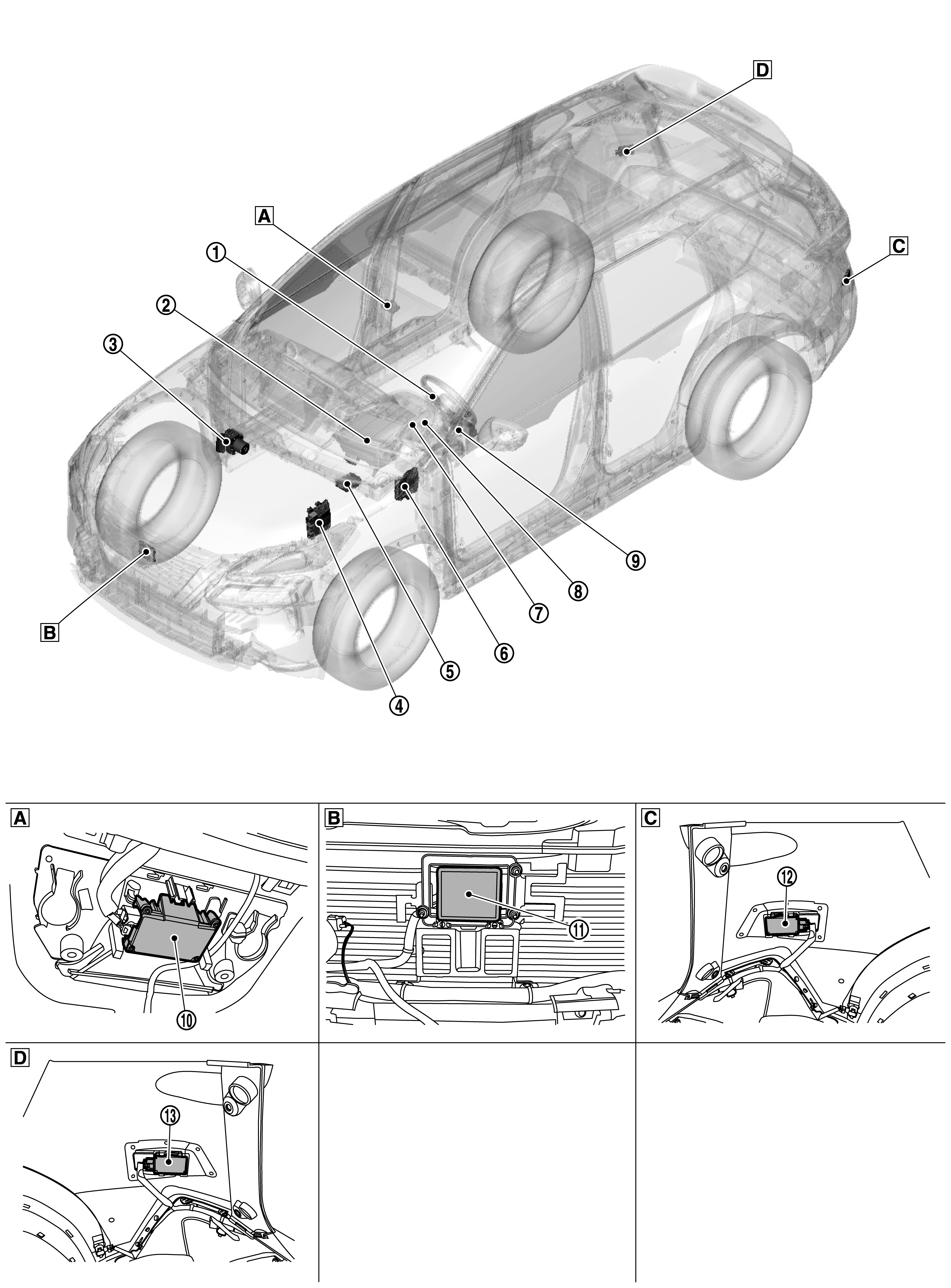

Component Location

WARNING: This page is about a different car, the 2022 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

	Center of windshield next to rear view mirror		Radiator core support		Rear bumper (LH)
	Rear bumper (RH)

ProPILOT Assist steering switch Refer to Component Location for detailed installation location.	Head Up Display unit Refer to Component Location for detailed installation location.	ABS actuator and electric unit (control unit) Refer to Component Location for detailed installation location.
ECM	TCM	BCM Refer to Component Location for detailed installation location.
Combination meter Refer to Component Location for detailed installation location (FULL TFT METER). Refer to Component Location for detailed installation location (7 INCH INFORMATION DISPLAY).	Steering angle sensor Refer to Component Location for detailed installation location.	ADAS control unit 2 Refer to Component Location for detailed installation location.
Front camera unit	Distance sensor	Side radar LH
Side radar RH
