Exploded View

WARNING: This page is about a different car, the 2021 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

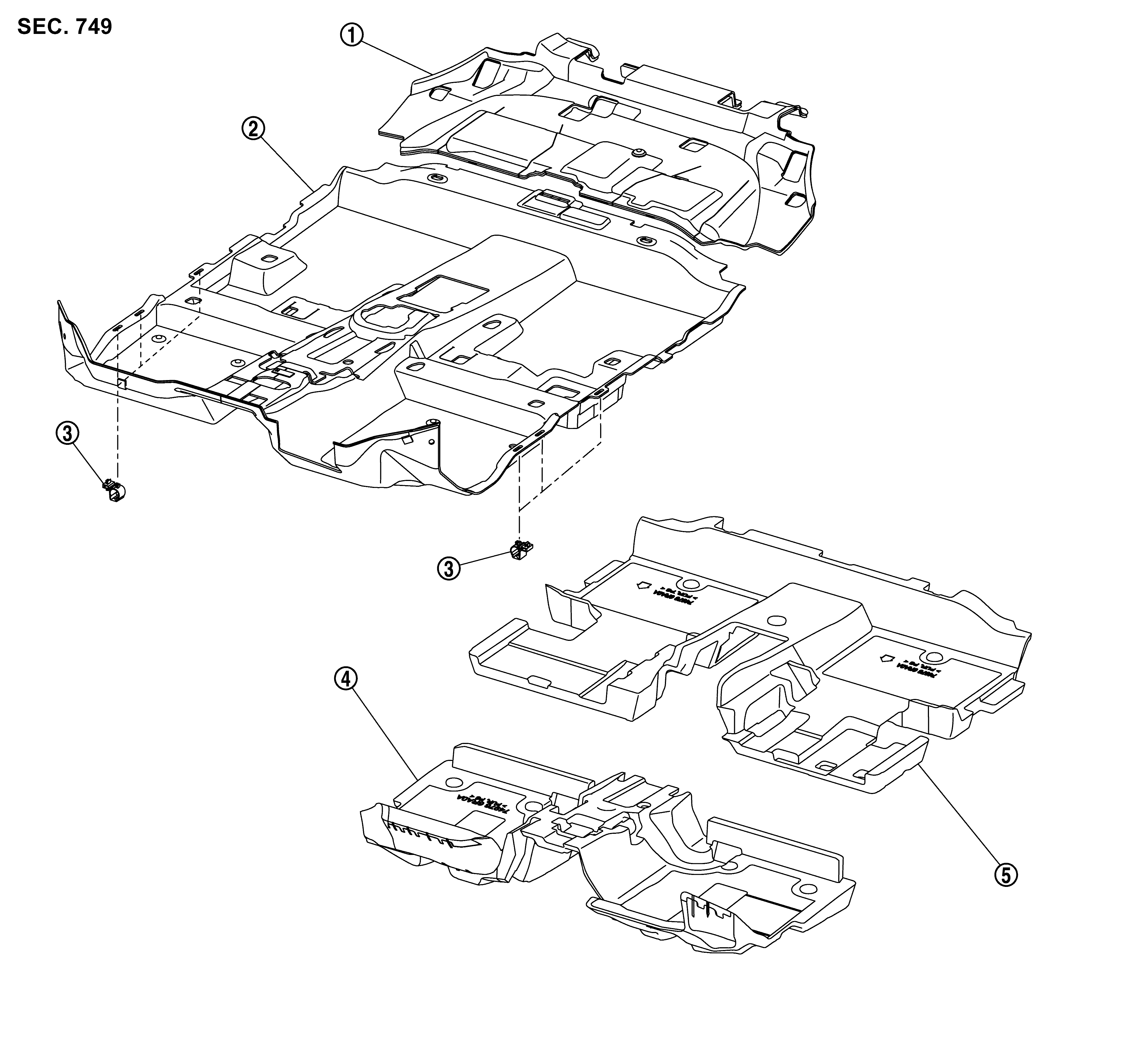

GNSILL0326564Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear floor carpet

SYMBOL

Front floor carpet

SYMBOL

Harness clip

SYMBOL

Front floor spacer

SYMBOL

Rear floor spacer
