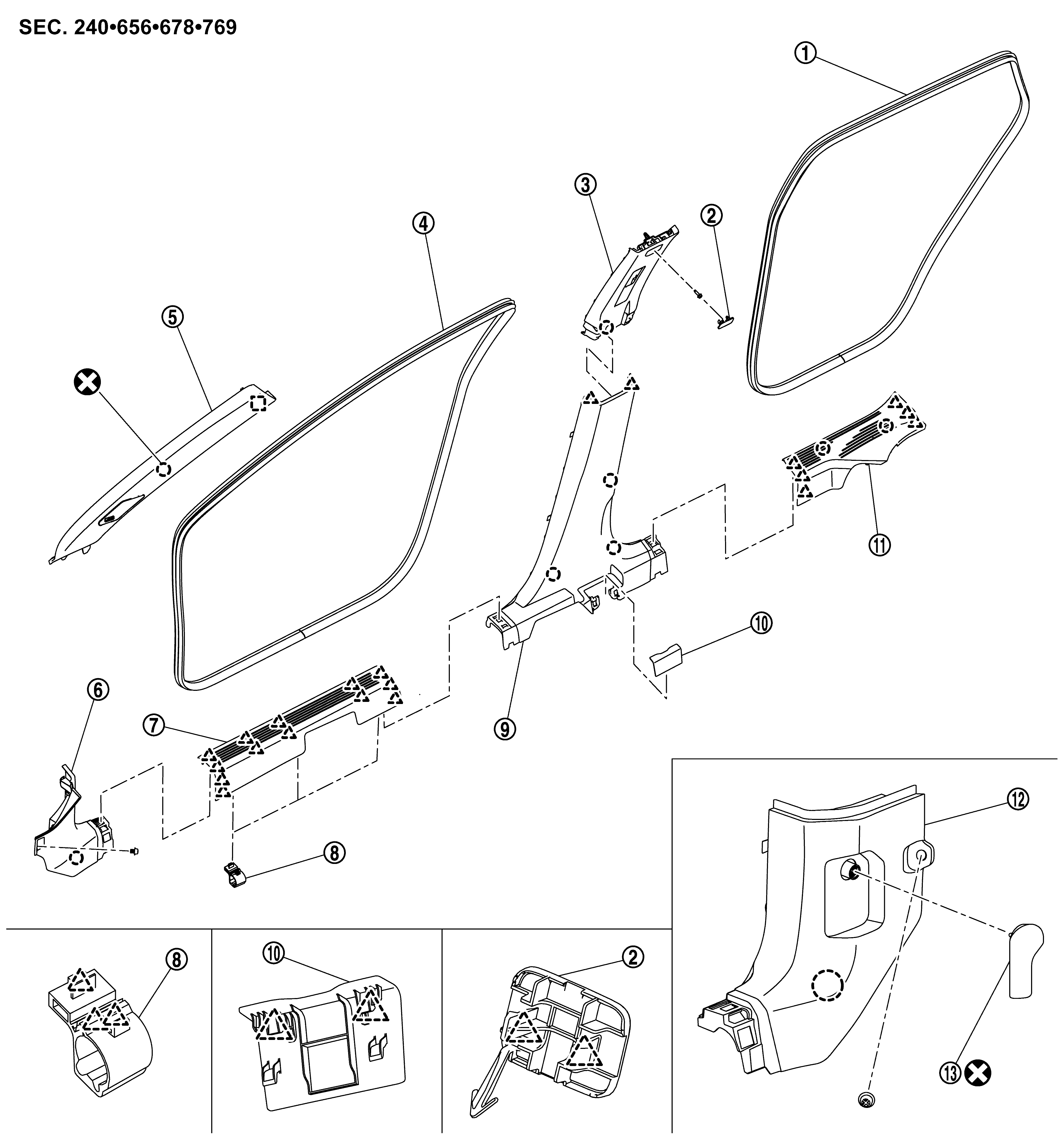

Exploded View
WARNING: This page is about a different car, the 2021 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Rear body side welt |
|
Bolt cap |
|
Center pillar upper garnish |
|
|
Front body side welt |
|
Front pillar garnish |
|
Dash side finisher RH |
|
|
Front kicking plate |
|
Harness protector |
|
Center pillar lower garnish |
|
|
Seat belt cover |
|
Rear kicking plate |
|
Dash side finisher LH |
|
|
Hood lock control handle |
||||
|
|
: Clip |
||||
|
|
: Pawl |
||||
|
|
: Metal clip |
||||
|
|
: Always replace after every disassembly. |
||||
