Exploded View

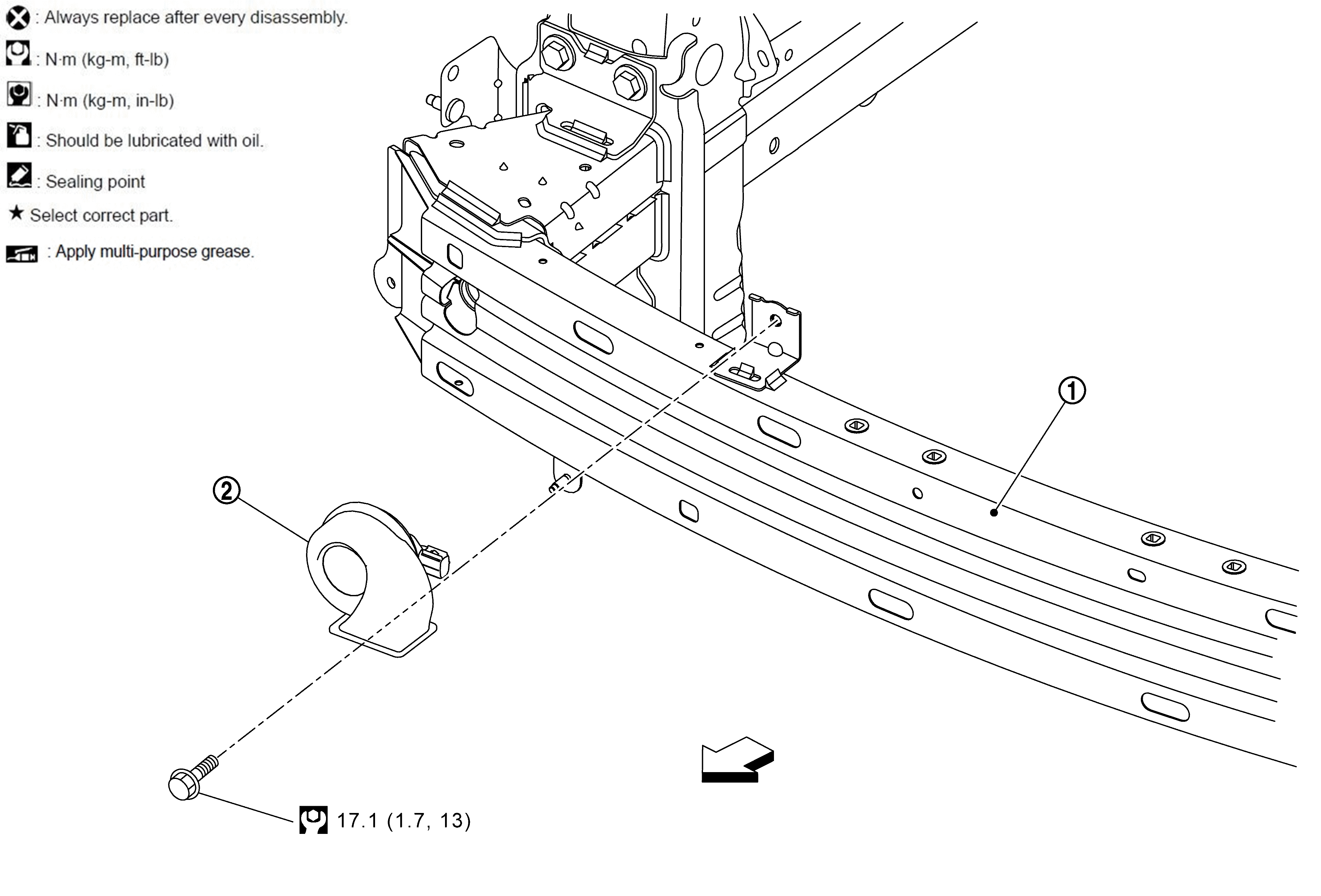

Fig 1: Horn With Torque Specifications
GNSDB36929Courtesy of NISSAN
SYMBOL Front bumper reinforcement SYMBOL Horn
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, ft-lb)
