Removal and Installation

REMOVAL

  1. Remove switch panel. Refer to Removal and Installation .

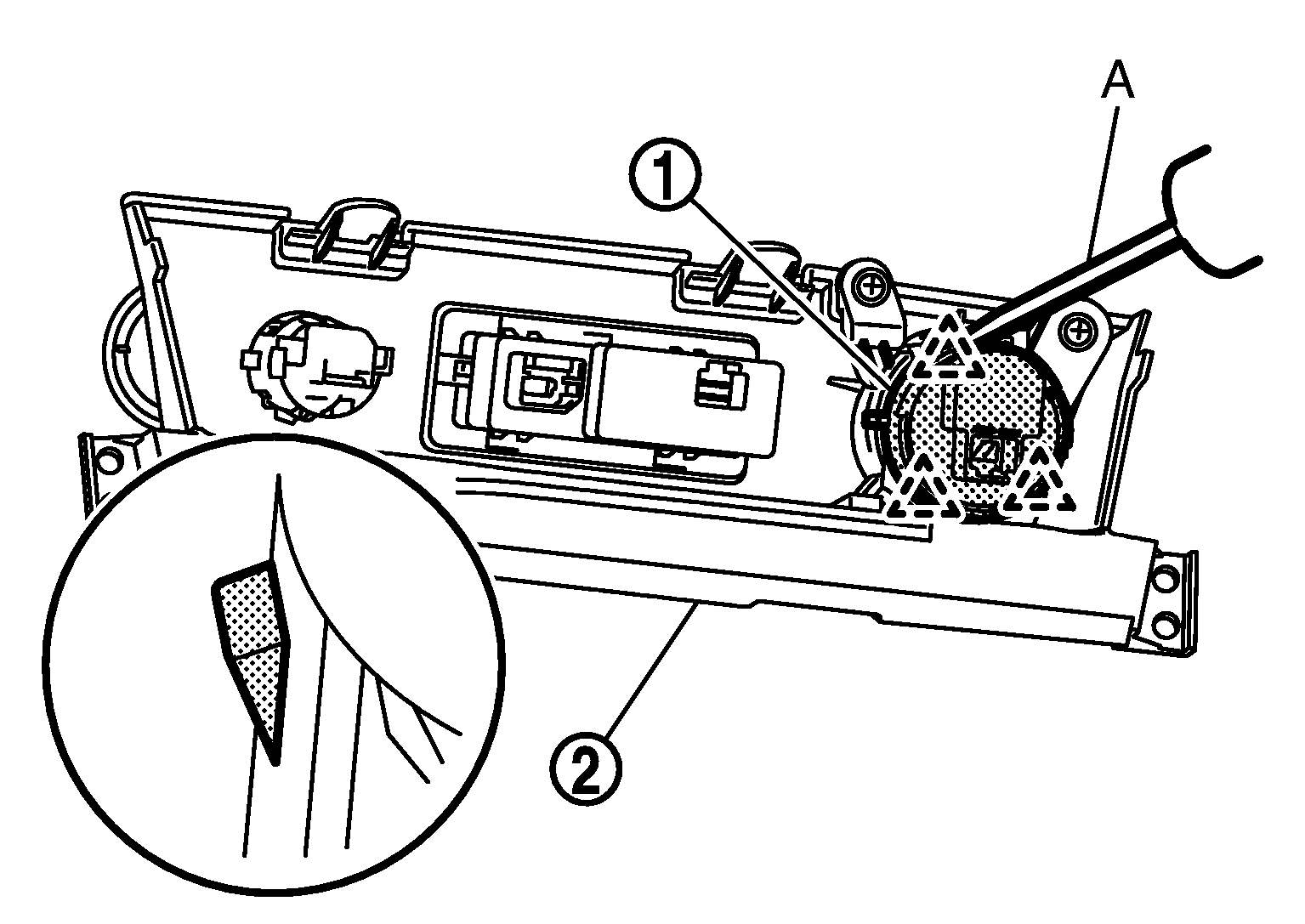

  2. Disengage the fixing pawls using a remover tool (A) and then remove push-button ignition switch SYMBOL from switch panel SYMBOL .
    GNSDB35682Courtesy of NISSAN
    SYMBOL : Pawl

INSTALLATION

Installation is in the reverse order of removal.
