Exploded View

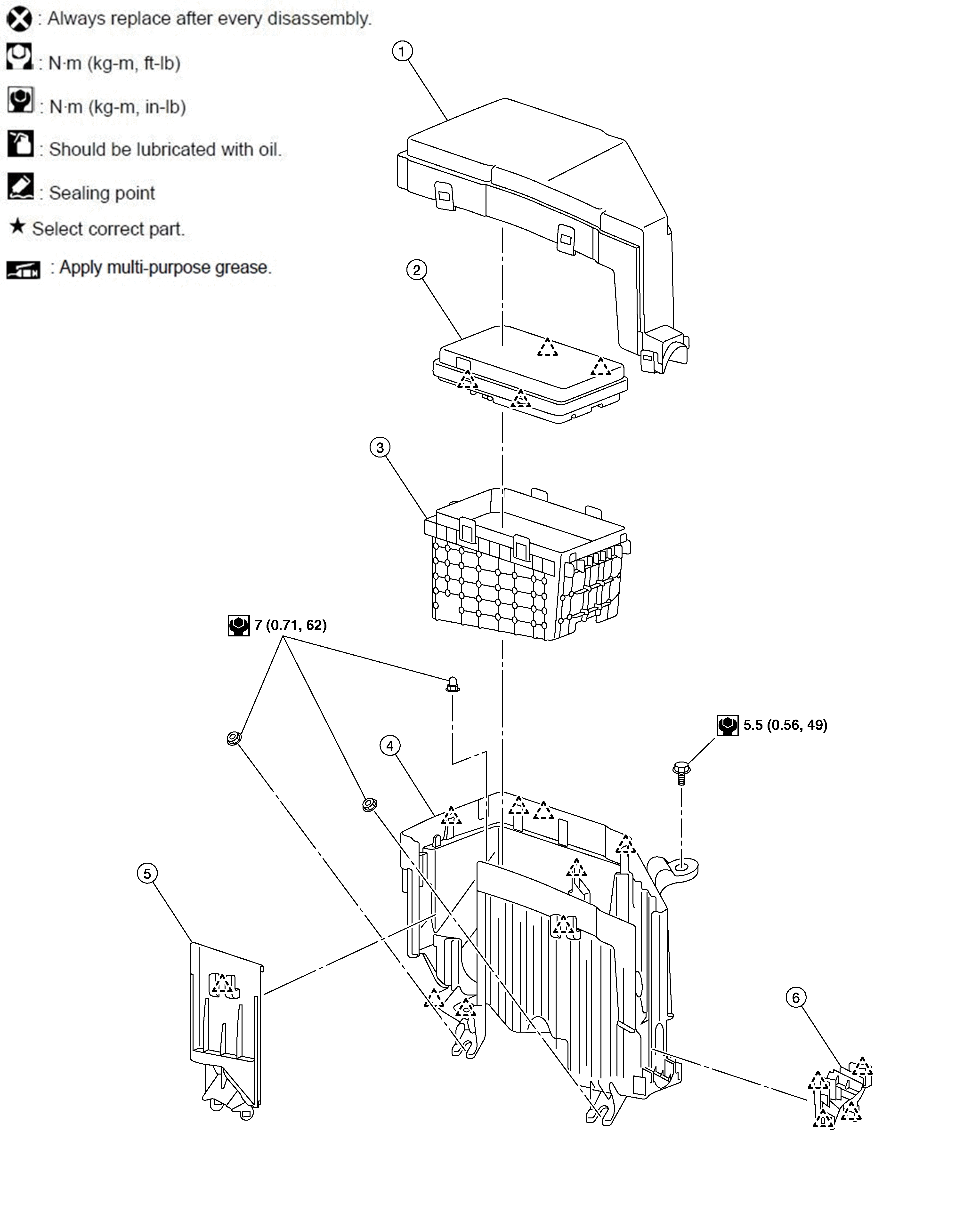

Fig 1: IPDM E/R With Torque Specifications
GNSDB42113Courtesy of NISSAN
SYMBOL IPDM E/R cover A SYMBOL IPDM E/R SYMBOL IPDM E/R cover B
SYMBOL IPDM E/R cover C SYMBOL IPDM E/R cover D SYMBOL IPDM E/R cover E
SYMBOL : Pawl
