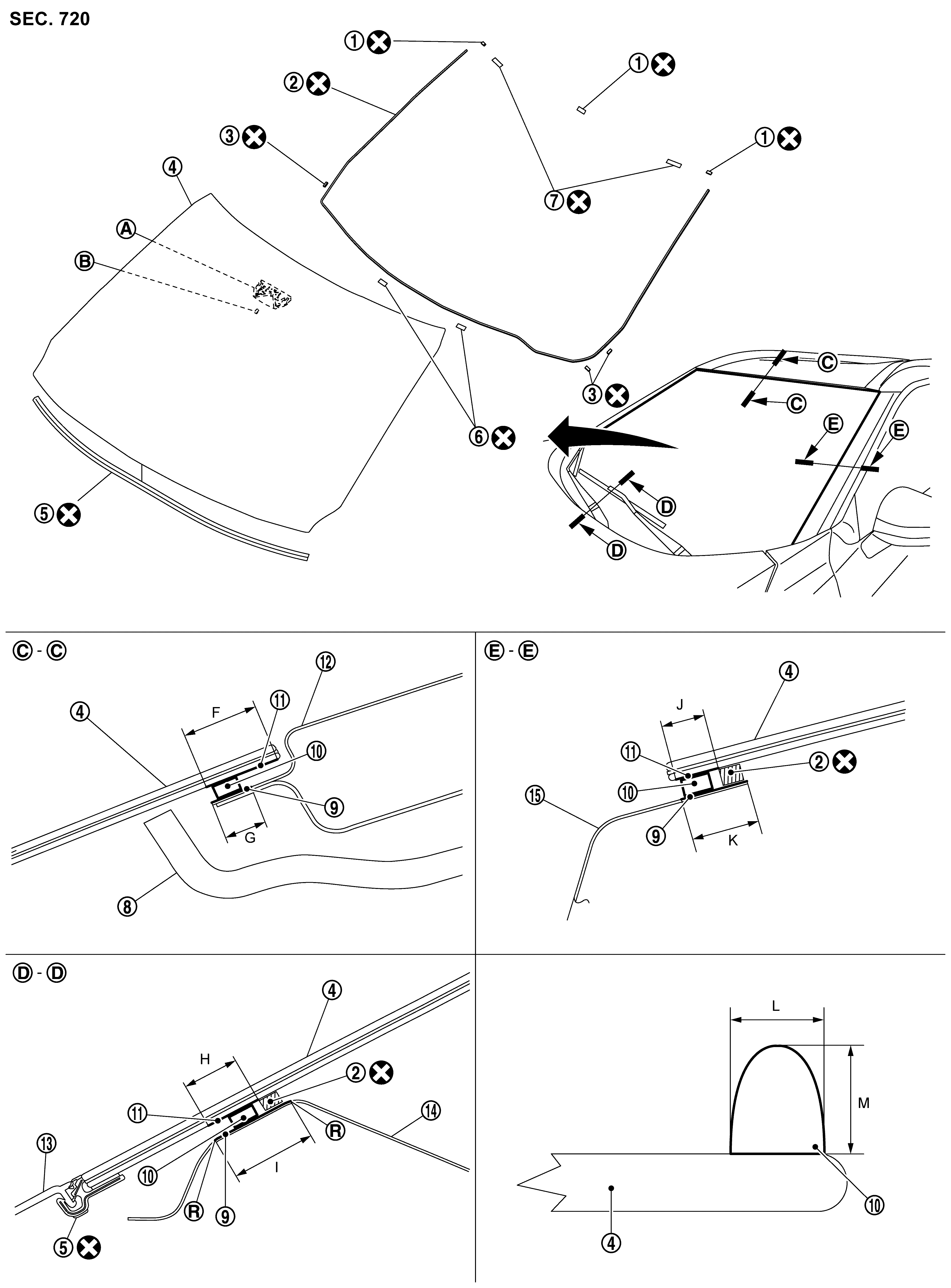

Exploded View

GNSDB35993Courtesy of NISSAN
SYMBOL Spacer (upper) SYMBOL Dam sealant rubber SYMBOL Spacer (lower)
SYMBOL Windshield glass SYMBOL Windshield glass molding SYMBOL Clip (lower)
SYMBOL Clip (upper) SYMBOL Headlining assembly SYMBOL Painted surface primer
SYMBOL Adhesive SYMBOL Glass primer SYMBOL Roof panel
SYMBOL Cowl top cover SYMBOL Dash upper SYMBOL body side outer panel
SYMBOL : Front camera unit and cover bracket (with front camera unit)
SYMBOL : inside mirror base
SYMBOL : R end
SYMBOL : Always replace after every disassembly.

Unit: mm (in)

Portion Primer range Adhesive range
L M
Windshield glass - Roof panel SYMBOL -SYMBOL F 21. 7 (0. 854) 7. 0 (0. 276) 12. 0 (0. 47)
G 15. 0 (0. 59)
Windshield glass - Dash upper SYMBOL -SYMBOL H 13. 0 (0. 512)
I R end to R end
Windshield glass - Body side outer panel SYMBOL -SYMBOL J 12. 0 (0. 47)
K 18. 0 (0. 71)
