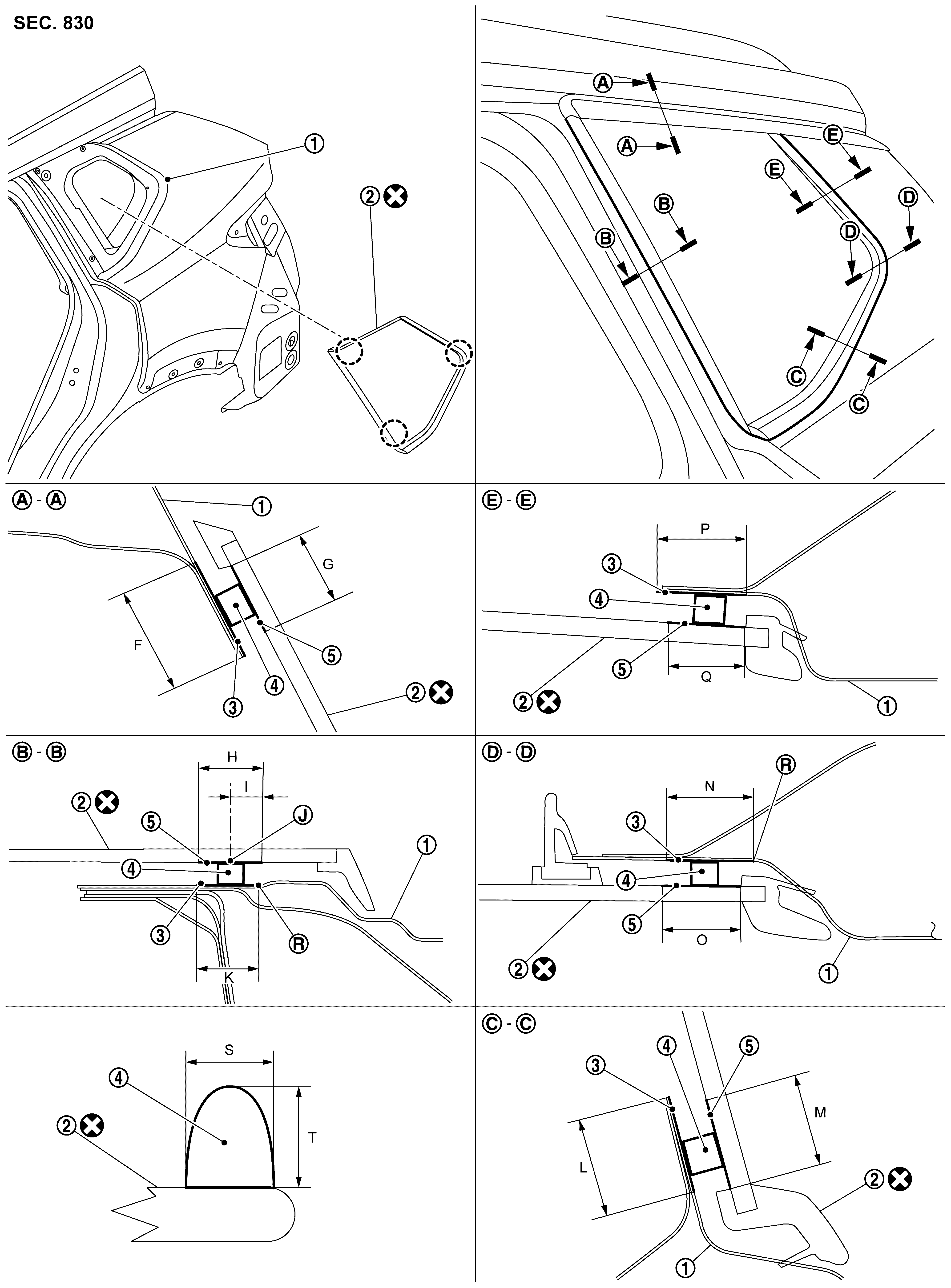

Exploded View
| Body side outer panel | Side window glass | Painted surface primer | |||
| Adhesive | Glass primer | ||||
| : Side window glass matching mark | |||||
| : R end | |||||
| : Clip | |||||
| : Always replace after every disassembly. | |||||
Unit: mm (in)
| Portion | Primer range | Adhesive range | |||
|---|---|---|---|---|---|
| S | T | ||||
| Side window glass - Body side outer panel | F | 22. 0 (0. 870) | 7. 0 (0. 28) | 12. 0 (0. 47) | |
| G | 17. 0 (0. 670) | ||||
| H | 17. 0 (0. 670) | ||||
| I | 8. 5 (0. 335) | ||||
| K | 17. 0 (0. 670) | ||||
| L | 19. 1 (0. 752) | ||||
| M | 17. 0 (0. 670) | ||||
| N | 18. 5 (0. 728) | ||||
| O | 17. 0 (0. 670) | ||||
| P | 19. 9 (0. 783) | ||||
| Q | 17. 0 (0. 670) | ||||
