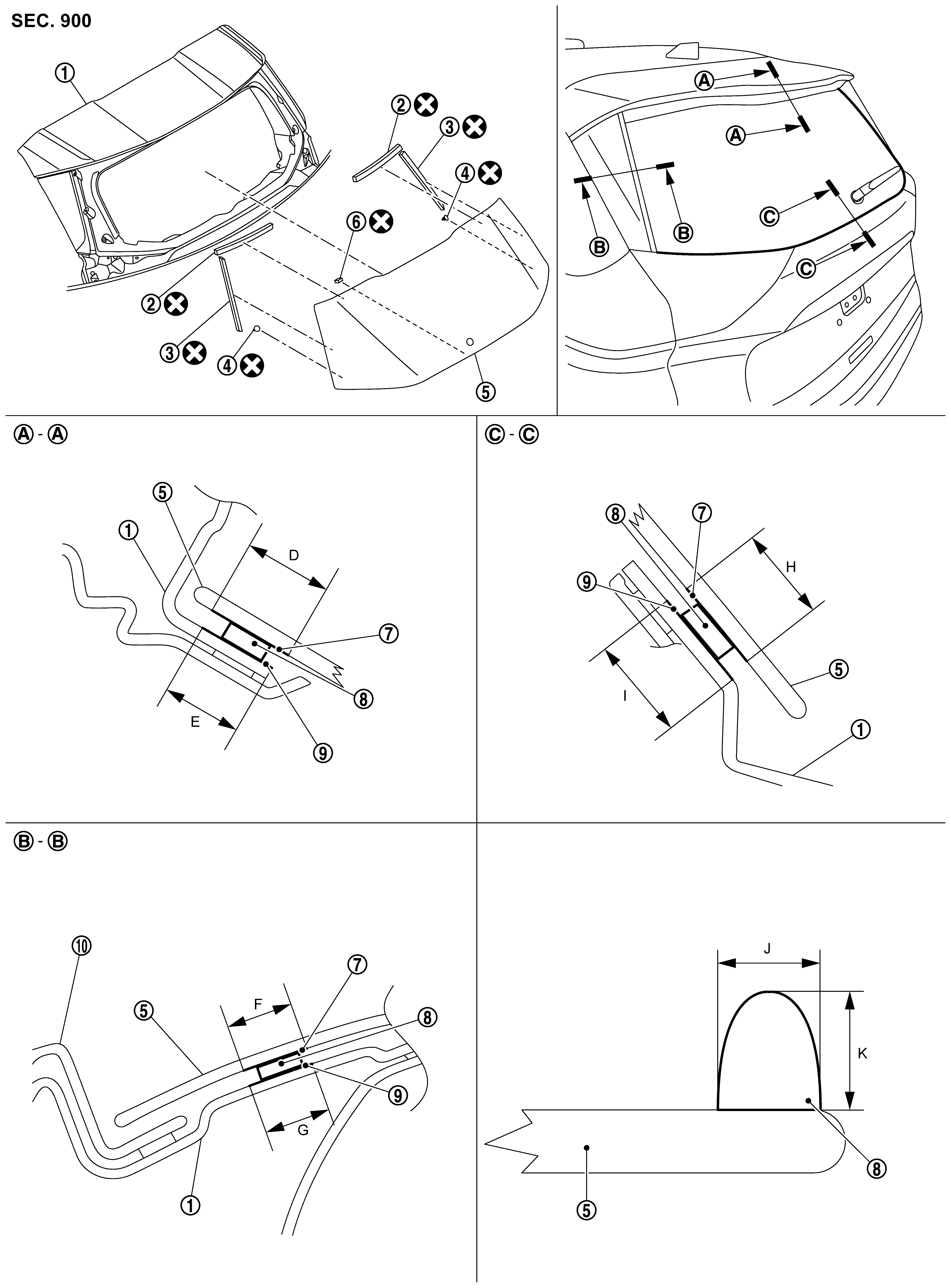

Exploded View
| Back door outer panel | Spacer (upper) | Spacer (middle) | |||
| Clip | Back door window glass | Spacer (lower) | |||
| Glass primer | Adhesive | Painted surface primer | |||
| Rear spoiler | |||||
| : Always replace after every disassembly. | |||||
Unit: mm (in)
| Portion | Primer range | Adhesive range | |||
|---|---|---|---|---|---|
| J | K | ||||
| Back door window glass - Back door outer panel | D | 15. 0 (0. 59) | 8. 0 (0. 31) | 12. 0 (0. 47) | |
| E | 15. 0 (0. 59) | ||||
| F | 15. 0 (0. 59) | 8. 0 (0. 31) | 12. 0 (0. 47) | ||
| G | 15. 0 (0. 59) | ||||
| H | 15. 0 (0. 59) | 8. 0 (0. 31) | 12. 0 (0. 47) | ||
| I | 15. 0 (0. 59) | ||||
