Hood Switch
COMPONENT FUNCTION WITHIN SYSTEM
- Hood switch detects that hood is open, and then transmits hood switch signal to IPDM E/R.
- IPDM E/R transmits hood switch signal to BCM via CAN communication.
- If any door or hood is opened without using Intelligent Key, vehicle security system switches to the ALARM phase. Refer to System Description .
INDIVIDUAL COMPONENT FUNCTION
Hood switch detects that hood is open/close condition.

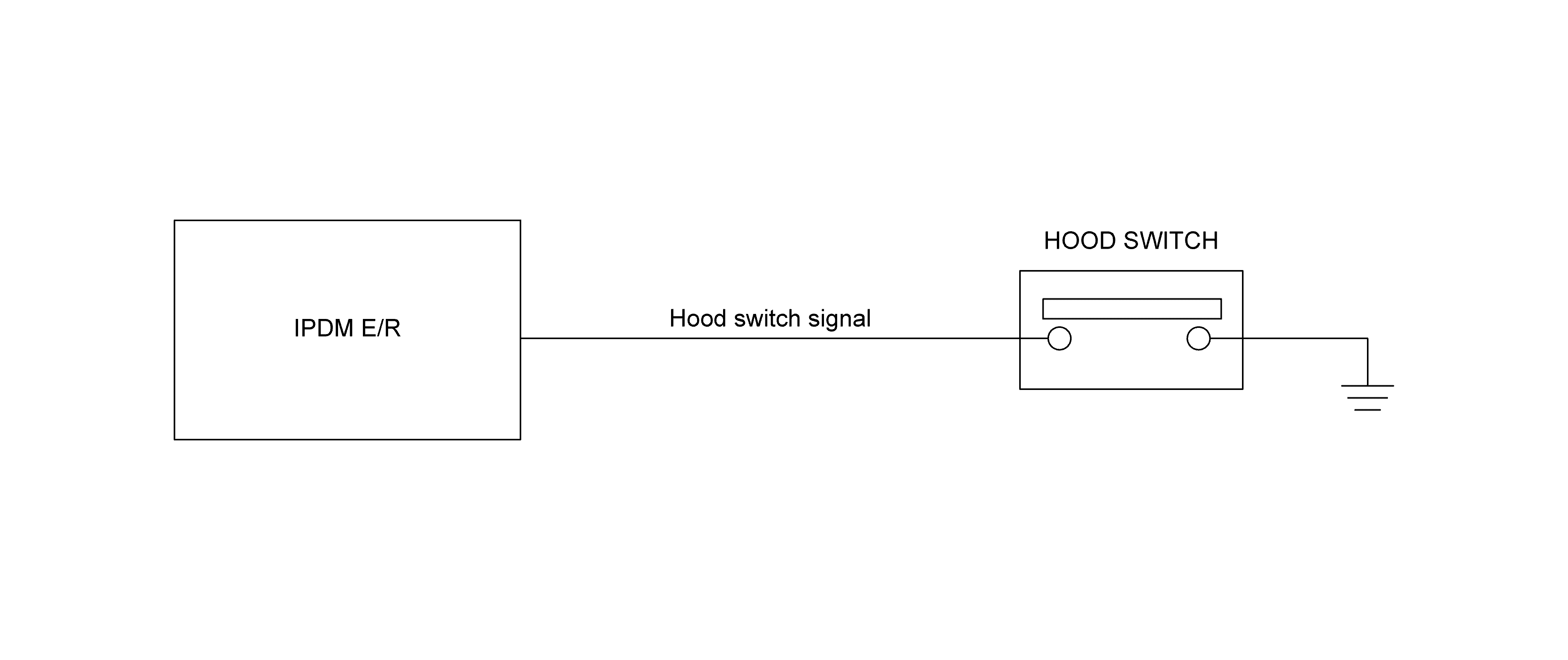

COMPONENT OPERATION
Hood switch is transmits hood switch signal to IPDM E/R.
COMPONENT LOCATION
Hood switch is integrated in hood lock assembly. Refer to Component Location .
