Removal and Installation

REMOVAL

1. Remove center console assembly. Refer to Removal and Installation .
2. Remove around view monitor control unit. Refer to Removal and Installation .

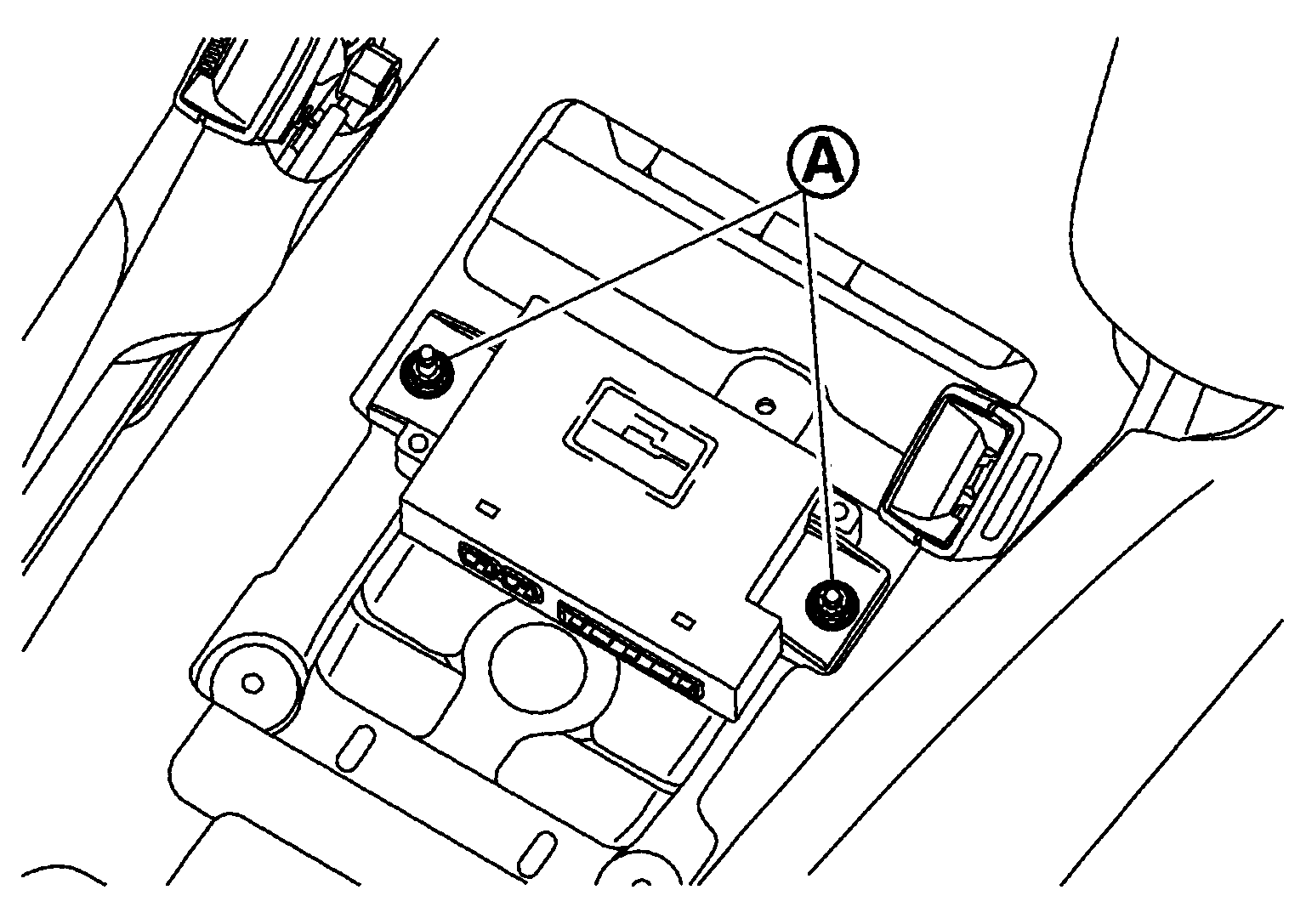

3. Remove ADAS control unit 2 nuts .

   Courtesy of NISSAN

   NOTE: The harness connector is difficult to remove unless removing the ADAS control unit 2 first (The connector lock is located on the lower side).
4. Release the lock as shown by the arrow in the figure below and disconnect the harness connector from the ADAS control unit 2.

   Courtesy of NISSAN

INSTALLATION

Note the following, and install in the reverse order of removal.

• Tighten the ADAS control unit 2 nuts to the specified torque.

Nut : 8 N.m (0.82 kg-m, 71 ft-lb)

Courtesy of NISSAN
