7 Inch Information Display

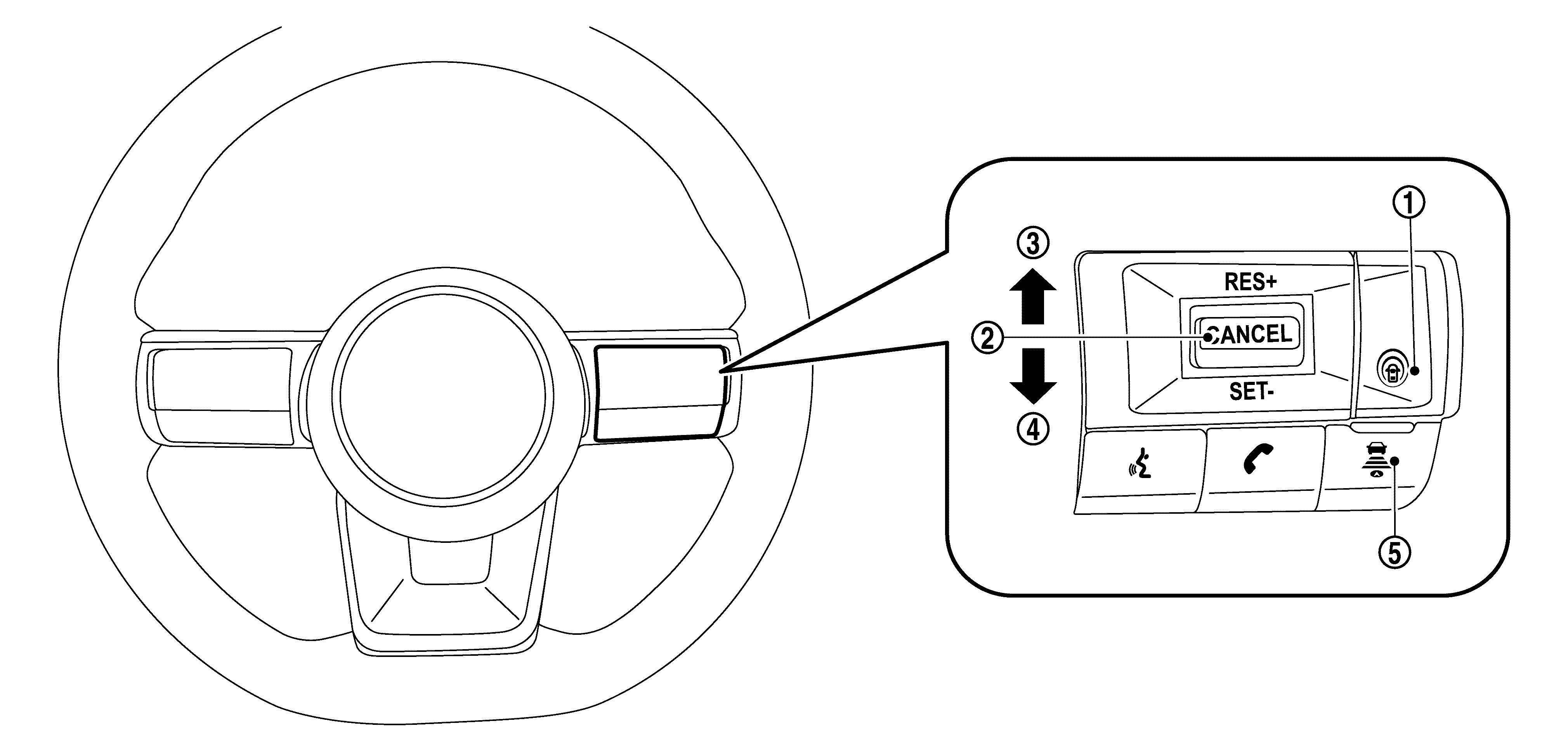

SWITCH NAME AND FUNCTION

GNSDB33728Courtesy of NISSAN
No. Switch name Description
SYMBOL ProPILOT Assist MAIN switch ProPILOT Assist MAIN switch to activate the system (Press for less than 1.5 seconds)
SYMBOL CANCEL switch Pressing the switch cancels ProPILOT Assist control
SYMBOL RES+ switch Resumes set speed or increases speed incrementally
  • Push and hold the switch to increase the set speed by 5 km/h (5 MPH)
  • Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
SYMBOL SET- switch Sets desired cruise speed or reduces speed incrementally
  • Push and hold the switch to decrease the set speed by 5 km/h (5 MPH)
  • Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH)
NOTE: SYMBOL The minimum set speed is 30 km/h (20 MPH)
SYMBOL DISTANCE switch Changes the following distance from: Long, Middle, Short

SYSTEM DISPLAY AND WARNING

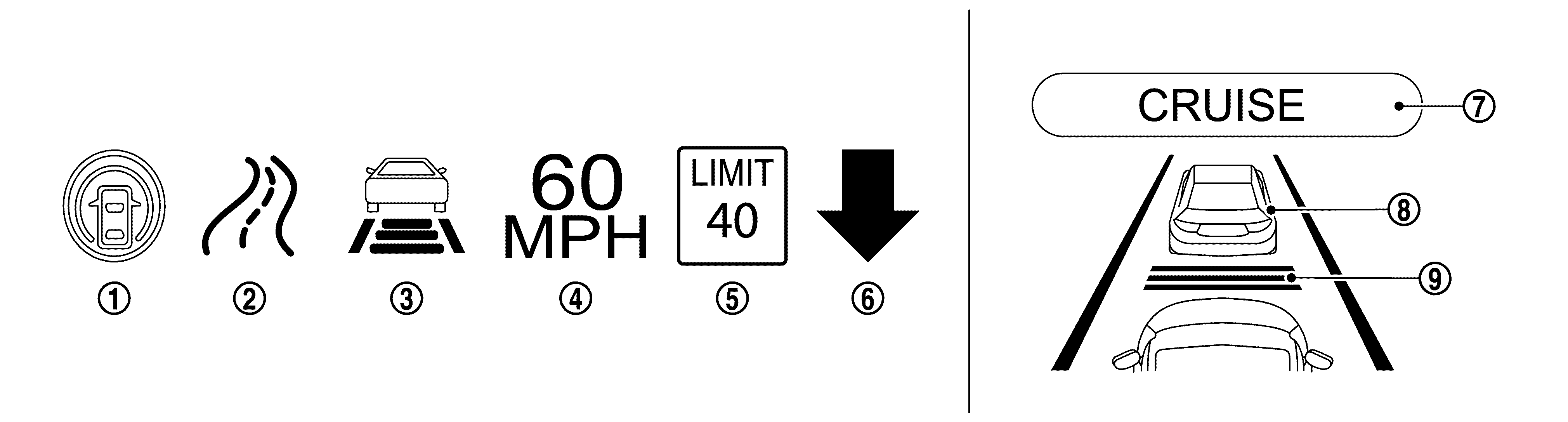

SYSTEM DISPLAY

GNSDB34937Courtesy of NISSAN
No. Switch name Description
SYMBOL ProPILOT Assist status indicator Indicates the status of ProPILOT Assist system
SYMBOL Road information indicator Indicates when the system adjusts the speed depending on turns or exits
SYMBOL Speed control status indicator/warning The vehicle speed control status is indicated by different colors and shapes
SYMBOL Set vehicle speed indicator
  • Indicates the set vehicle speed
  • Indicates 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH)
SYMBOL Detected speed limit sign indicator
  • Indicates the currently detected speed limit sign
  • Refer to Operation
SYMBOL Speed Limit Assist indicator Indicates the Speed Limit Assist activation mode or system operation
SYMBOL ProPILOT Assist activation Indicates once the ProPILOT Assist system is activated
SYMBOL Vehicle ahead detection indicator Indicates whether it detects a vehicle ahead
SYMBOL Set distance indicator Indicates the selected distance between vehicles set with the DISTANCE switch

SYSTEM CONTROL CONDITION DISPLAY

Quickly push (less than 1.5 seconds) and release the ProPILOT Assist MAIN switch ON.

Condition Display on information display

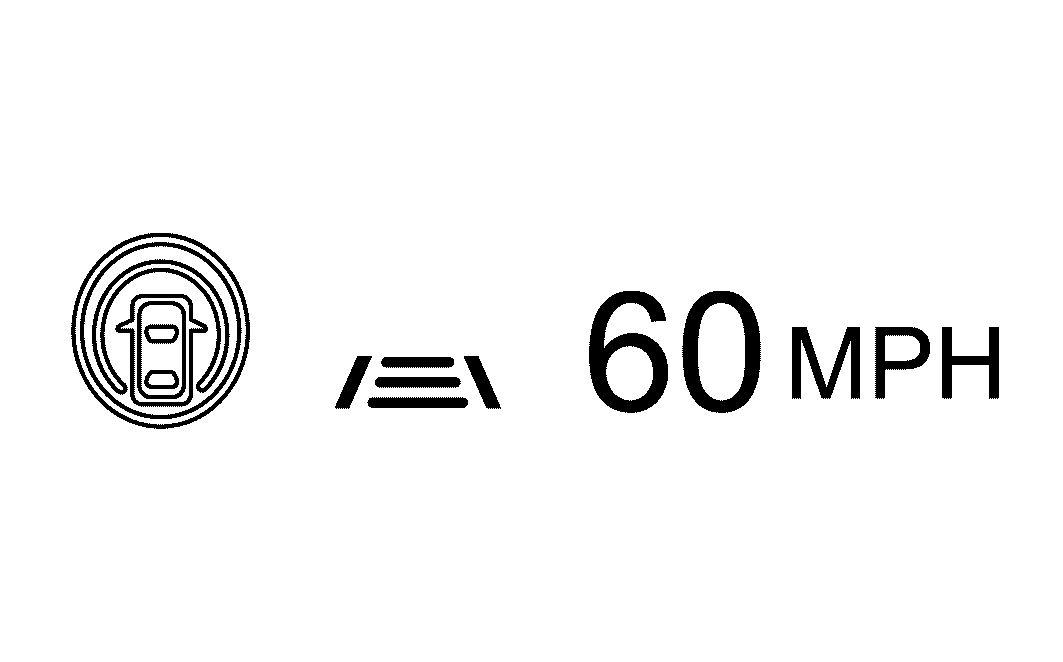

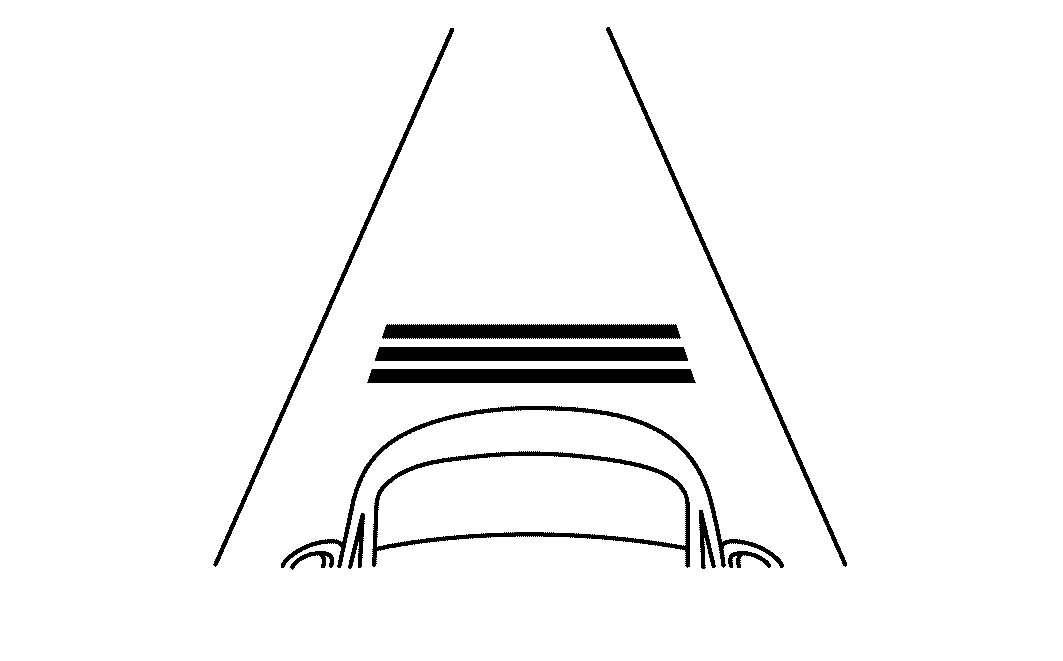

Standby mode ProPILOT Assist status indicator: Gray - Speed control status indicator/warning: Gray - Set vehicle speed indicator: Gray
GNSDB36236Courtesy of NISSAN
White
GNSDB35492Courtesy of NISSAN
Control mode Without a vehicle ahead Set vehicle distance (Long) ProPILOT Assist status indicator: Green - Speed control status indicator/warning: Green - Set vehicle speed indicator: Green
GNSDB36236Courtesy of NISSAN
Green
GNSDB35492Courtesy of NISSAN

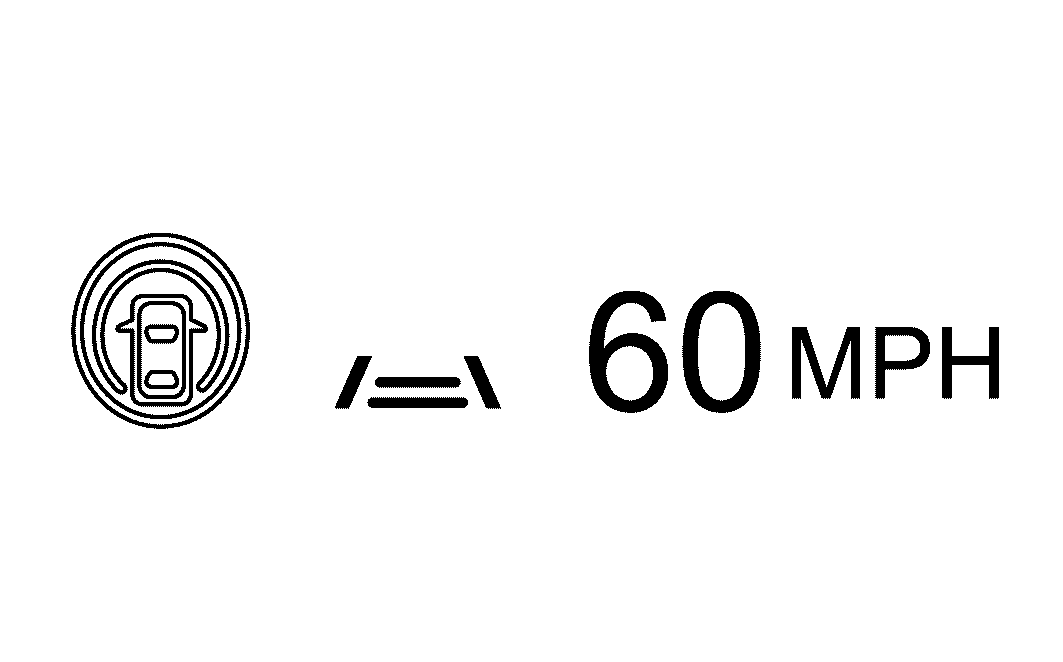

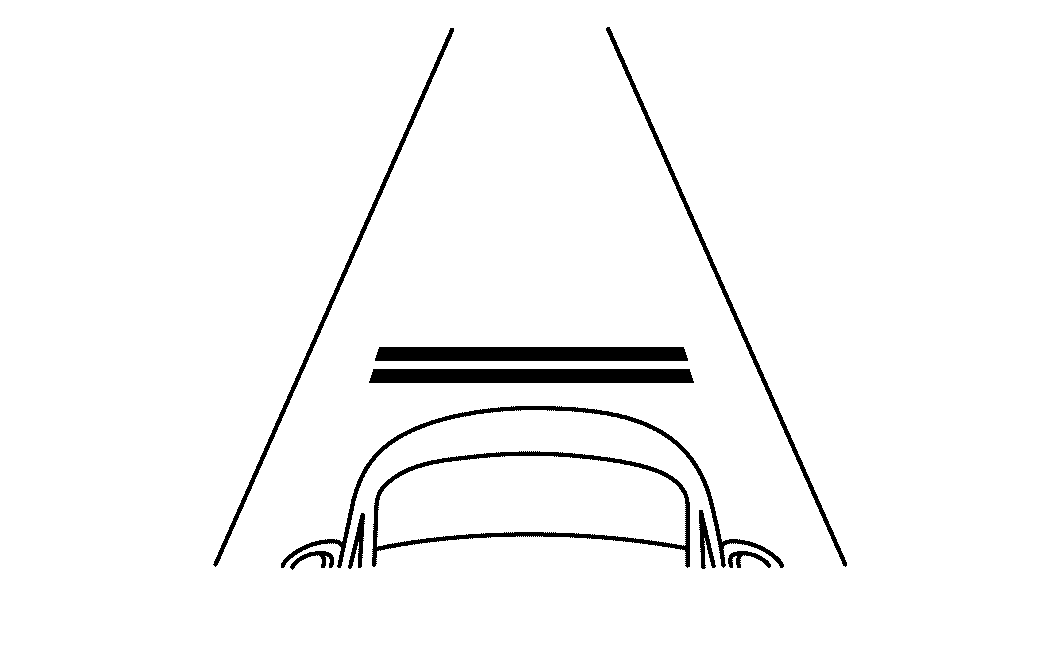

Set vehicle distance (Middle) ProPILOT Assist status indicator: Green - Speed control status indicator/warning: Green - Set vehicle speed indicator: Green
GNSDB34337Courtesy of NISSAN
Green
GNSDB34409Courtesy of NISSAN

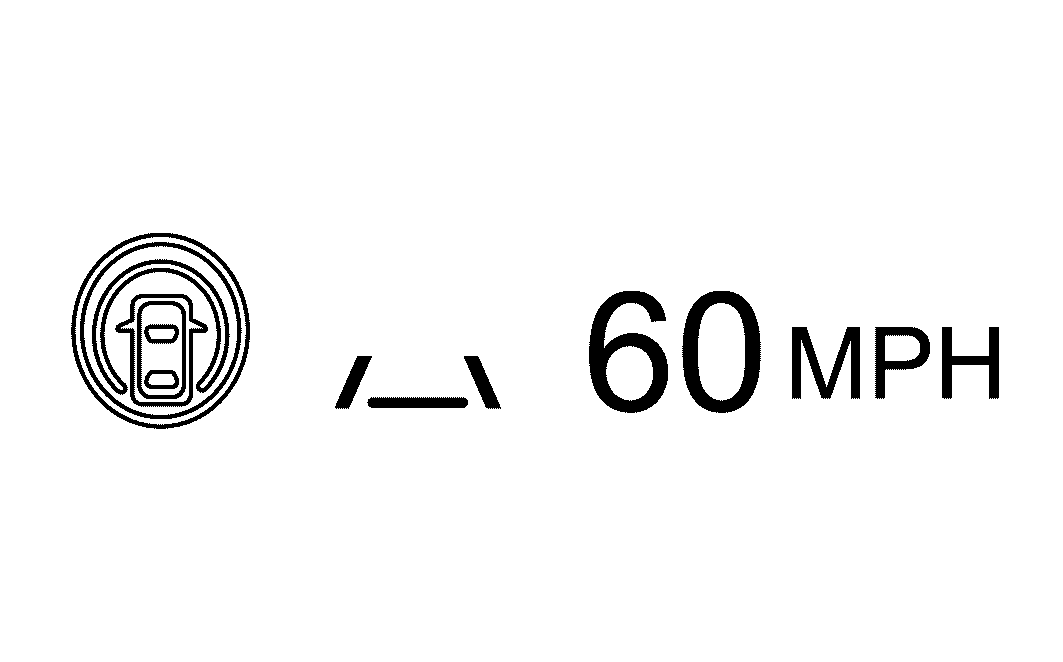

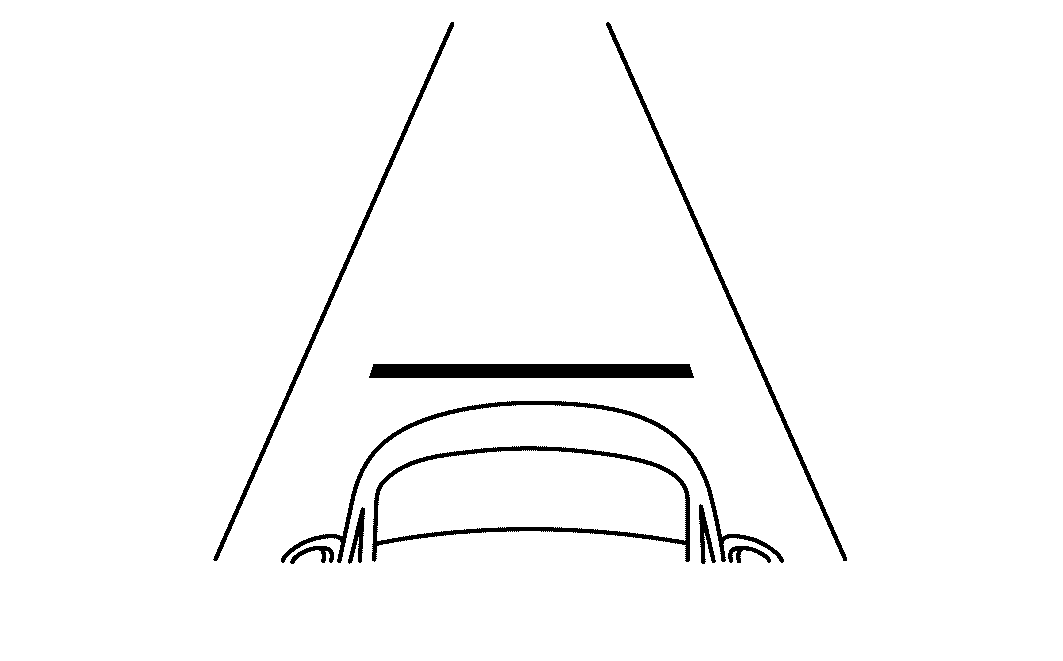

Set vehicle distance (Short) ProPILOT Assist status indicator: Green - Speed control status indicator/warning: Green - Set vehicle speed indicator: Green
GNSDB34280Courtesy of NISSAN
Green
GNSDB36491Courtesy of NISSAN

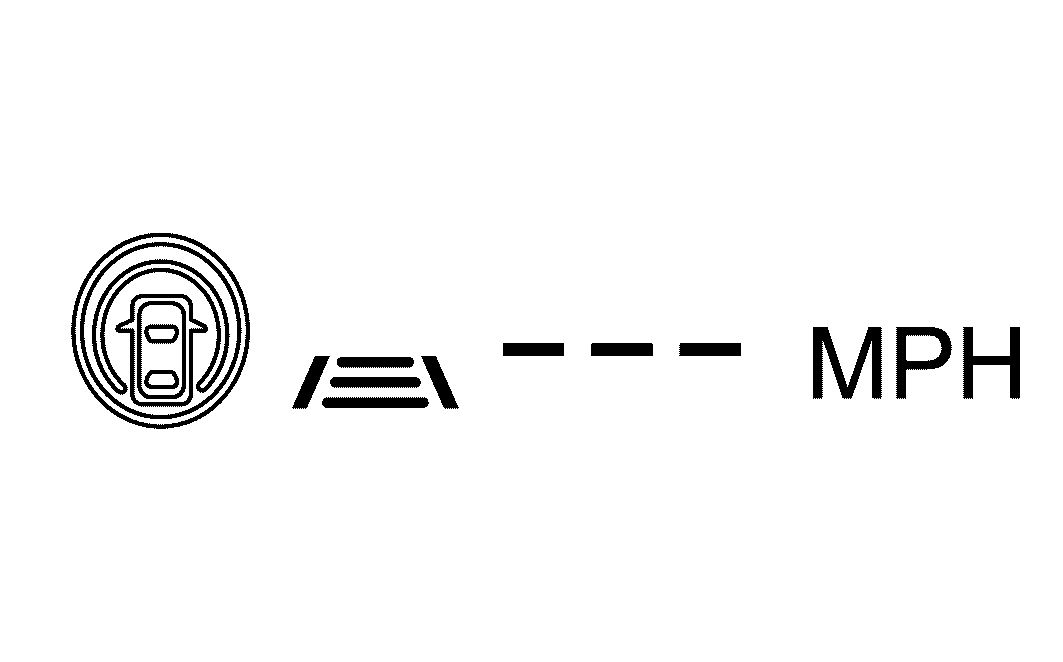

When the vehicle speed exceeds the set speed ProPILOT Assist status indicator: Green - Speed control status indicator/warning: Green - Set vehicle speed indicator: Green (Blink)
GNSDB36207Courtesy of NISSAN

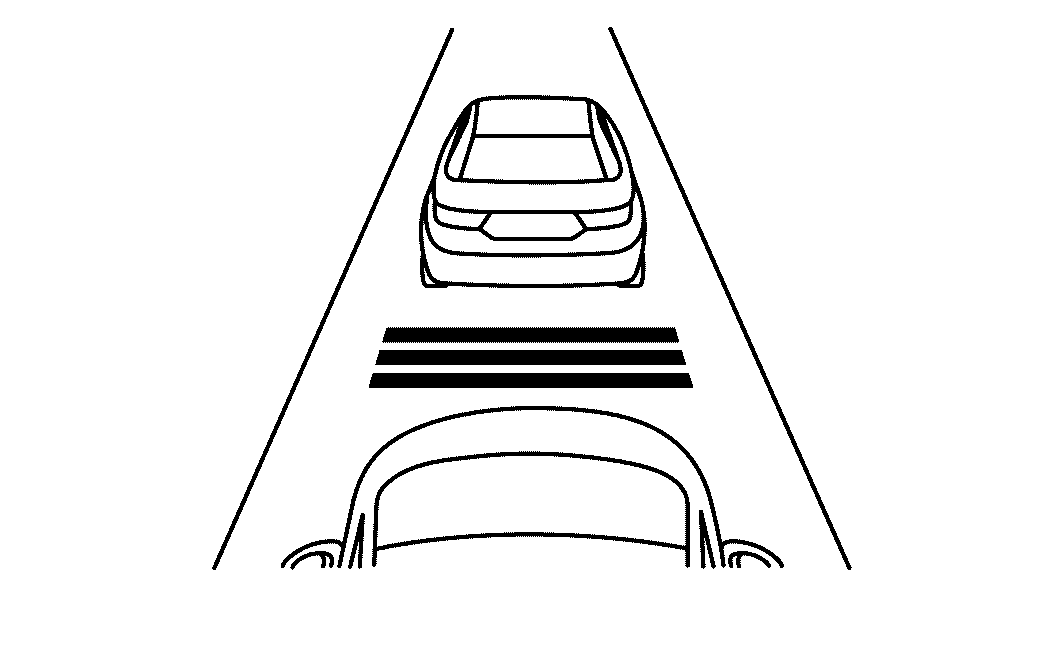

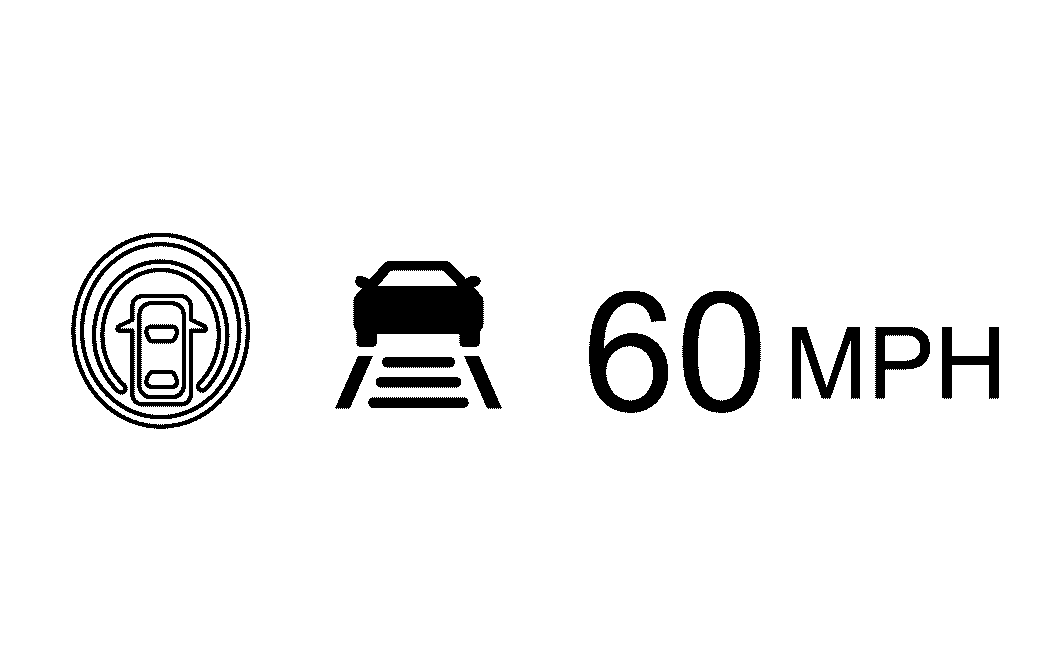

Control mode With a vehicle ahead Set vehicle distance (Long) ProPILOT Assist status indicator: Green - Speed control status indicator/warning: Green - Set vehicle speed indicator: Green
GNSDB33245Courtesy of NISSAN
Green
GNSDB37180Courtesy of NISSAN

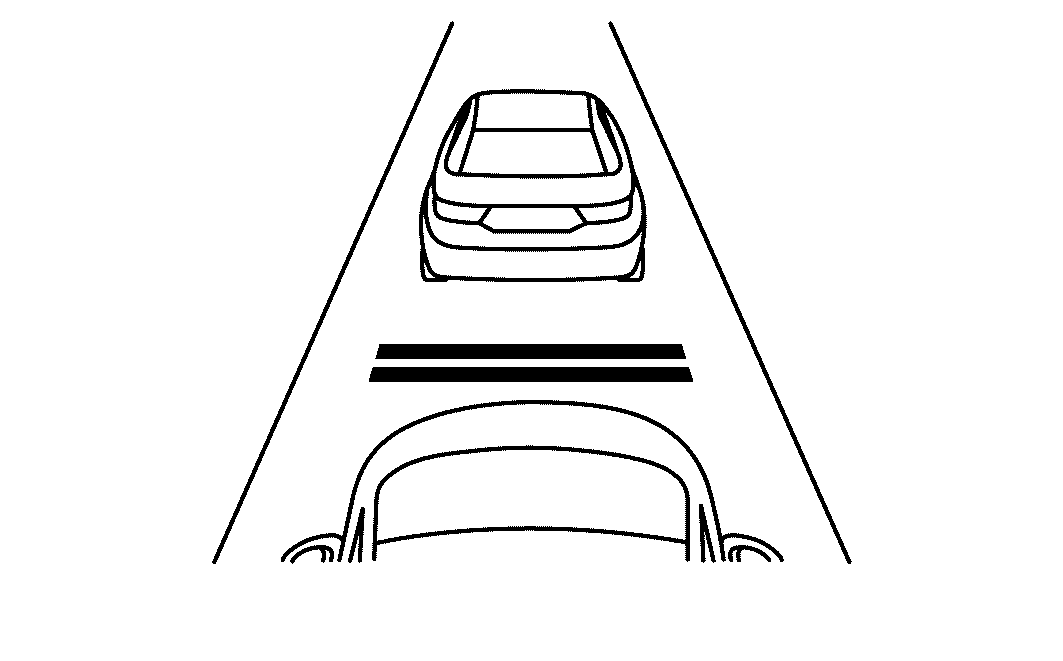

Set vehicle distance (Middle) ProPILOT Assist status indicator: Green - Speed control status indicator/warning: Green - Set vehicle speed indicator: Green
GNSDB33646Courtesy of NISSAN
Green
GNSDB36799Courtesy of NISSAN

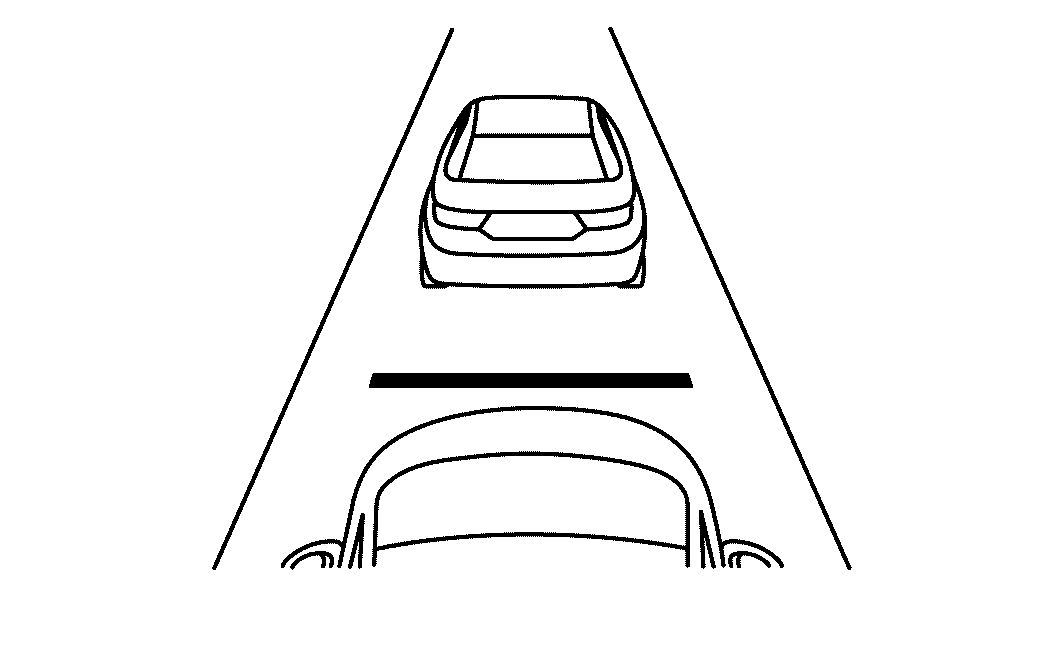

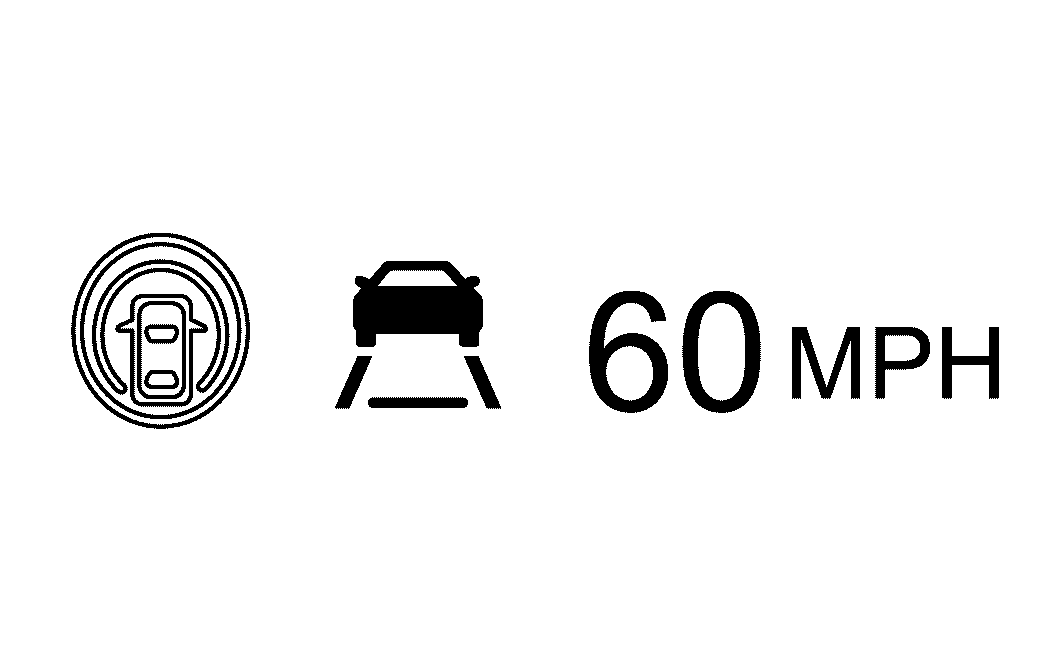

Set vehicle distance (Short) ProPILOT Assist status indicator: Green - Speed control status indicator/warning: Green - Set vehicle speed indicator: Green
GNSDB34067Courtesy of NISSAN
Green
GNSDB37055Courtesy of NISSAN

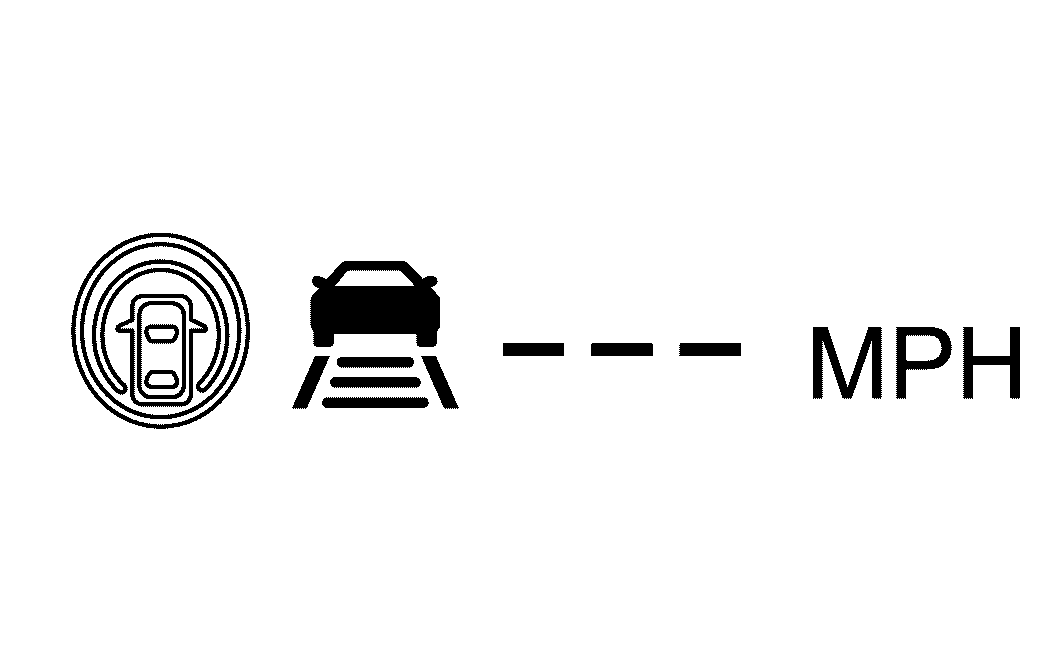

When the vehicle speed exceeds the set speed ProPILOT Assist status indicator: Green - Speed control status indicator/warning: Green - Set vehicle speed indicator: Green (Blink)
GNSDB33089Courtesy of NISSAN

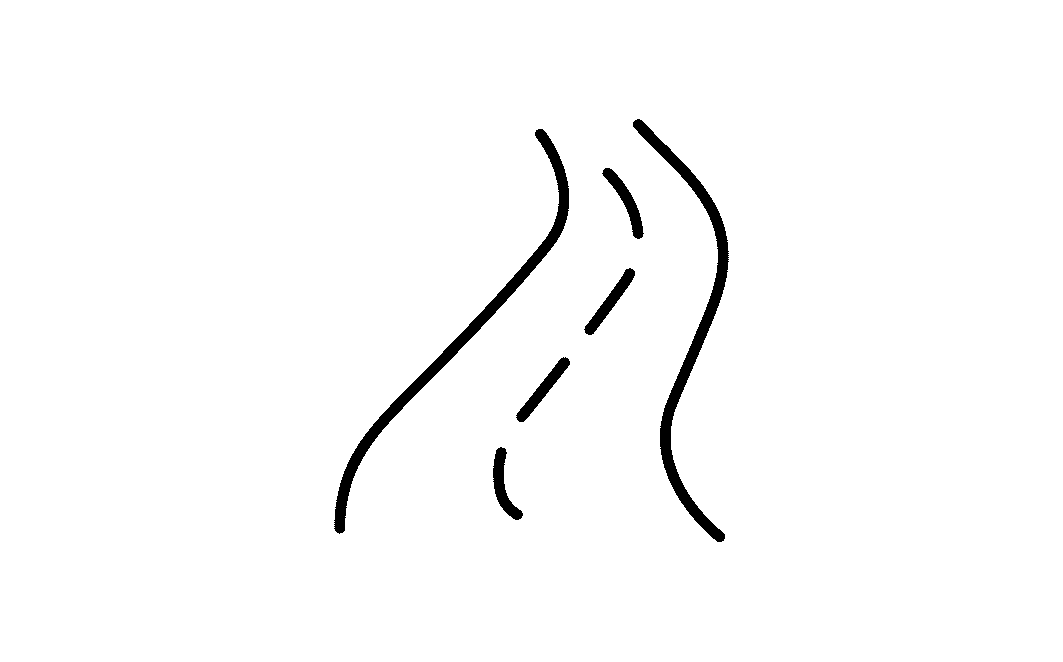

When the system adjusts the speed depending on turns or exits
GNSDB35866Courtesy of NISSAN

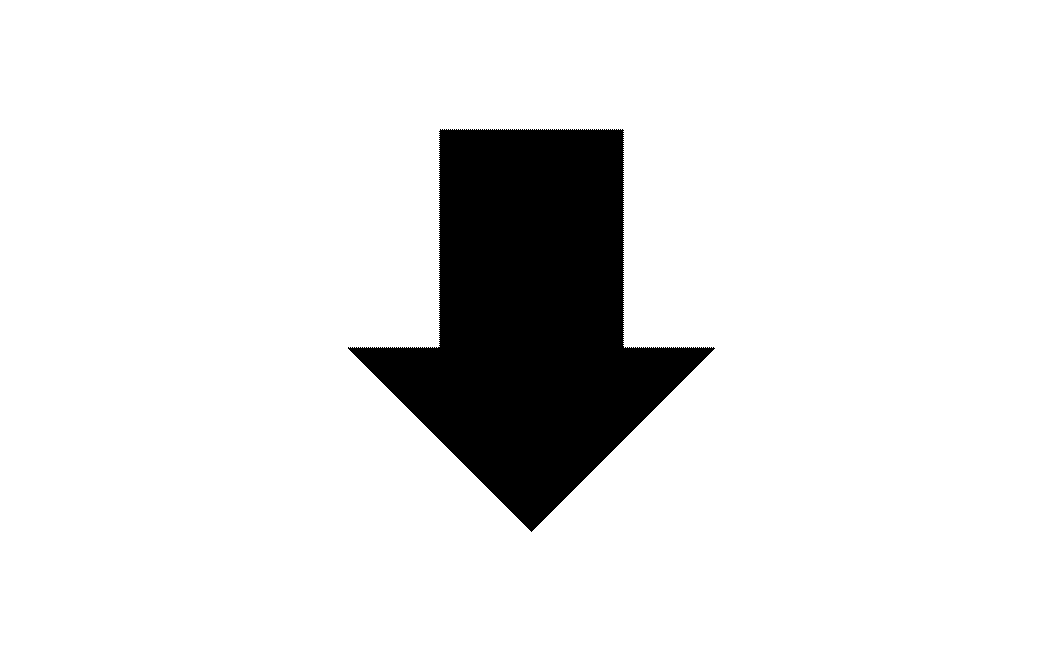

When the system detects a change of the speed limit and the new speed limit sign is applied to the vehicle set speed automatically
GNSDB34881Courtesy of NISSAN

APPROACH WARNING DISPLAY

If own vehicle comes closer to a vehicle ahead due to rapid deceleration of that vehicle or if another vehicle cuts in, the system warns the driver with the chime and ProPILOT Assist system display. Decelerate by depressing the brake pedal to maintain a safe vehicle distance if:

The warning chime may not sound in some cases when there is a short distance between vehicles. Some examples are:

The warning chime will not sound when own vehicle approaches vehicles that are parked or moving slowly. The warning chime will not sound when the accelerator pedal is depressed, overriding the system. The approach warning chime may sound and the system display may blink when the distance sensor detects some reflectors which are fitted on vehicles in other lanes or on the side of the road. This may cause the ProPILOT Assist system to decelerate or accelerate the vehicle. The distance sensor may detect these objects when the vehicle is driven on winding roads, hilly roads or when entering or exiting a curve. The distance sensor may also detect reflectors on narrow roads or in road construction zones. In these cases, driver will have to manually control the proper distance ahead of own vehicle. Also, the sensor sensitivity can be affected by vehicle operation (steering maneuver or driving position in the lane) or traffic or vehicle condition (for example, if a vehicle is being driven with some damage).

Condition Display on information display

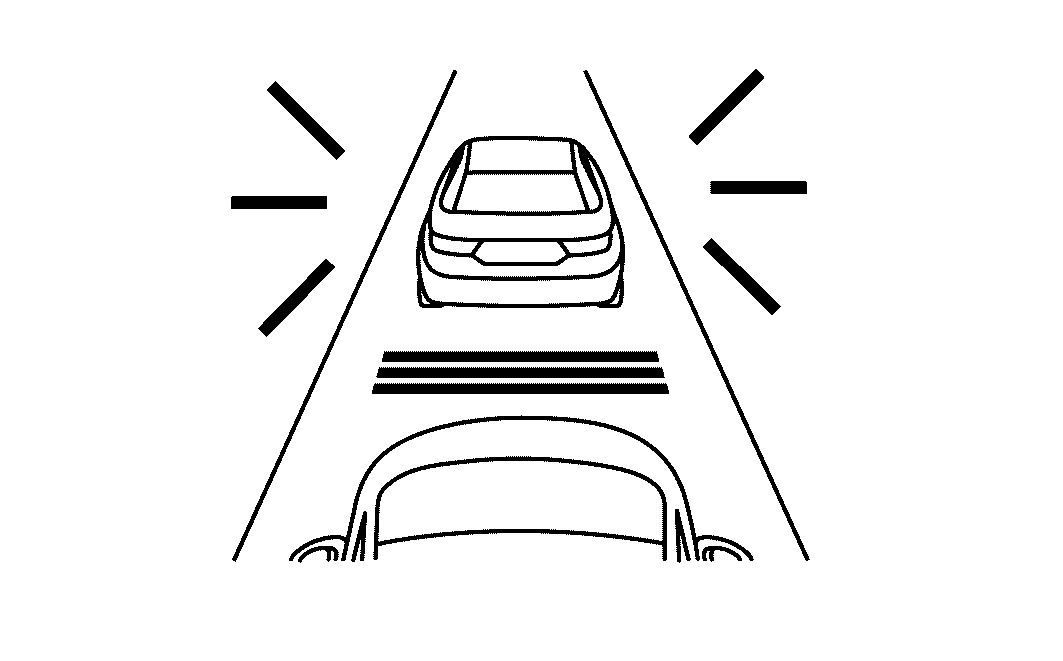

When own vehicle comes closer to the vehicle ahead and it is judged that the distance between the vehicles is not sufficient Vehicle ahead detection indicator: Yellow (Blink)
GNSDB34722Courtesy of NISSAN

WARNING LAMP AND AUTOMATIC CANCELLATION DISPLAY

Condition Description Display on information display
  • When the VDC is turned OFF
  • When the SNOW mode or OFF-ROAD mode is selected (AWD models)
 A chime sounds and the control is automatically canceled.
NOTE: SYMBOL When the condition is no longer present, turn the system OFF. Turn the ProPILOT Assist system back on to use the system.
 Currently not available
  • When the VDC or ABS (including the TCS) operates
  • When a wheel slips
 A chime sounds and the control is automatically canceled.
NOTE: SYMBOL When the conditions listed above are no longer present, turn the system OFF. Turn the ProPILOT Assist system back on to use the system.
 Not Available - Poor Road Conditions
  • The front camera unit area of the windshield is fogged up or covered with dirt, water, drops, ice, snow, etc.
  • Strong light, such as sunlight or high beams from oncoming vehicles, enter the front camera
  • When the wiper (HI) operates
 A chime sounds and the control is automatically canceled.
NOTE: SYMBOL
  • The system will be available when the above conditions no longer exist.
  • If the warning message continues to appear, stop the vehicle in a safe location, turn the engine OFF and clean the windshield glass.
 Not Available - Front CameraObstructed
Parking brake is applied A chime sounds and the control is automatically canceled.
NOTE: SYMBOL After releasing the parking brake, turn the system OFF. Turn the ProPILOT Assist system back on to use the system.
 Not Available - Parking Brake On
When the driver's seat belt is not fastened A chime sounds and the control is automatically canceled.
NOTE: SYMBOL After fastened the seat belt, turn the system OFF. Turn the ProPILOT Assist system back on to use the system.
 Not Available - Seat Belt Not Fastened
When the distance sensor is dirty, making it impossible to detect a vehicle ahead A chime sounds and the control is automatically canceled.
NOTE: SYMBOL
  • Park the vehicle in a safe place, turn the engine OFF.
  • Check to see if the distance sensor area of the front grille is blocked.
  • If the distance sensor area of the front grille is blocked, remove the blocking material.
  • Restart the engine and then perform the ProPILOT Assist system again.
 Forward Driving Aids temporarily disabled. Front Sensor blocked. See Owner's Manual
While the vehicle is stopped by the ProPILOT Assist, the driver's door is opened but the electronic parking brake was not activated A chime sounds and the control is automatically canceled.
NOTE: SYMBOL Please step on the brake immediately
 Press Brake pedal
When the system is malfunctioning A chime sounds and the control is automatically canceled.
NOTE: SYMBOL
  • Stop the vehicle in a safe place.
  • Turn the engine OFF, restart the engine and set the ProPILOT Assist system again
  • If it is not possible to set the ProPILOT Assist system or the indicator stays on, it may be a malfunction.
 Not Available - System Malfunction
