Full TFT Meter

SWITCH NAME AND FUNCTION

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description
	ProPILOT Assist MAIN switch	ProPILOT Assist MAIN switch to activate the system (Press for less than 1.5 seconds)
	CANCEL switch	Pressing the switch cancels ProPILOT Assist control
	RES+ switch	Resumes set speed or increases speed incrementally Push and hold the switch to increase the set speed by 5 km/h (5 MPH) Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
	SET- switch	Sets desired cruise speed or reduces speed incrementally Push and hold the switch to decrease the set speed by 5 km/h (5 MPH) Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH) NOTE: The minimum set speed is 30 km/h (20 MPH)
	DISTANCE switch	Changes the following distance from: Long, Middle, Short

SYSTEM DISPLAY AND WARNING

SYSTEM DISPLAY

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description

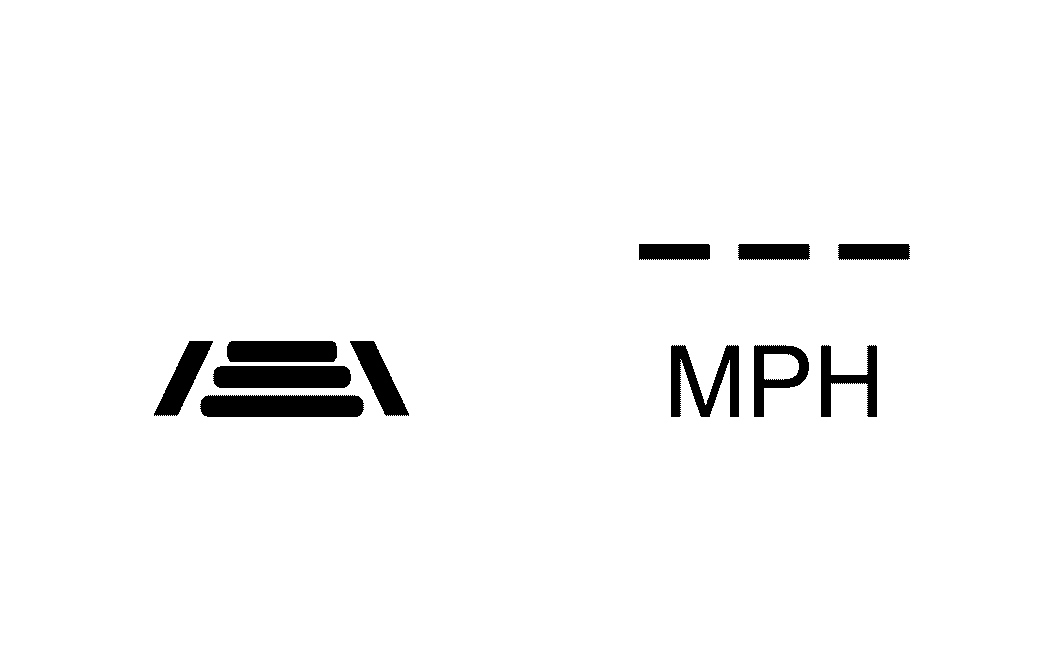

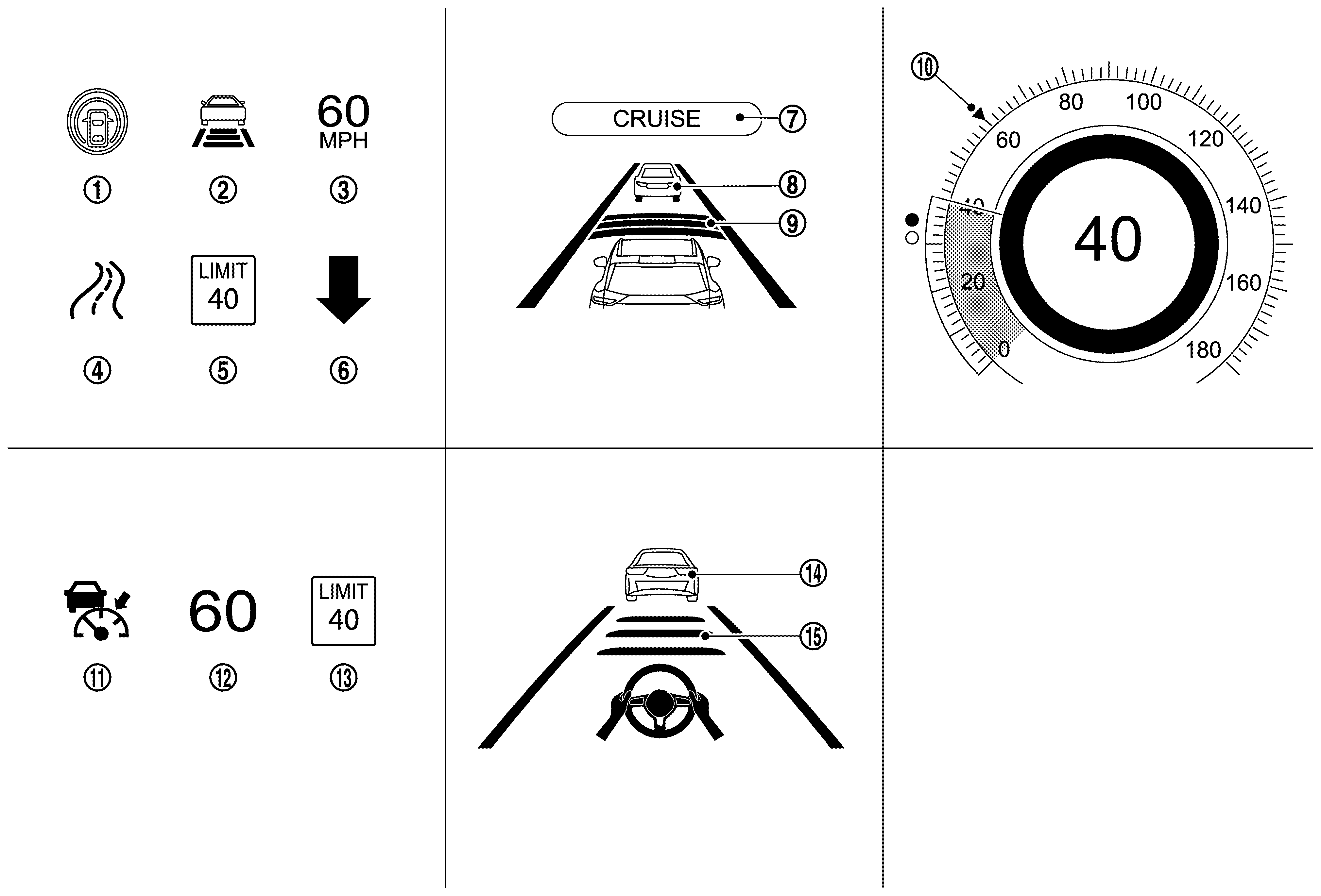

	ProPILOT Assist status indicator	Indicates the status of ProPILOT Assist system

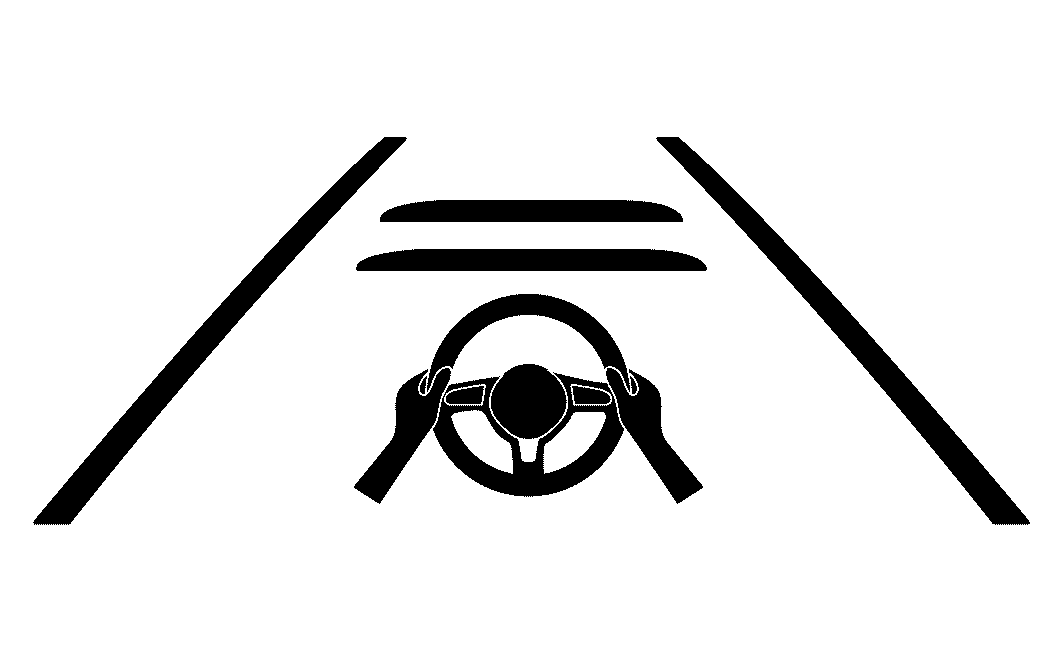

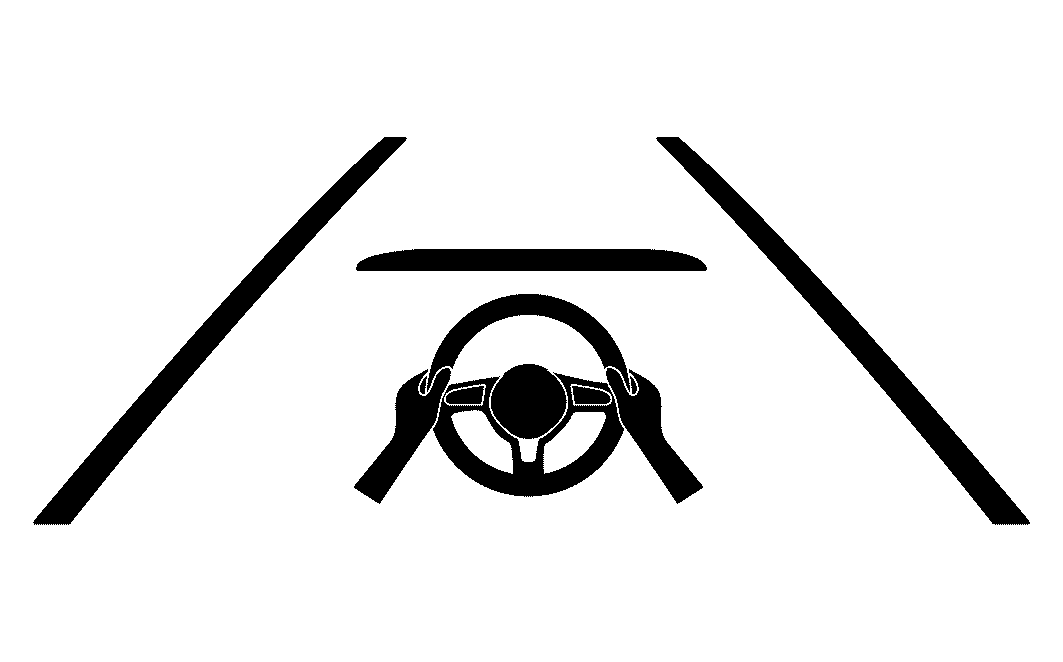

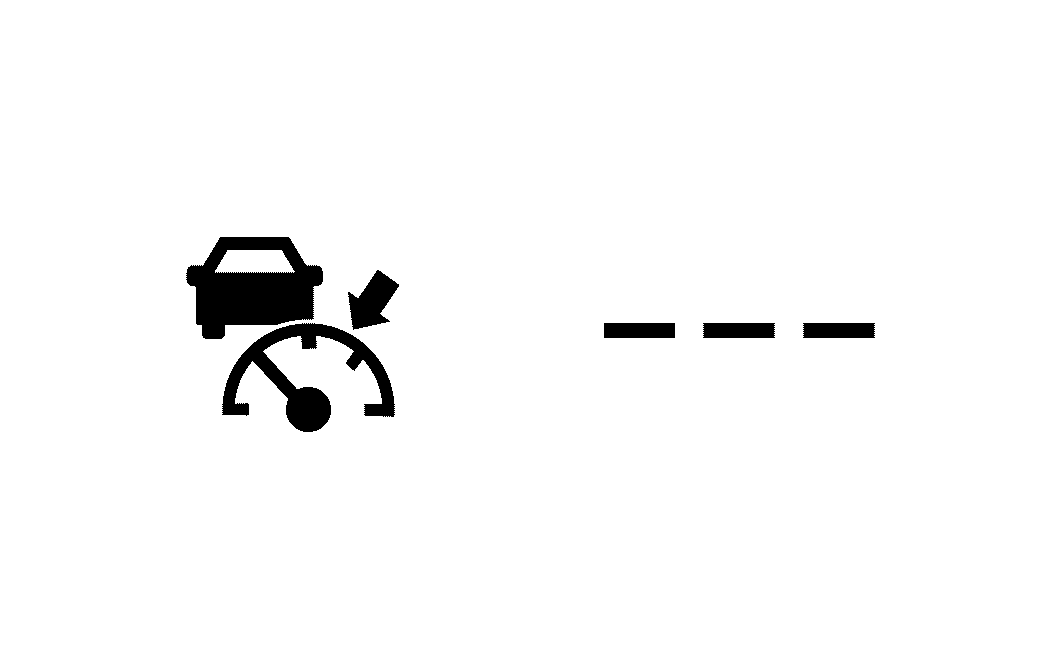

	Speed control status indicator/warning (Information display)	The vehicle speed control status is indicated by different colors and shapes

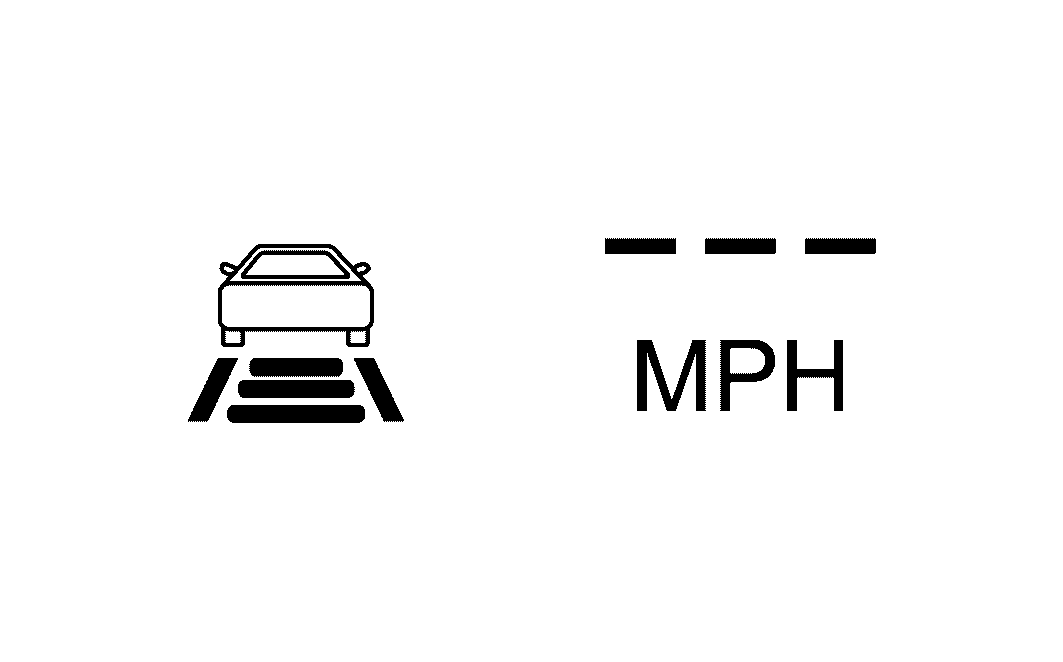

	Set vehicle speed indicator (Information display)	Indicates the set vehicle speed Indicates 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH)
	Road information indicator (Information display)	Indicates when the system adjusts the speed depending on turns or exits
	Detected speed limit sign indicator (Information display)	Indicates the currently detected speed limit sign Refer to Operation
	Speed Limit Assist indicator	Indicates the Speed Limit Assist activation mode or system operation

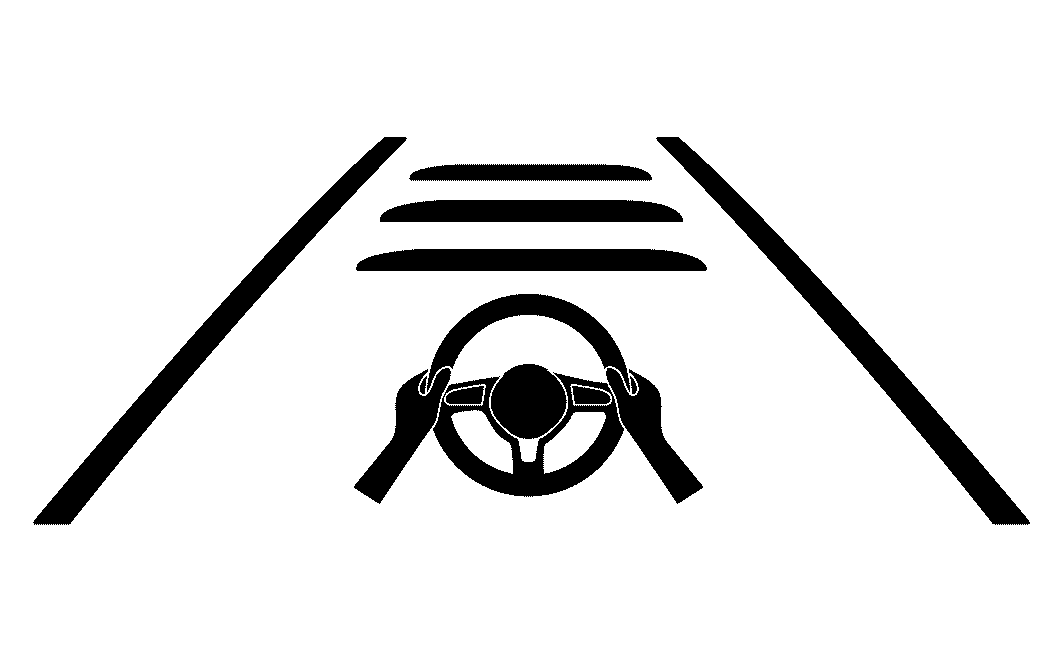

	ProPILOT Assist activation	Indicates once the ProPILOT Assist system is activated

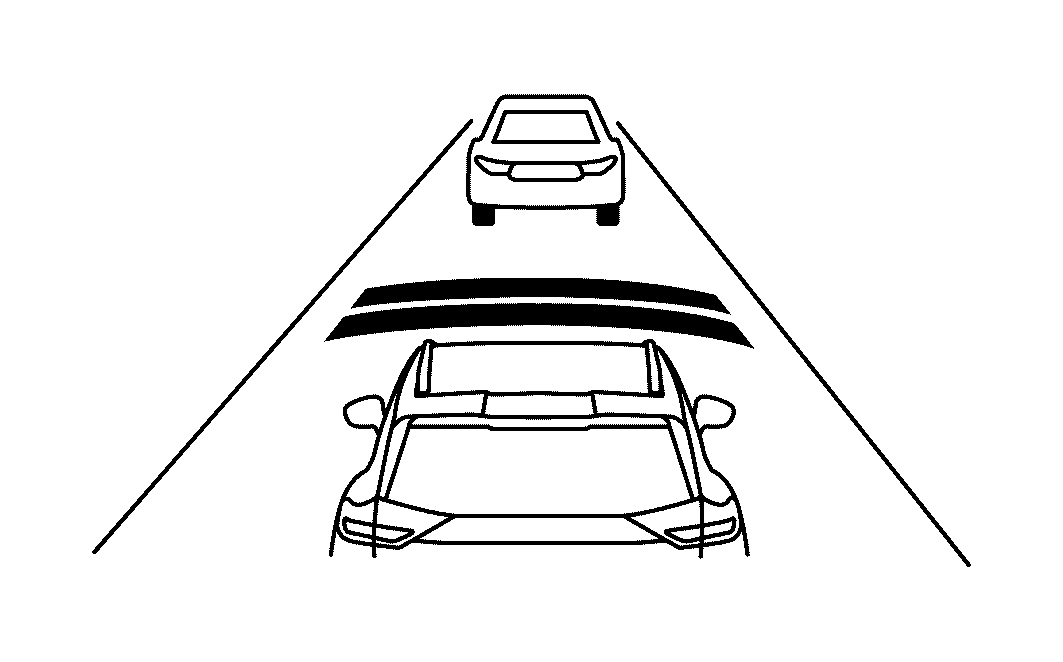

	Vehicle ahead detection indicator (Information display)	Indicates whether it detects a vehicle ahead

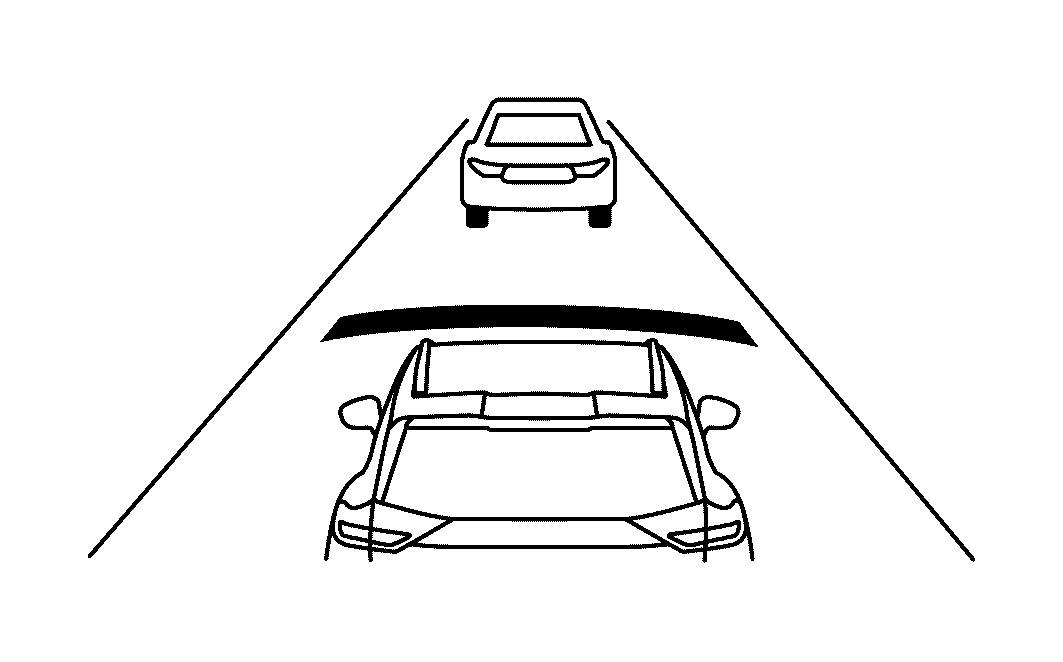

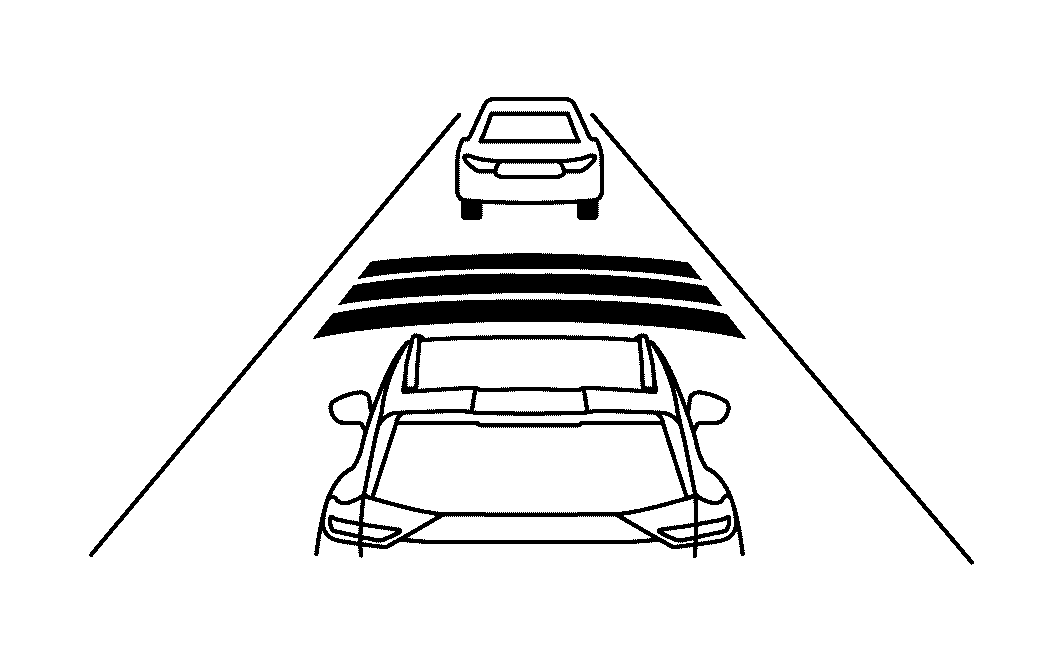

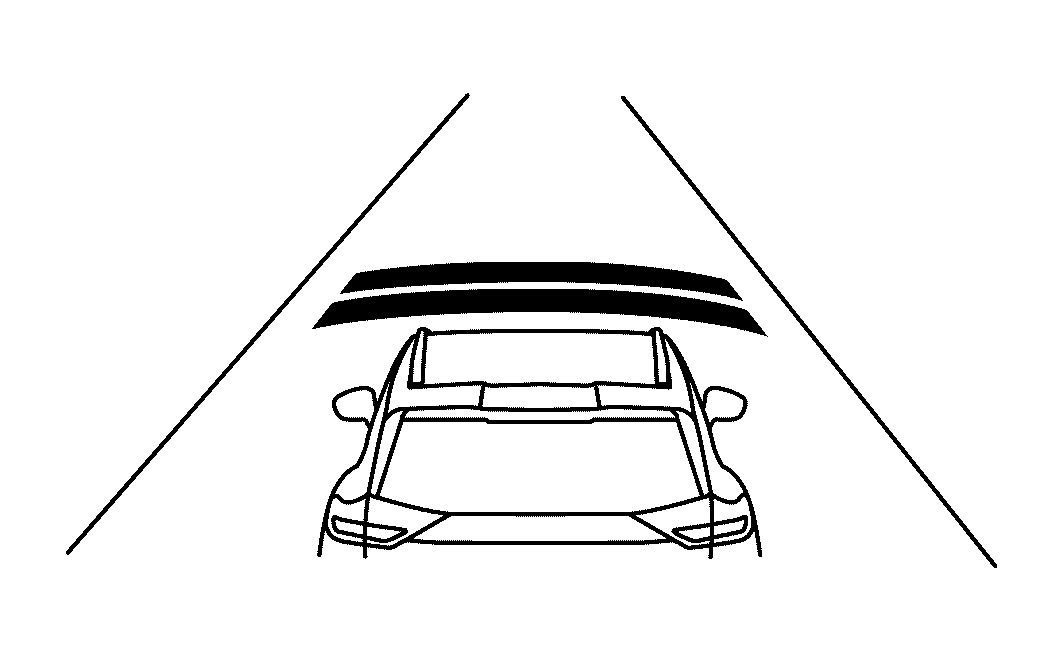

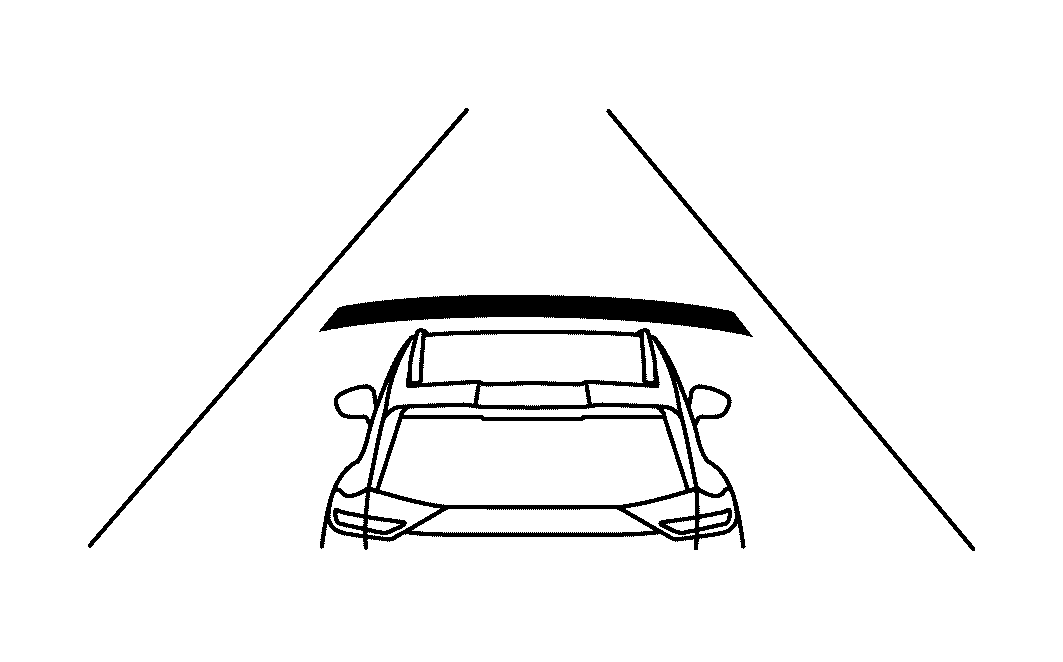

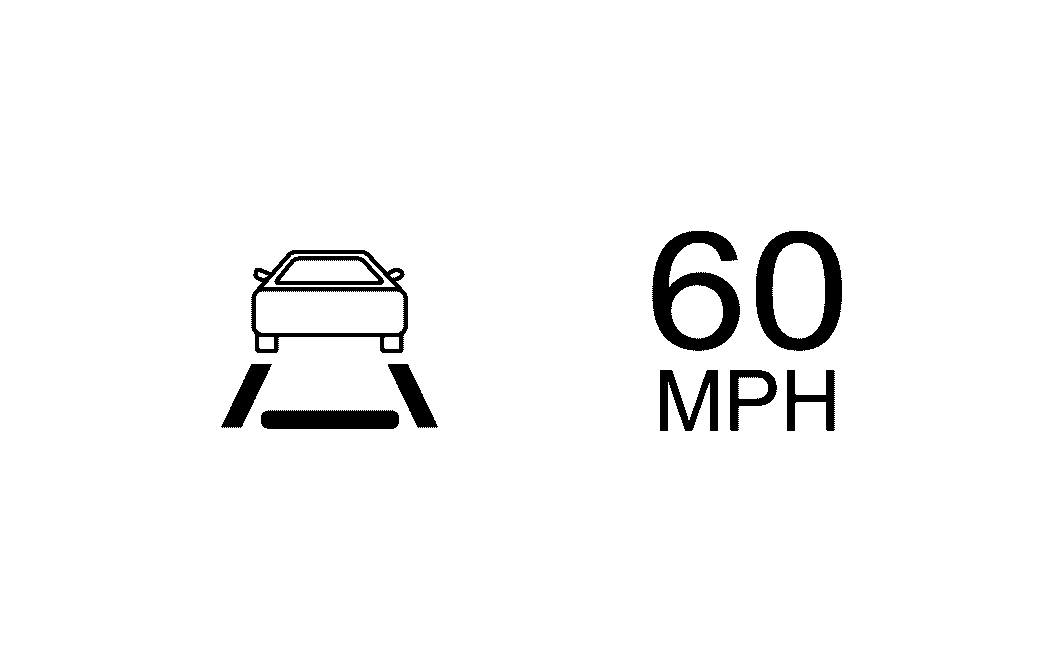

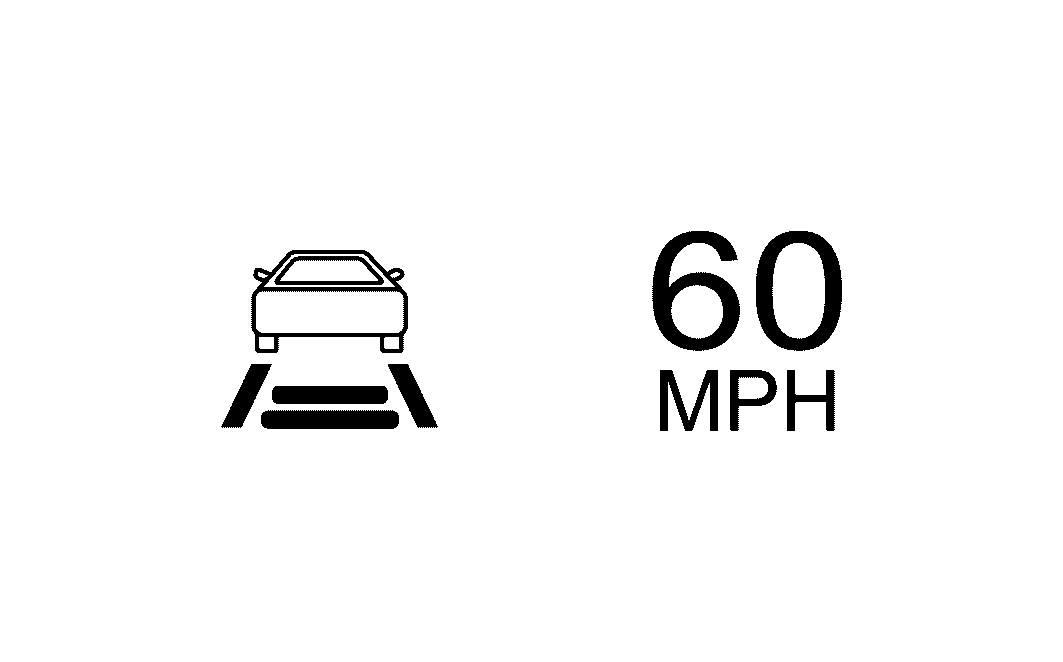

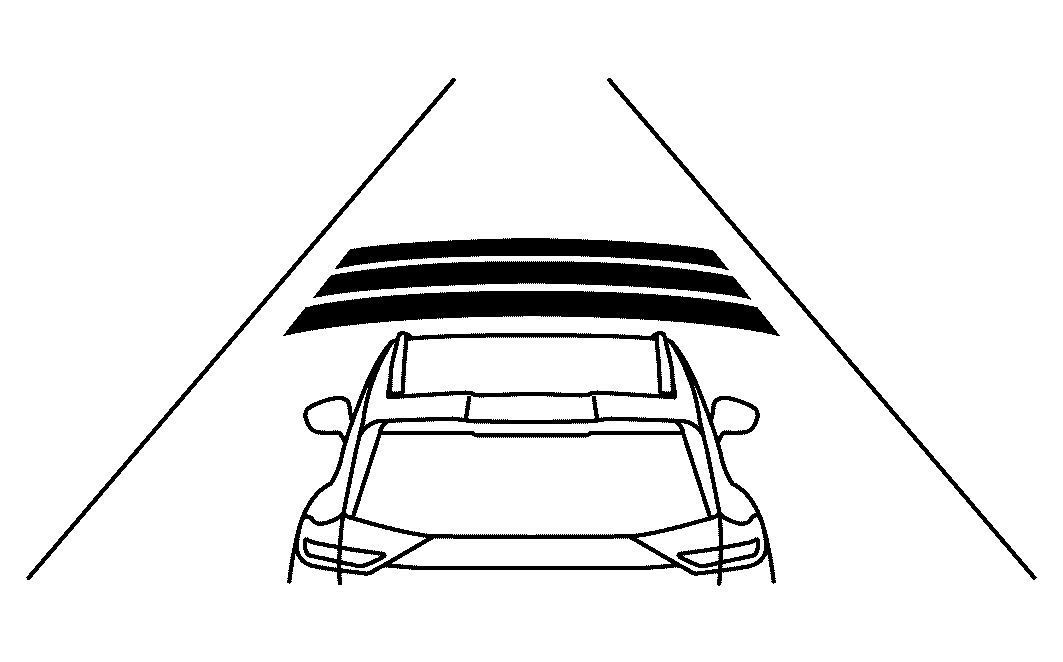

	Set distance indicator (Information display)	Indicates the selected distance between vehicles set with the DISTANCE switch

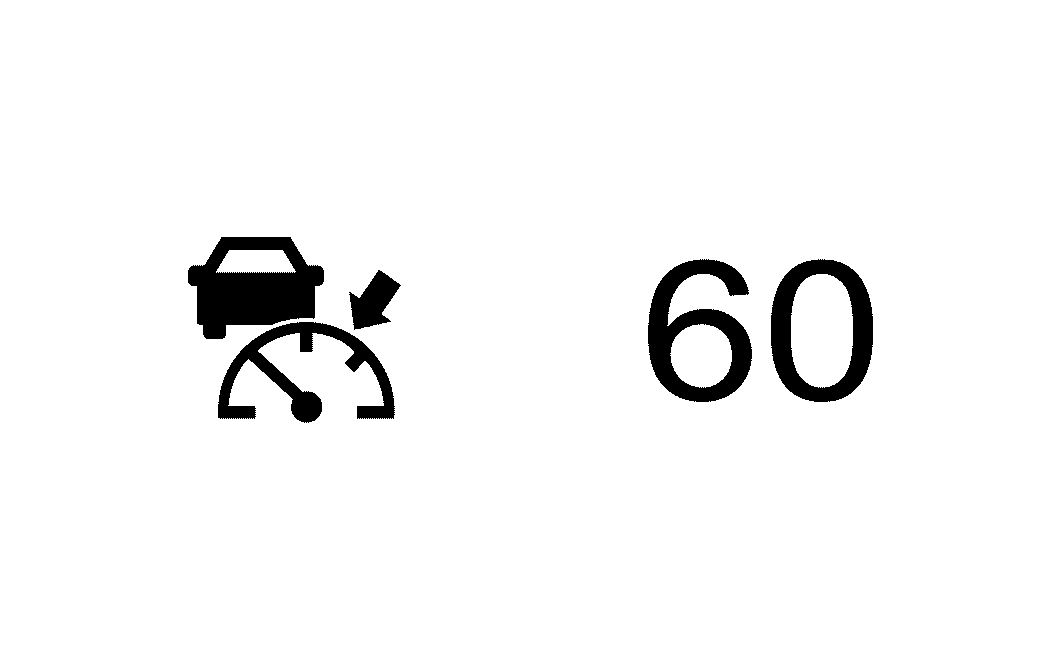

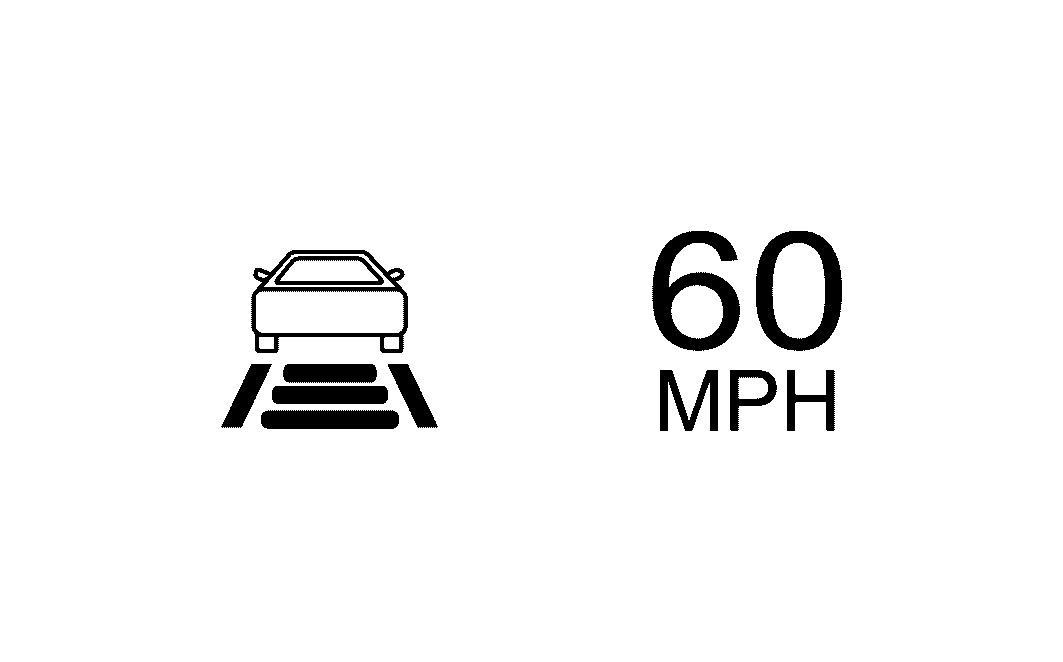

	Vehicle set speed indicator (Information display)	Indicates the vehicle set speed

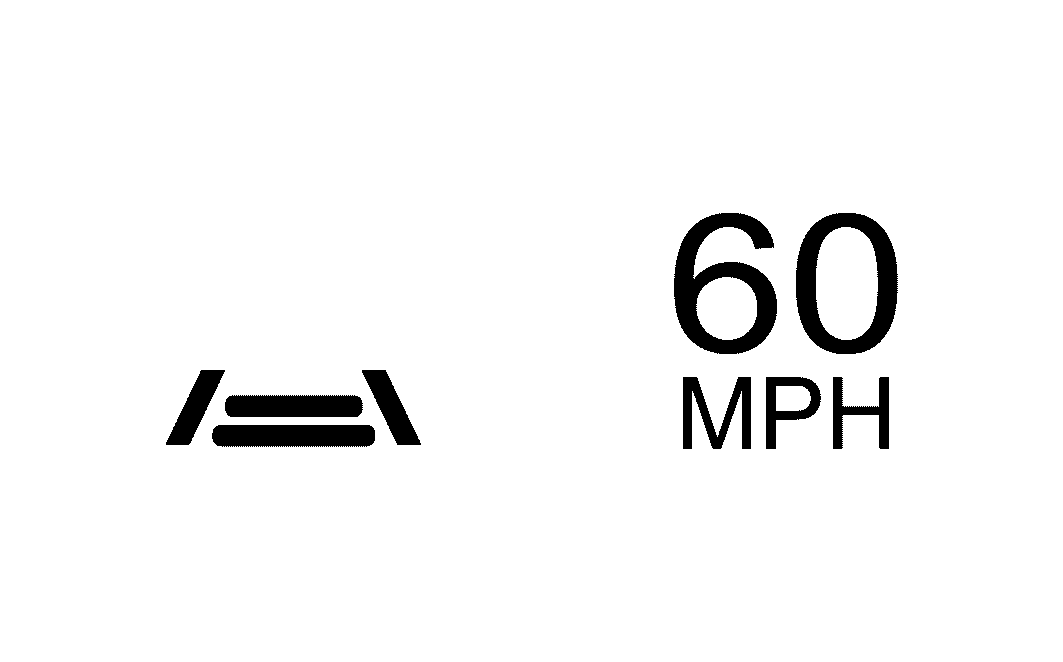

	ProPILOT Assist status indicator (Head Up Display)	Displays the status of ProPILOT Assist system
	Set vehicle speed indicator (Head Up Display)	Indicates the set vehicle speed Indicates 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH)
	Detected speed limit sign indicator (Head Up Display)	Indicates the currently detected speed limit sign Refer to Operation

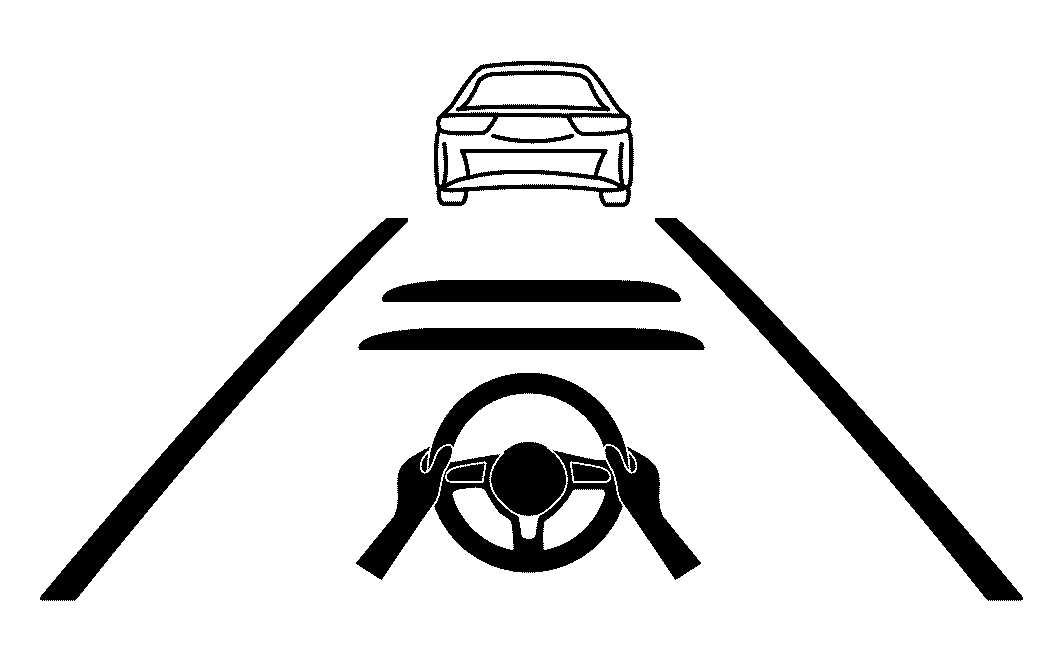

	Vehicle ahead detection indicator (Head Up Display)	Indicates whether it detects a vehicle ahead

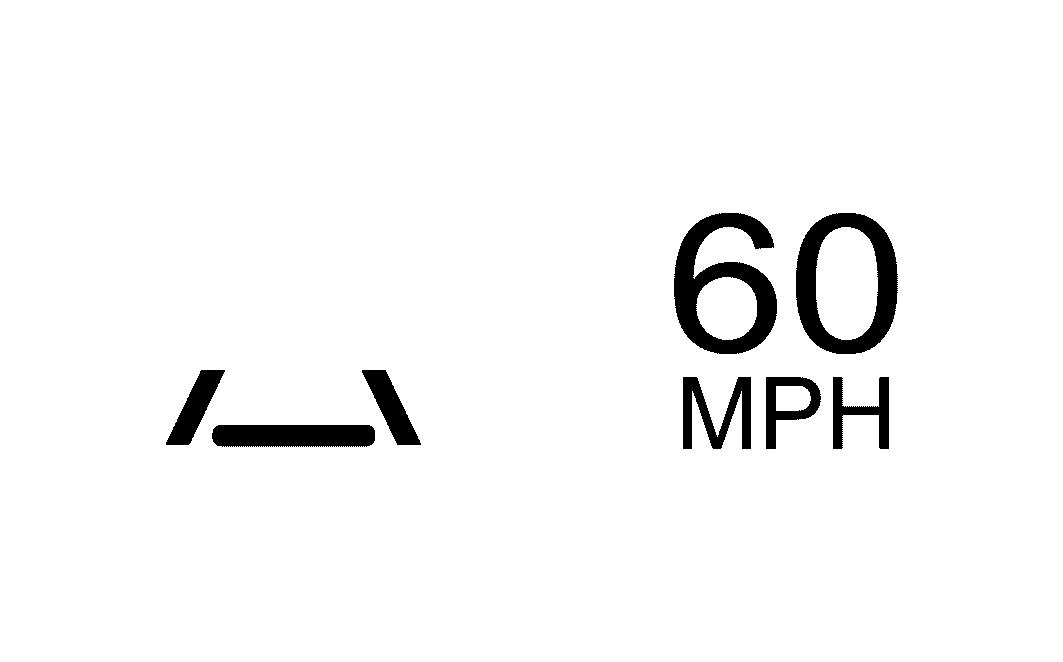

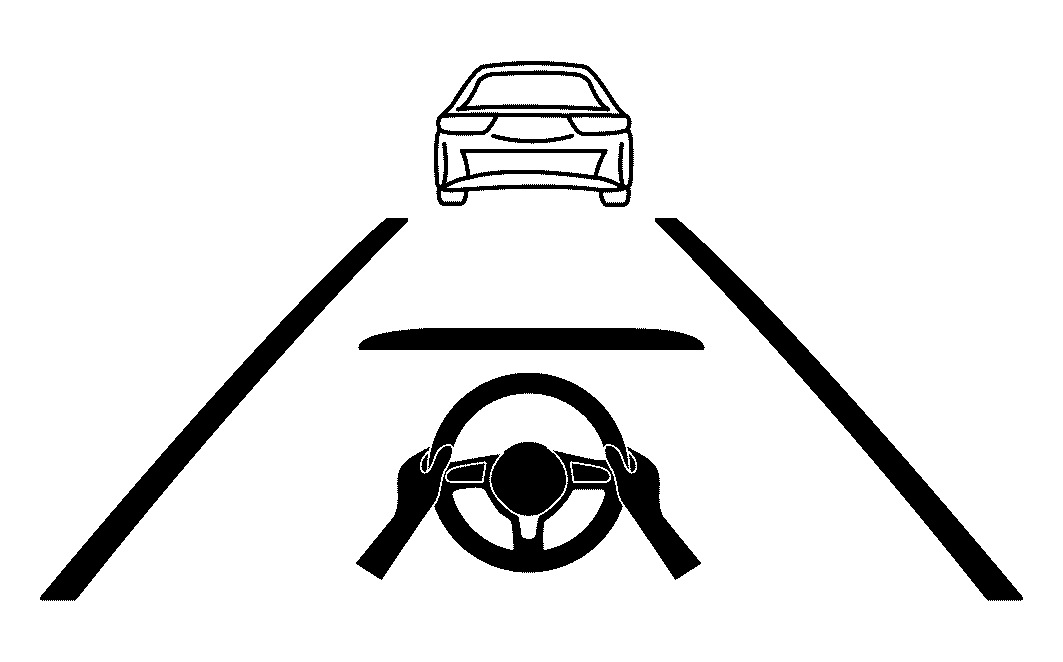

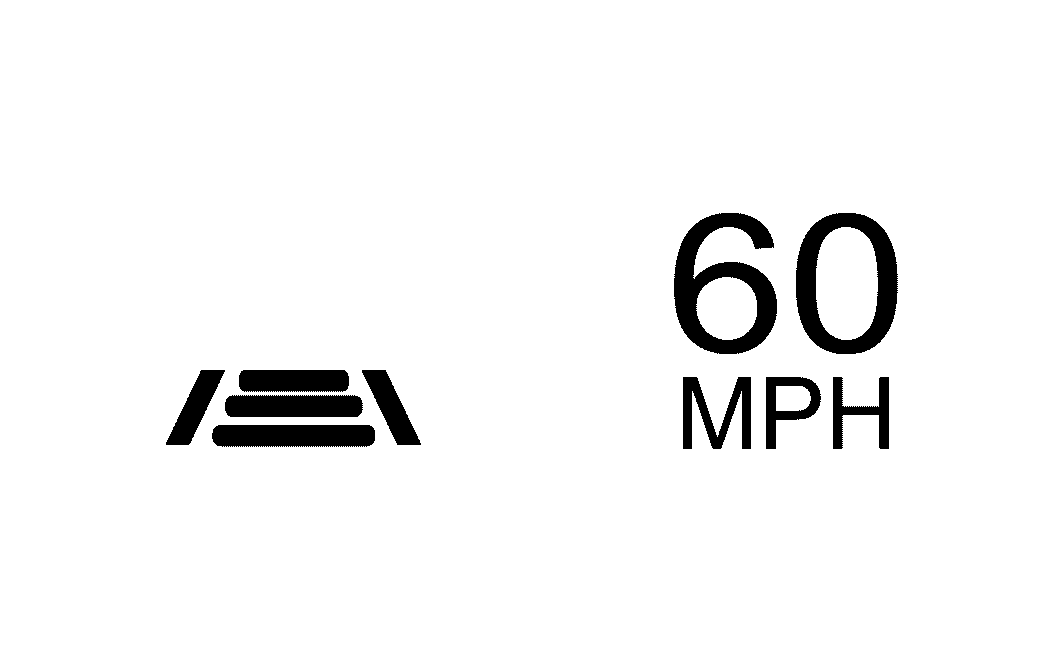

	Set distance indicator (Head Up Display)	Indicates the selected distance between vehicles set with the DISTANCE switch

SYSTEM CONTROL CONDITION DISPLAY

Quickly push (less than 1.5 seconds) and release the ProPILOT Assist MAIN switch ON.

APPROACH WARNING DISPLAY

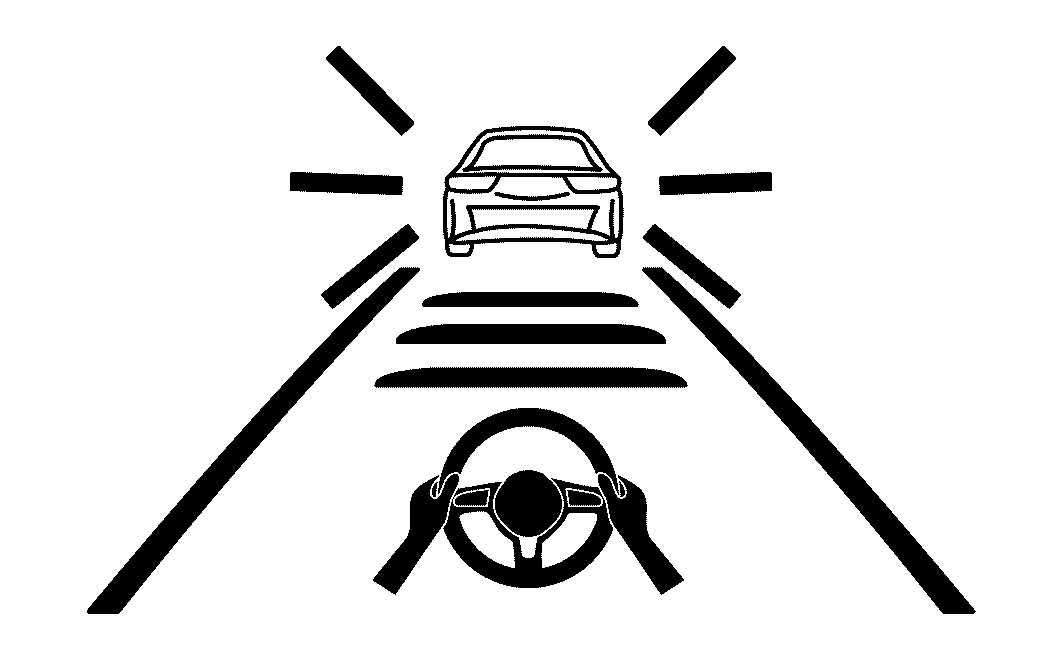

If own vehicle comes closer to a vehicle ahead due to rapid deceleration of that vehicle or if another vehicle cuts in, the system warns the driver with the chime and ProPILOT Assist system display. Decelerate by depressing the brake pedal to maintain a safe vehicle distance if:

The chime sounds.
The vehicle ahead detection indicator blinks in yellow.

The warning chime may not sound in some cases when there is a short distance between vehicles. Some examples are:

When the vehicles are traveling at the same speed and the distance between vehicles is not changing.
When the vehicle ahead is traveling faster and the distance between vehicles is increasing.
When a vehicle cuts in at near own vehicle.

The warning chime will not sound when own vehicle approaches vehicles that are parked or moving slowly.

The warning chime will not sound when the accelerator pedal is depressed, overriding the system.

The approach warning chime may sound and the system display may blink when the distance sensor detects some reflectors which are fitted on vehicles in other lanes or on the side of the road.

This may cause the ProPILOT Assist system to decelerate or accelerate the vehicle.

The distance sensor may detect these objects when the vehicle is driven on winding roads, hilly roads or when entering or exiting a curve.

The distance sensor may also detect reflectors on narrow roads or in road construction zones.

In these cases, driver will have to manually control the proper distance ahead of own vehicle.

Also, the sensor sensitivity can be affected by vehicle operation (steering maneuver or driving position in the lane) or traffic or vehicle condition (for example, if a vehicle is being driven with some damage).

Condition	Display on information display	Display on Head Up Display

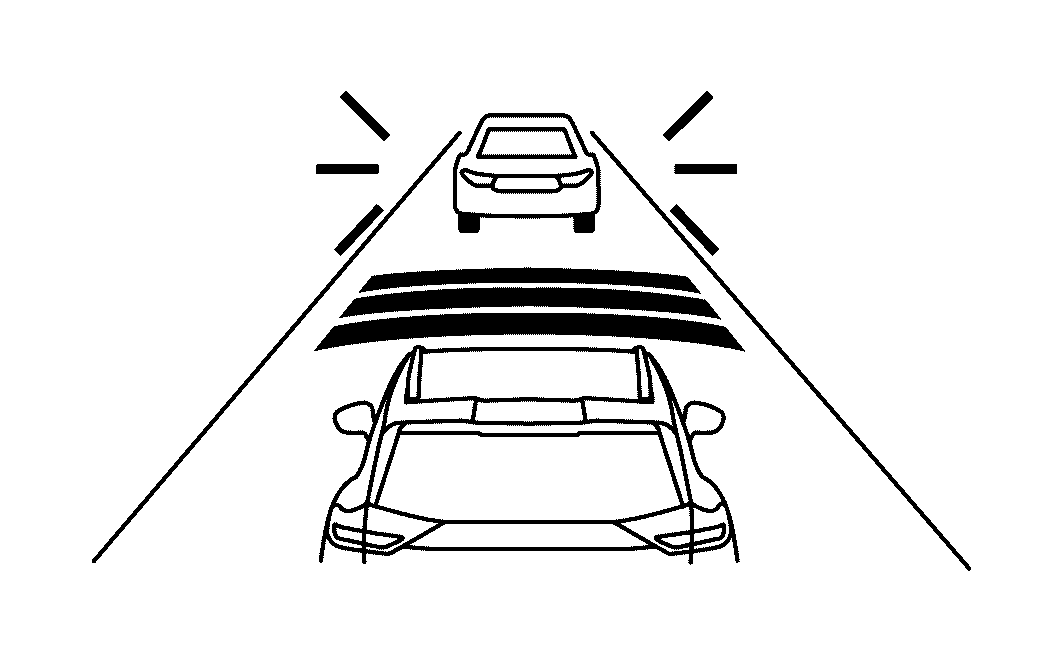

When own vehicle comes closer to the vehicle ahead and it is judged that the distance between the vehicles is not sufficient	Vehicle ahead detection indicator: Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Vehicle ahead detection indicator: Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.

WARNING LAMP AND AUTOMATIC CANCELLATION DISPLAY

Condition	Description	Display on information display
When the VDC is turned OFF When the SNOW mode or OFF-ROAD mode is selected (AWD models)	A chime sounds and the control is automatically canceled. NOTE: When the condition is no longer present, turn the system OFF. Turn the ICC system back on to use the system.	Currently not available
When the VDC or ABS (including the TCS) operates When a wheel slips	A chime sounds and the control is automatically canceled. NOTE: When the conditions listed above are no longer present, turn the system OFF. Turn the ProPILOT Assist system back on to use the system.	Not Available: Poor Road Conditions
The front camera unit area of the windshield is fogged up or covered with dirt, water, drops, ice, snow, etc. Strong light, such as sunlight or high beams from oncoming vehicles, enter the front camera When the wiper (HI) operates	A chime sounds and the control is automatically canceled. NOTE: The system will be available when the above conditions no longer exist. If the warning message continues to appear, stop the vehicle in a safe location, turn the engine OFF and clean the windshield glass.	Not Available Front Camera Obstructed
Parking brake is applied	A chime sounds and the control is automatically canceled. NOTE: After releasing the parking brake, turn the system OFF. Turn the ProPILOT Assist system back on to use the system.	Not Available Parking Brake On
When the driver's seat belt is not fastened	A chime sounds and the control is automatically canceled. NOTE: After fastened the seat belt, turn the system OFF. Turn the ProPILOT Assist system back on to use the system.	Not Available Seat Belt Not Fastened
When the distance sensor is dirty, making it impossible to detect a vehicle ahead	A chime sounds and the control is automatically canceled. NOTE: Park the vehicle in a safe place, turn the engine OFF. Check to see if the distance sensor area of the front grille is blocked. If the distance sensor area of the front grille is blocked, remove the blocking material. Restart the engine and then perform the ProPILOT Assist system again.	Forward Driving Aids temporarily disabled Front Sensor blocked See Owner's Manual
While the vehicle is stopped by the ProPILOT Assist, the driver's door is opened but the electronic parking brake was not activated	A chime sounds and the control is automatically canceled. NOTE: Please step on the brake immediately	Press Brake pedal
When the system is malfunctioning	A chime sounds and the control is automatically canceled. NOTE: Stop the vehicle in a safe place. Turn the engine OFF, restart the engine and set the ProPILOT Assist system again If it is not possible to set the ProPILOT Assist system or the indicator stays on, it may be a malfunction.	Not Available System Malfunction
