Switch Name And Function

Courtesy of NISSAN NORTH AMERICA, INC.

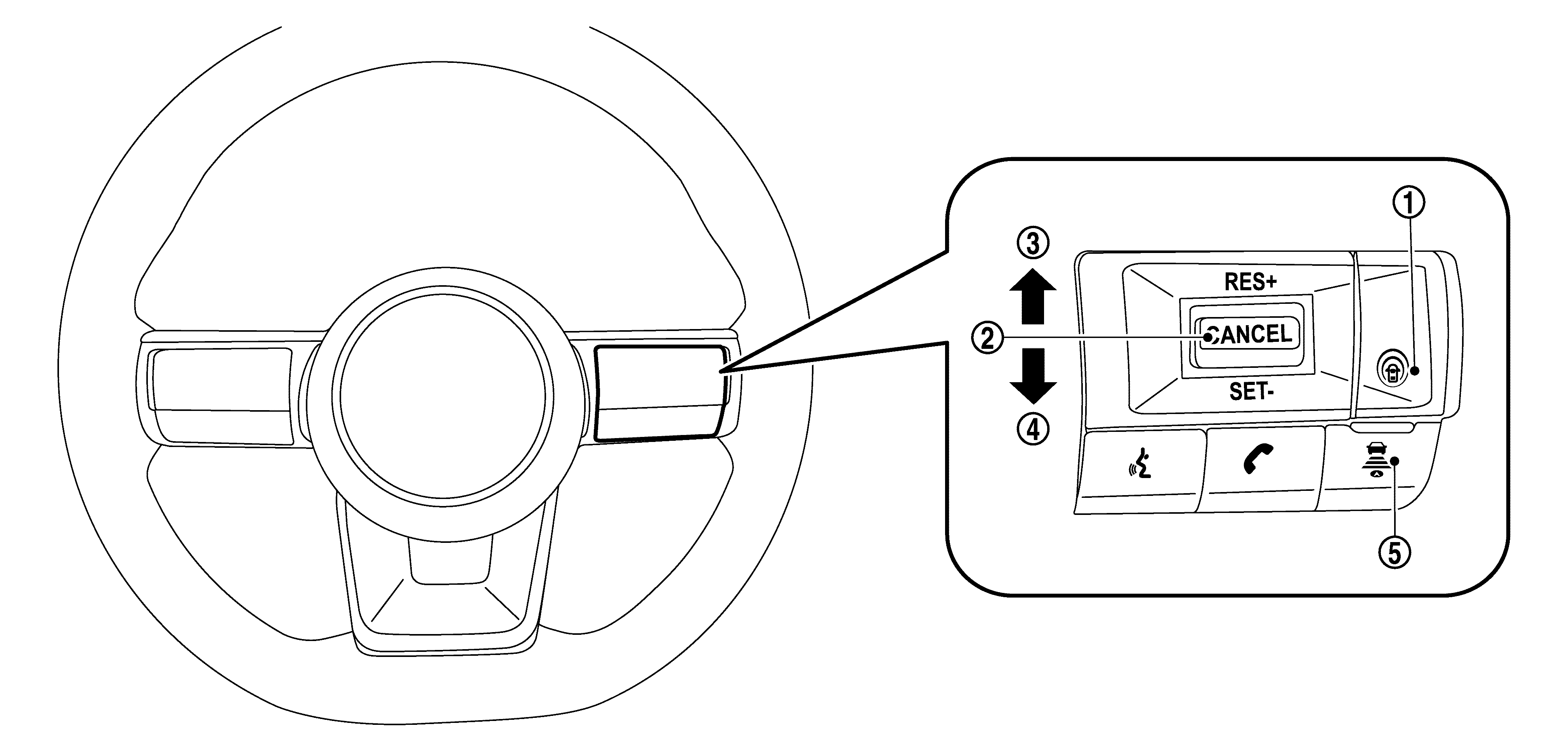

No.	Switch name	Description
	ProPILOT Assist MAIN switch	ProPILOT Assist MAIN switch to activate the system (Press for less than 1.5 seconds)
	CANCEL switch	Pressing the switch cancels ProPILOT Assist control
	RES+ switch	Resumes set speed or increases speed incrementally Push and hold the switch to increase the set speed by 5 km/h (5 MPH) Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
	SET- switch	Sets desired cruise speed or reduces speed incrementally Push and hold the switch to decrease the set speed by 5 km/h (5 MPH) Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH) NOTE: The minimum set speed is 30 km/h (20 MPH)
	DISTANCE switch	Changes the following distance from: Long, Middle, Short
