Exploded View

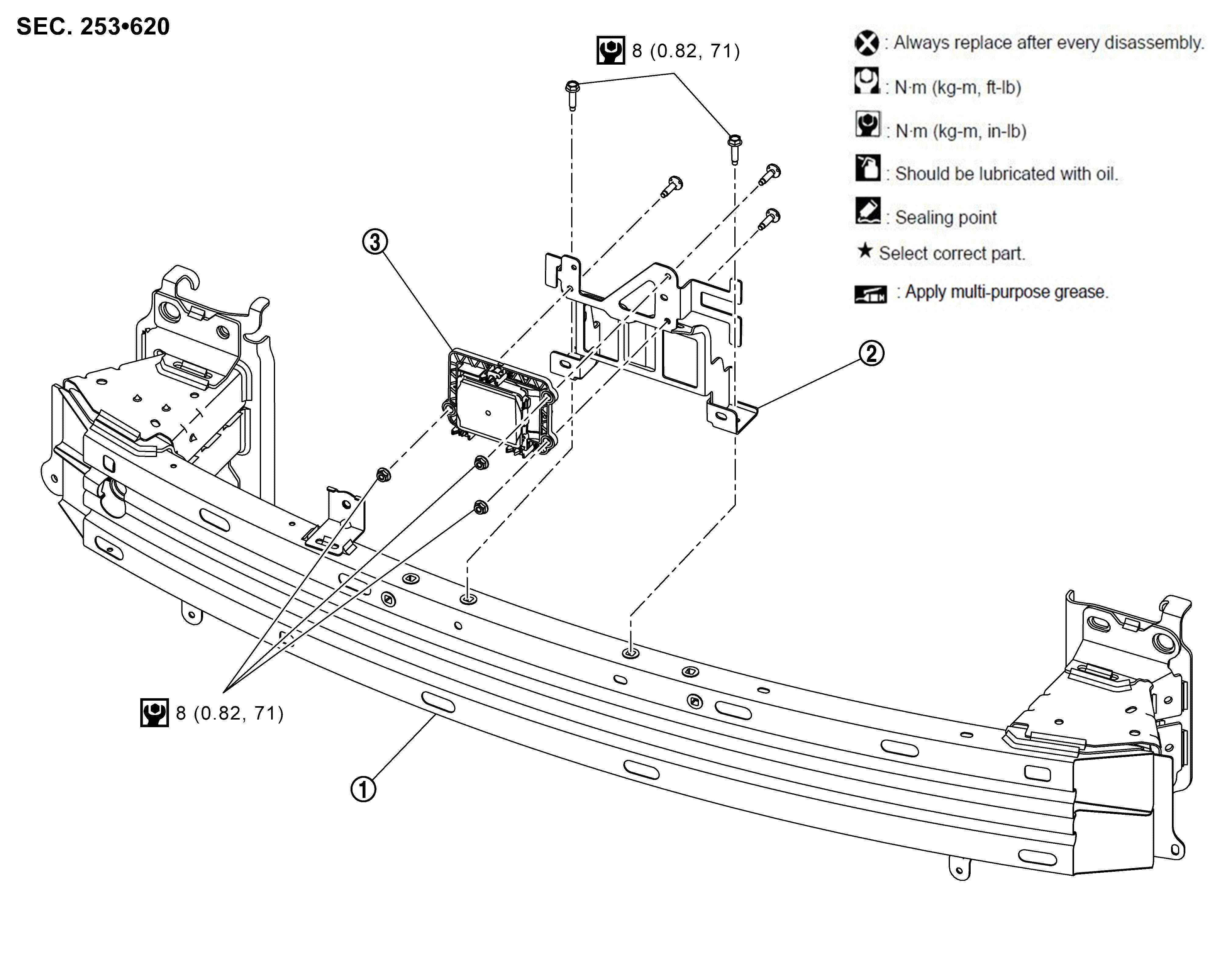

Fig 1: Distance Sensor With Torque Specifications
GNSDB33928Courtesy of NISSAN
SYMBOL Front bumper reinforcement SYMBOL Distance sensor bracket SYMBOL Distance sensor
SYMBOL : N.m (kg-m, ft-lb)
