CAN System Specification Chart
Determine CAN system type from the following specification chart.
NOTE:
Refer to Trouble Diagnosis Flow Chart
for how to use CAN system specification chart.
SPECIFICATION CHART
| Body type | 4-Door Wagon | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Axle | 2WD | AWD | ||||||||||||||||||
| Engine | KR15DDT | KR15DDT | ||||||||||||||||||
| Transmission | CVT | |||||||||||||||||||
| Brake control | VDC | |||||||||||||||||||
| Telematics system | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | ||||
| Automatic power back door system | X | X | X | X | X | X | X | X | X | X | X | X | ||||||||
| Intelligent around view monitor | X | X | X | X | X | X | X | X | X | X | X | X | ||||||||
| Automatic drive positioner | X | X | X | X | X | X | X | X | ||||||||||||
| BOSE audio | X | X | X | X | X | X | ||||||||||||||
| Wireless charger | X | X | X | X | ||||||||||||||||
| Head Up Display | X | X | ||||||||||||||||||
| CAN system type | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| Vehicle CAN communication unit | ||||||||||||||||||||
| BCM | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Intelligent key unit | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| A/C amp. | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Air bag diagnosis sensor unit | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| IPDM E/R | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Driver seat control unit | X | X | X | X | X | X | X | X | ||||||||||||
| Active noise control unit | X | X | X | X | X | X | X | X | X | X | ||||||||||
| Automatic back door control unit | X | X | X | X | X | X | X | X | X | X | X | X | ||||||||
| Combination meter | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| 8CH CAN gateway | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| ITS CAN communication unit | ||||||||||||||||||||
| 8CH CAN gateway | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Around view monitor control unit | X | X | X | X | X | X | X | X | X | X | X | X | ||||||||
| ADAS control unit 2 | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Distance sensor | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Front camera unit | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Side radar LH | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Side radar RH | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Sonar control unit | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Chassis CAN communication unit | ||||||||||||||||||||
| Chassis control module | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| AWD control unit | X | X | X | X | X | X | X | X | X | X | ||||||||||
| Power steering control module | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Head up display unit | X | X | ||||||||||||||||||
| Steering angle sensor | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| ABS actuator and electric unit (control unit) | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| 8CH CAN gateway | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Drivetrain CAN communication unit | ||||||||||||||||||||
| ECM | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| TCM | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Electric shift control module | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Chassis control module | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| 8CH CAN gateway | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| IT CAN communication unit | ||||||||||||||||||||
| 8CH CAN gateway | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| AV control unit | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| TCU | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | ||||
| Wireless charger unit | X | X | X | X | ||||||||||||||||
| BOSE speaker amp. | X | X | X | X | X | X | ||||||||||||||
| Engine CAN communication unit | ||||||||||||||||||||
| ECM | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Electric intake valve timing control module | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| VCR control module | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | ||
| Diagnostic CAN communication unit | ||||||||||||||||||||
| 8CH CAN gateway | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Data link connector | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
x: Applicable

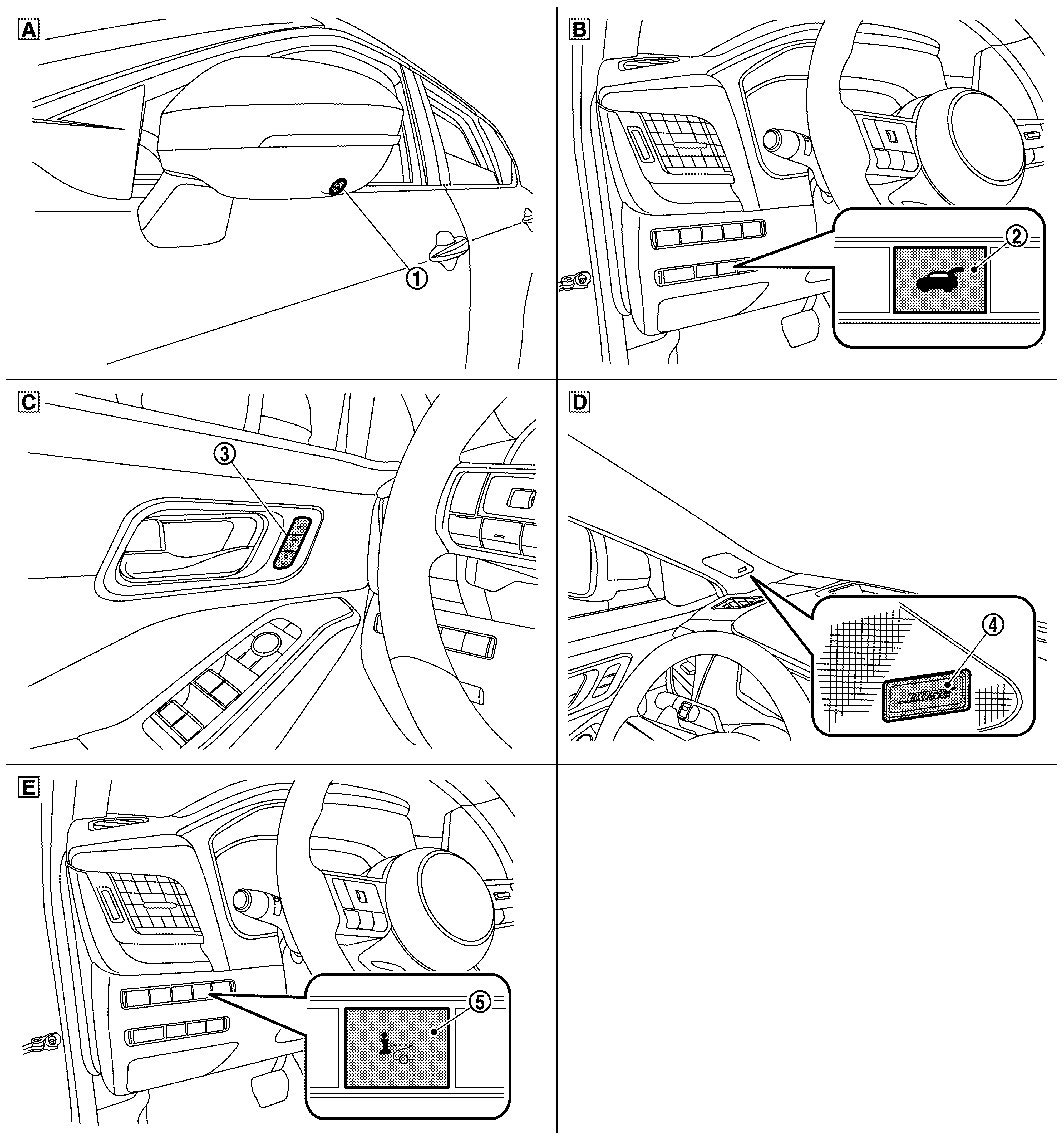

Vehicle Equipment Identification Information
NOTE:
Check CAN system type from the vehicle shape and equipment.
| Telematics switch | Automatic power back door switch | Side camera LH | |||
| Seat memory switch | BOSE logo | Wireless charger indicator | |||
| Head Up Display main switch | |||||
| With telematics system | With automatic power back door system | With intelligent around view monitor | |||
| With automatic drive positioner | With BOSE audio | With wireless charger | |||
| With Head Up Display | |||||
