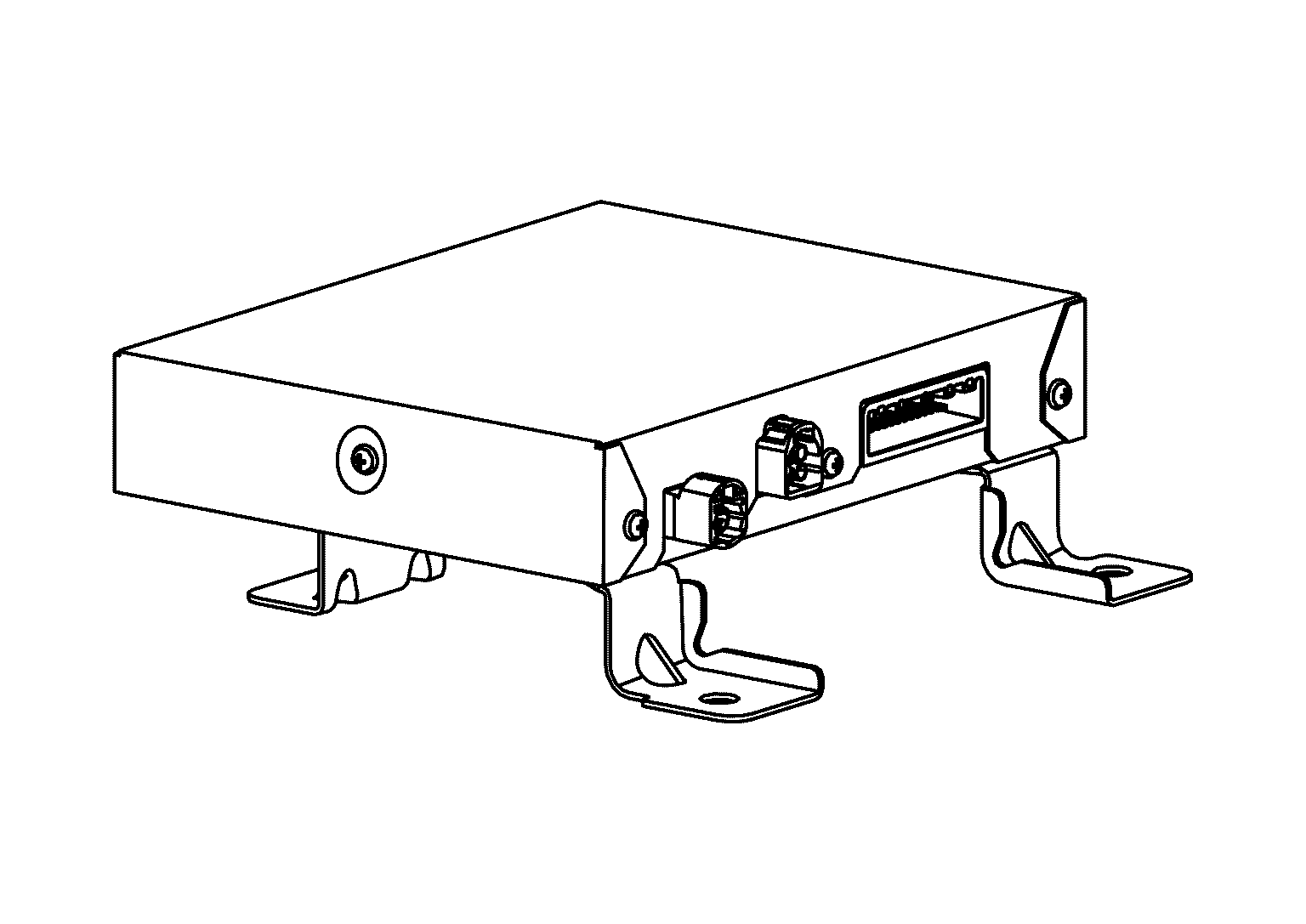

Around View Monitor Control Unit

Component Function Within The System

Around view monitor control unit control a intelligent around view monitor system.

Courtesy of NISSAN

Individual Component Function

• Necessary signals are transmitted/received to/from control unit via CAN communication.
• Supplies a power supply to each camera.
• Camera image signals received from each camera are converted/synthesized in the around view monitor control unit and transmitted to the AV control unit by LVDS.
  NOTE: LVDS (Low Voltage Differential Signaling): LVDS is differential signaling system, meaning that it transmits information as the difference between the voltages on a pair of wire, the two wire voltages are compared at the receiver.

Component Operation

Refer to System Description .

Component Location

Around view monitor control unit is located in the center console box. Refer to Component Location .
