Component Location

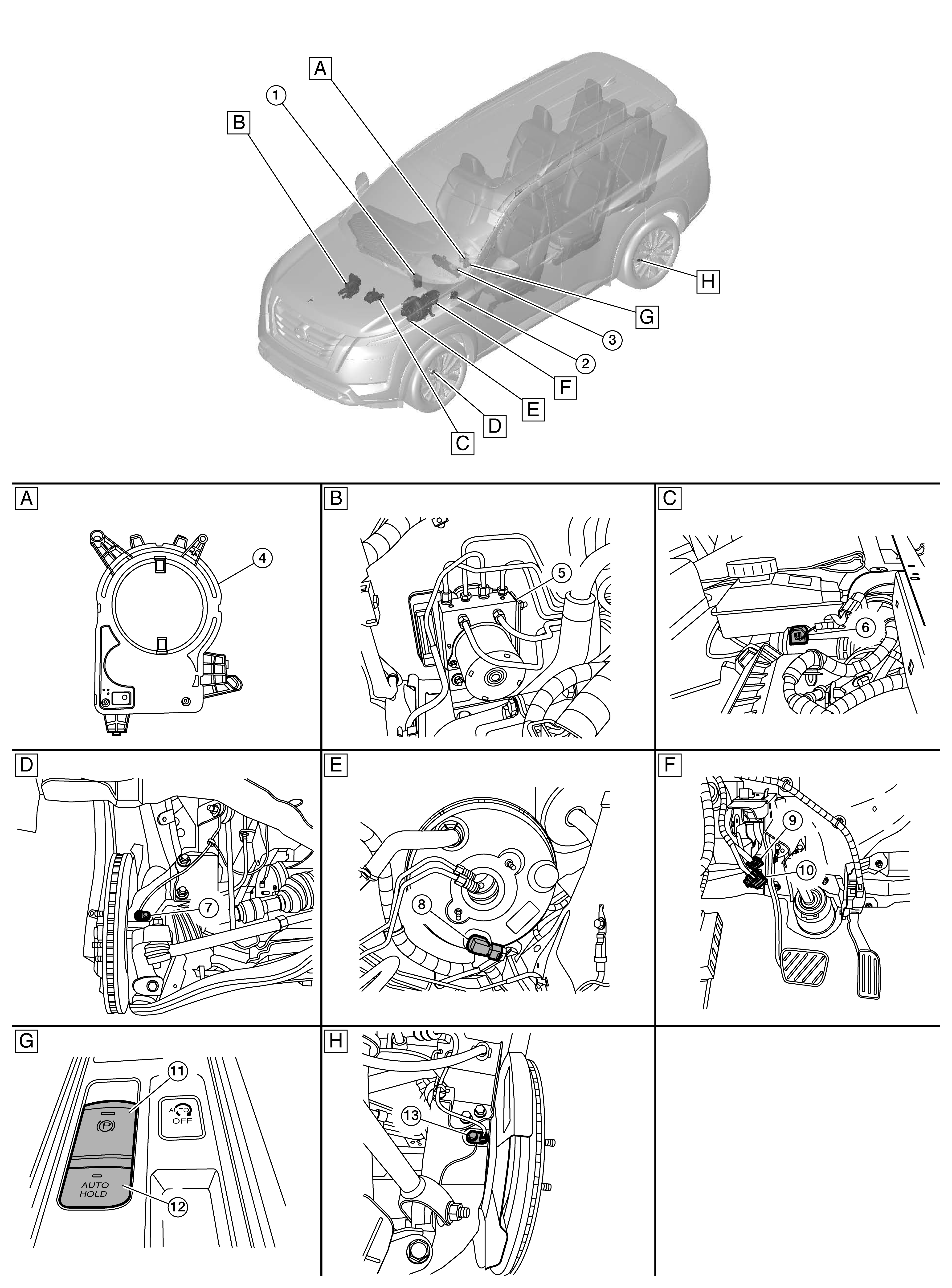

GNSDB45024Courtesy of NISSAN
A. Steering column area B. Engine room (RH) C. Engine room (LH)
D. Front left wheel E. Engine room (LH) F. Brake pedal area
G. Center console area H. Rear left wheel
No. Components Function
1. ADAS control unit 2
  • Control each system, based on CAN communication and ITS communication signals received from each control unit
  • Transmits signals necessary for control between CAN communication and ITS communication
Refer to Component Location for detailed component location.
2. Chassis control module Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Drive mode signal
  • Active Trace Control signal
  • Brake hold status signal
  • Brake hold request signal

Refer to Component Location for detailed component location.
3. Combination meter Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Brake fluid level switch signal
  • Electric parking brake switch signal

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication.
  • ABS warning lamp signal
  • Brake warning lamp signal
  • VDC OFF indicator lamp signal
  • VDC warning lamp signal

Refer to Component Part Location (Full TFT Meter) or Component Part Location (7 Inch Information Display) for detailed component location.
4. Steering angle sensor
  • Steering angle sensor transmits the steering angle sensor malfunction signal to ADAS control unit 2, 4WD control unit, Chassis control unit ABS actuator and electric unit (control unit) and AV control unit via CAN communication
  • Refer to Steering Angle Sensor .
5. ABS actuator and electric unit (control unit) Refer to ABS Actuator and Electric Unit (Control Unit) .
6. Brake fluid level switch Refer to Brake Fluid Level Switch .
7. Front wheel sensor LH (RH similar) Refer to Wheel Sensor and Sensor Rotor .
8. Vacuum sensor Refer to Vacuum Sensor .
9. Brake pedal position switch Refer to Brake Pedal Position Switch .
10. Stop lamp switch Refer to Stop Lamp Switch .
11. Electric parking brake switch Refer to Component Location .
12. Auto brake hold switch Refer to Component Location .
13. Rear wheel sensor LH (RH similar) Refer to Wheel Sensor and Sensor Rotor .
