Home >> Nissan-Datsun >> 2023 >> Pathfinder SV, 4WD >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass And Window System >> Removal And Installation >> Windshield Glass >> Exploded View

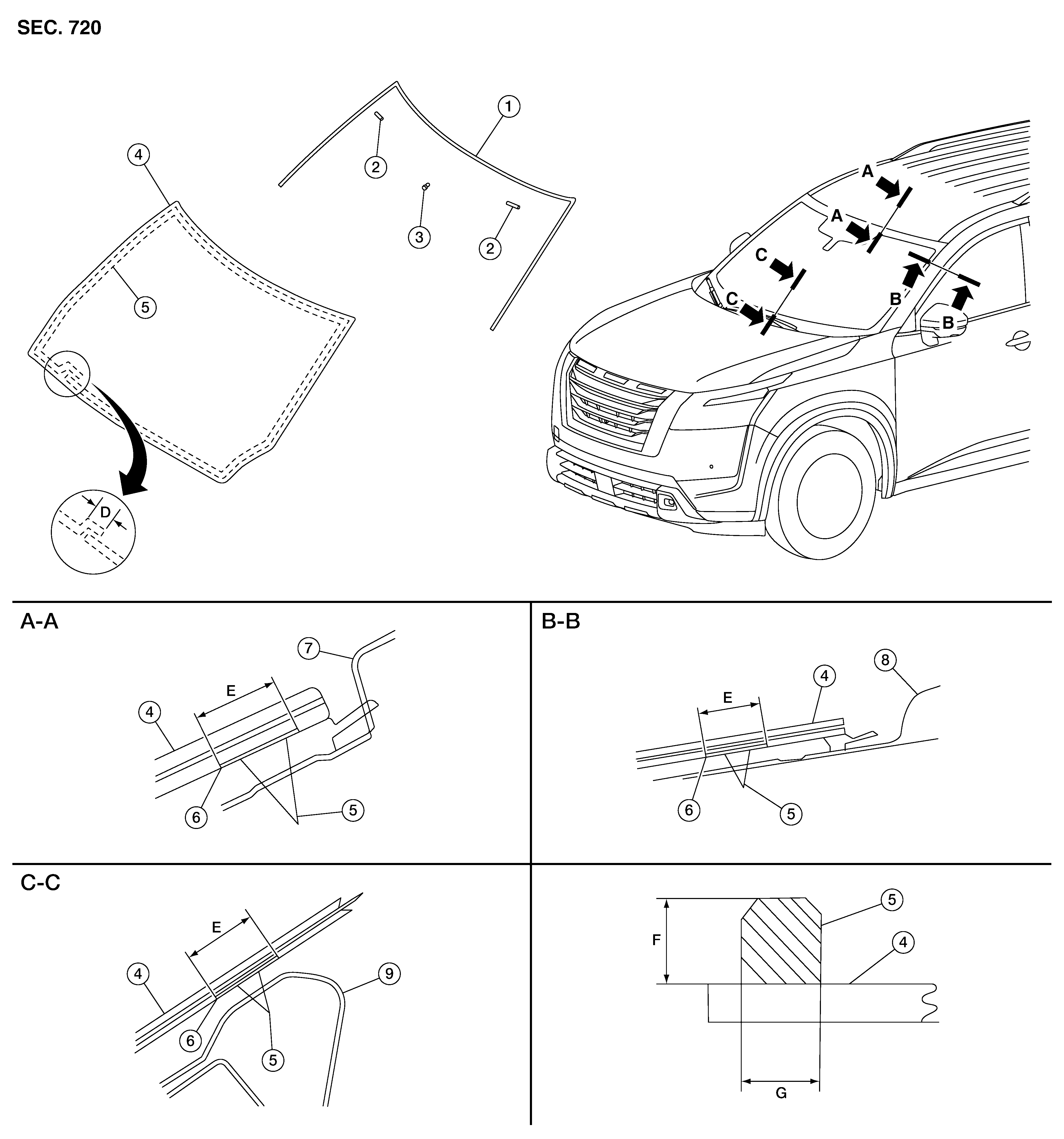

Exploded View

GNSDB44655Courtesy of NISSAN
1. Windshield glass molding 2. Spacer 3. Mirror base
4. Windshield glass 5. Adhesive 6. Glass primer
7. Roof 8. Body side outer 9. Cowl top
D. 30 mm (1.18 in) E. 16 mm (0.63 in) F. 12 mm (0.47 in)
G. 7 mm (0.28 in)
