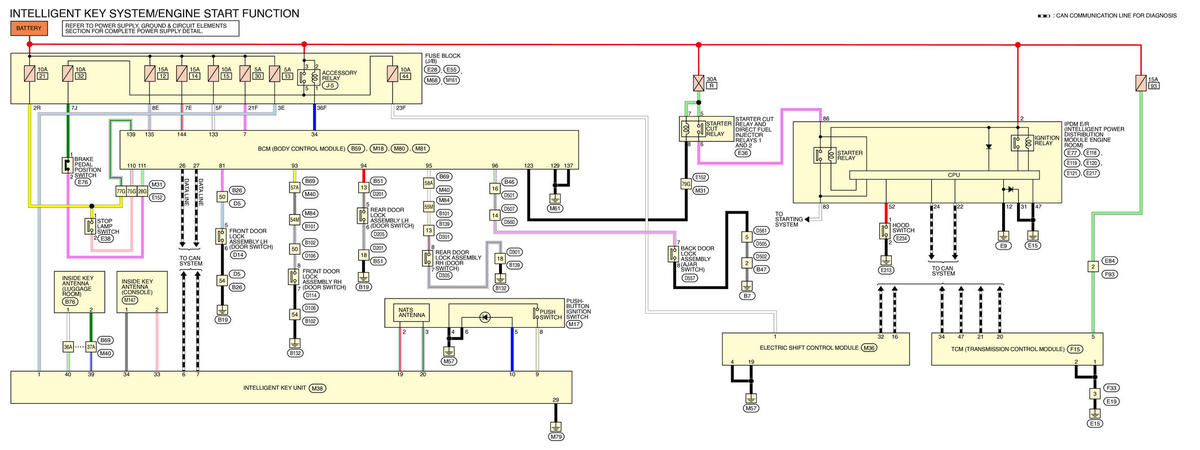

Intelligent Key System/Engine Start Function: Wiring Diagram

GNSW73543Courtesy of NISSAN NORTH AMERICA, INC
