Exploded View

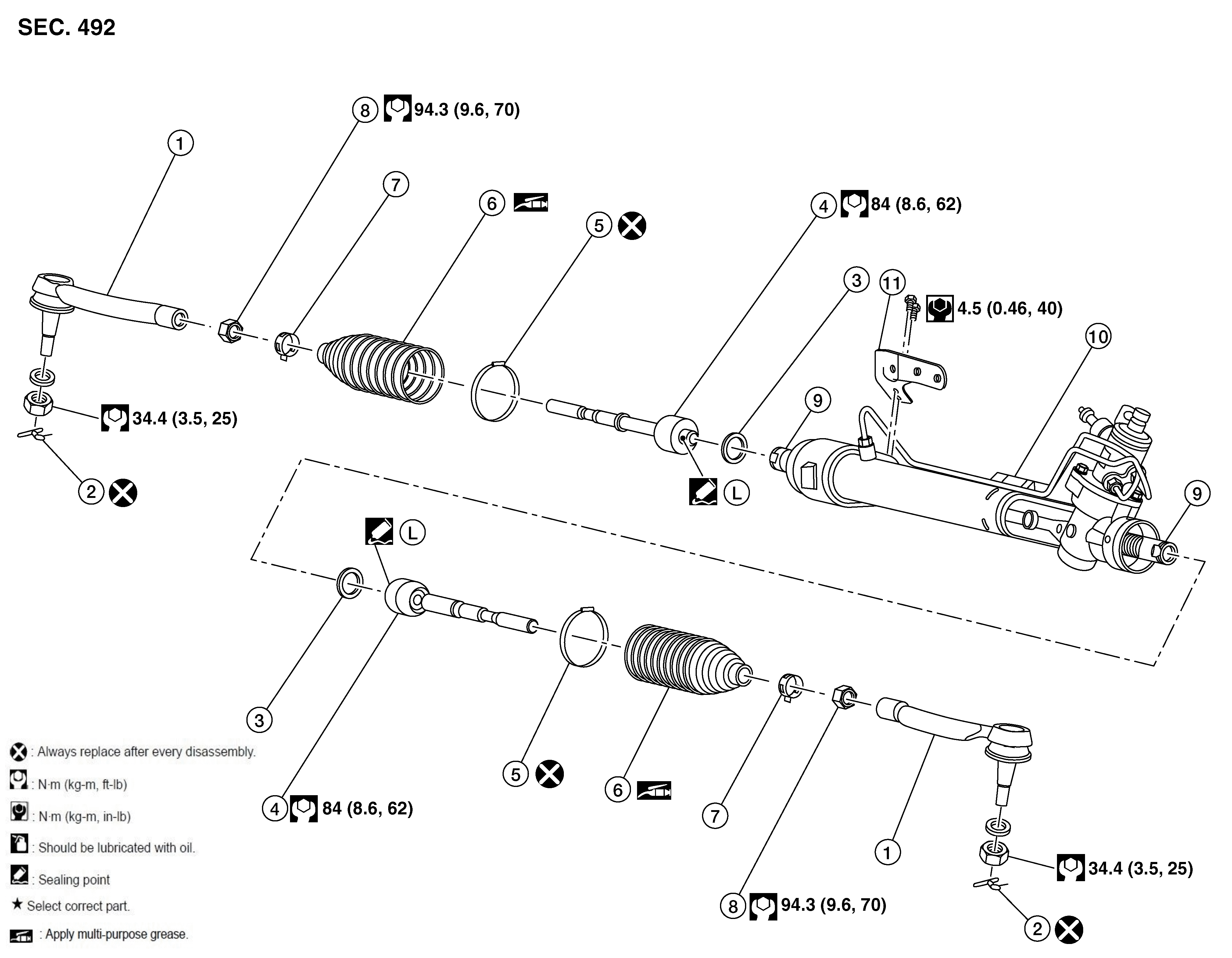

Fig 1: Steering Gear and Linkage Components with Torque Specifications
GNSDB55600Courtesy of NISSAN
1. Outer socket 2. Cotter pin 3. Spacer
4. Inner socket 5. Large boot clamp 6. Boot
7. Small boot clamp 8. Inner socket lock nut 9. Rack bar (not serviceable)
10. Steering gear 11. Bracket
