Exploded View

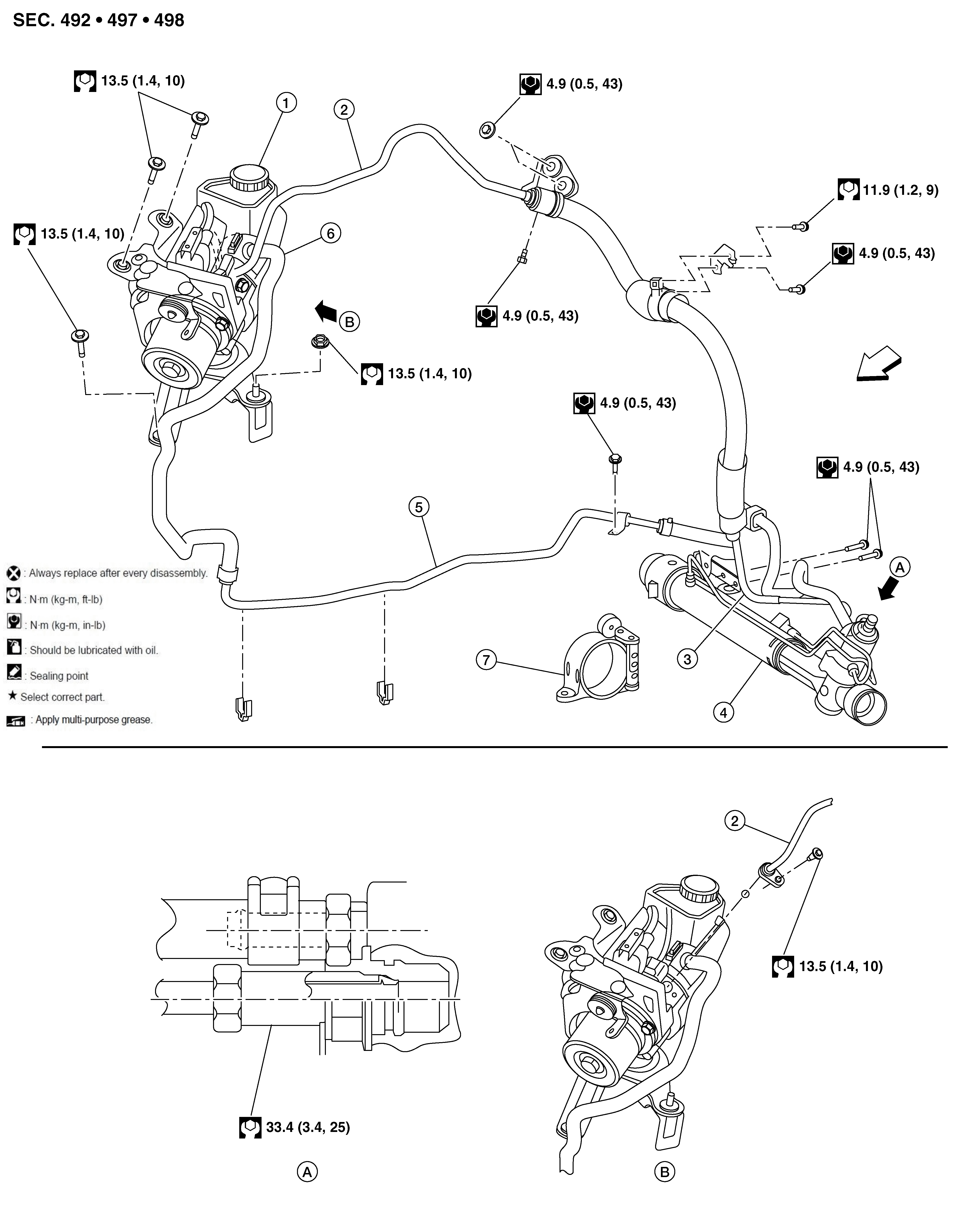

Fig 1: Hydraulic Line Components with Torque Specifications

GNSDB54936

Courtesy of NISSAN

1.	Power steering oil pump	2.	High-pressure piping (upper)	3.	High-pressure piping (lower)
4.	Steering gear	5.	Low-pressure piping (lower)	6.	Low-pressure piping (upper)
7.	Torque rod bracket	A.	View A	B.	View B
	Front
