Exploded View

Electric steering column

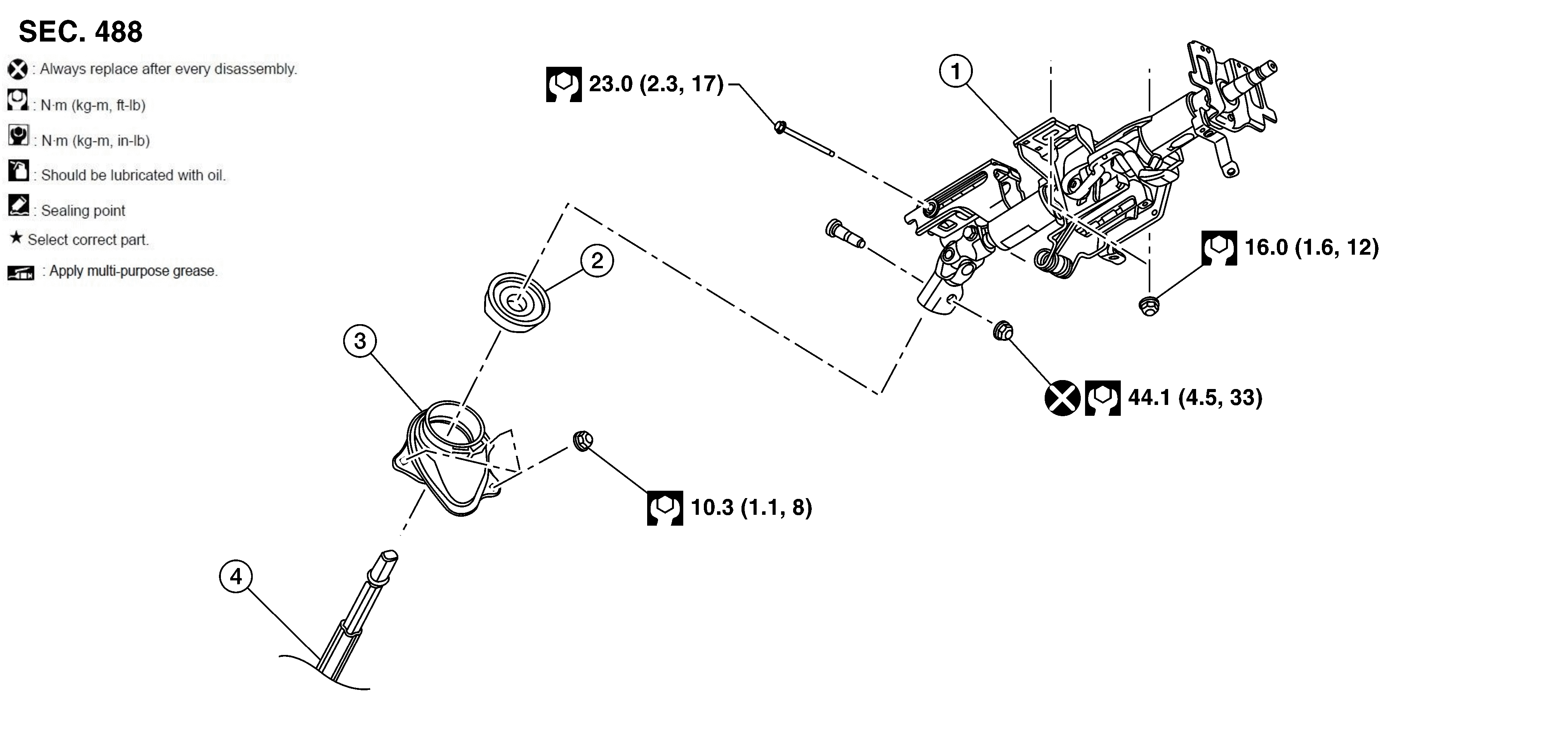

Fig 1: Steering Column Components with Torque Specifications

Courtesy of NISSAN

1.	Steering column	2.	Hole cover seal	3.	Hole cover
4.	Lower joint

Mechanical steering column

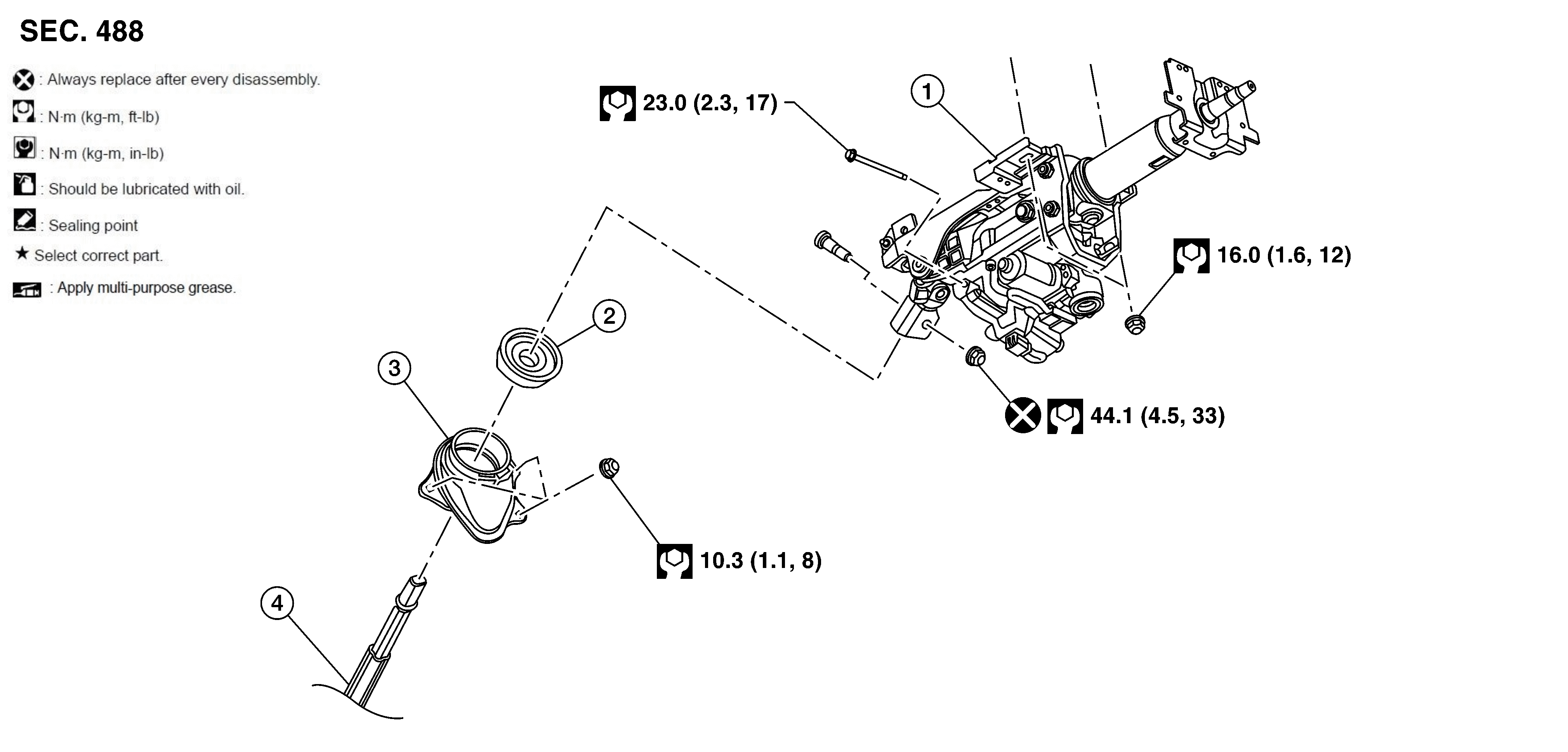

Fig 2: Mechanical Steering Column Components with Torque Specifications

Courtesy of NISSAN

1.	Steering column	2.	Hole cover seal	3.	Hole cover
4.	Lower joint
