EVAP Control System Pressure Sensor
>>

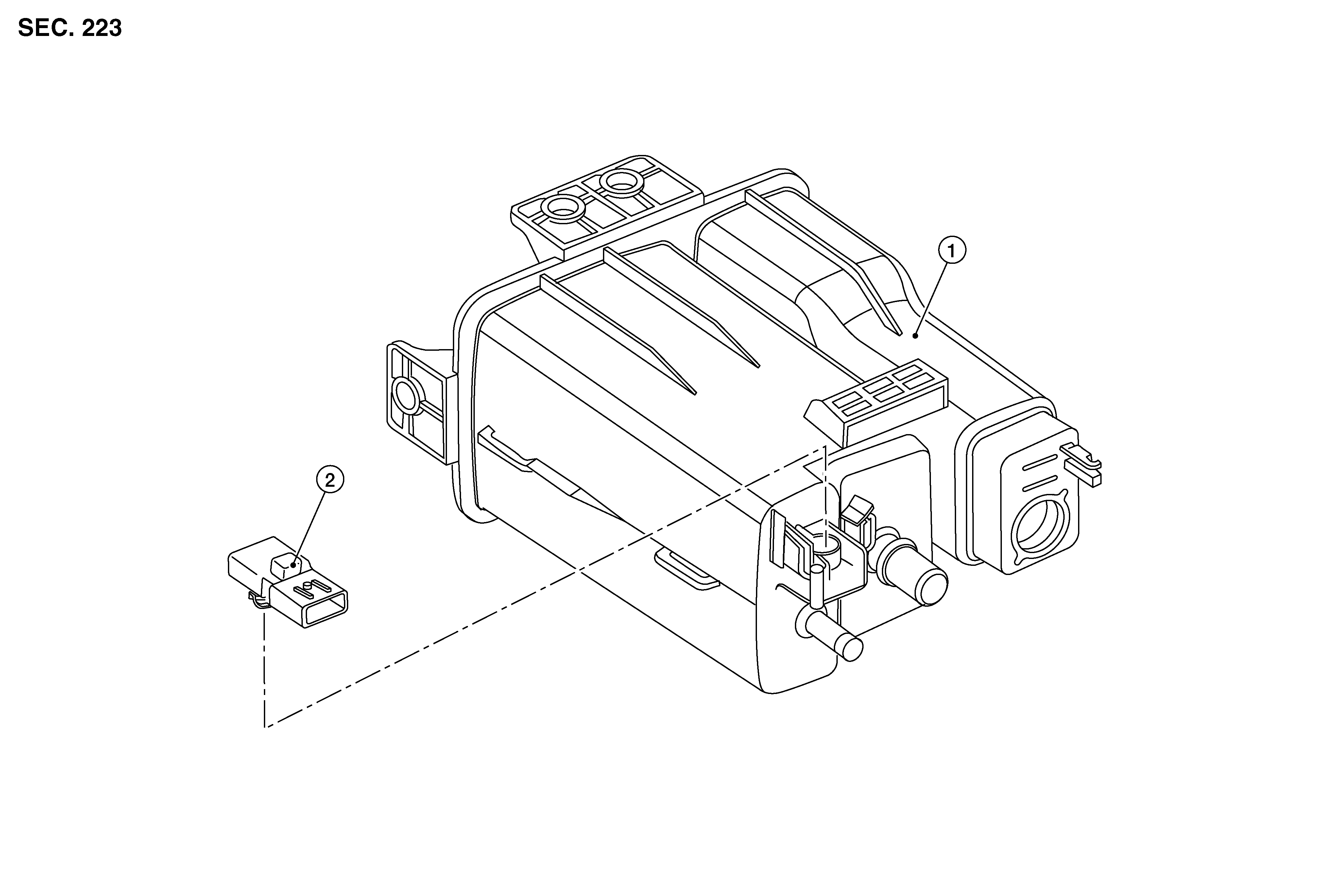

Exploded View - Mexico
Exploded View - Mexico
FOR MEXICO
Courtesy of NISSAN
1.
EVAP canister
2.
EVAP control system pressure sensor (with O-ring)
