Exploded View
Exploded View

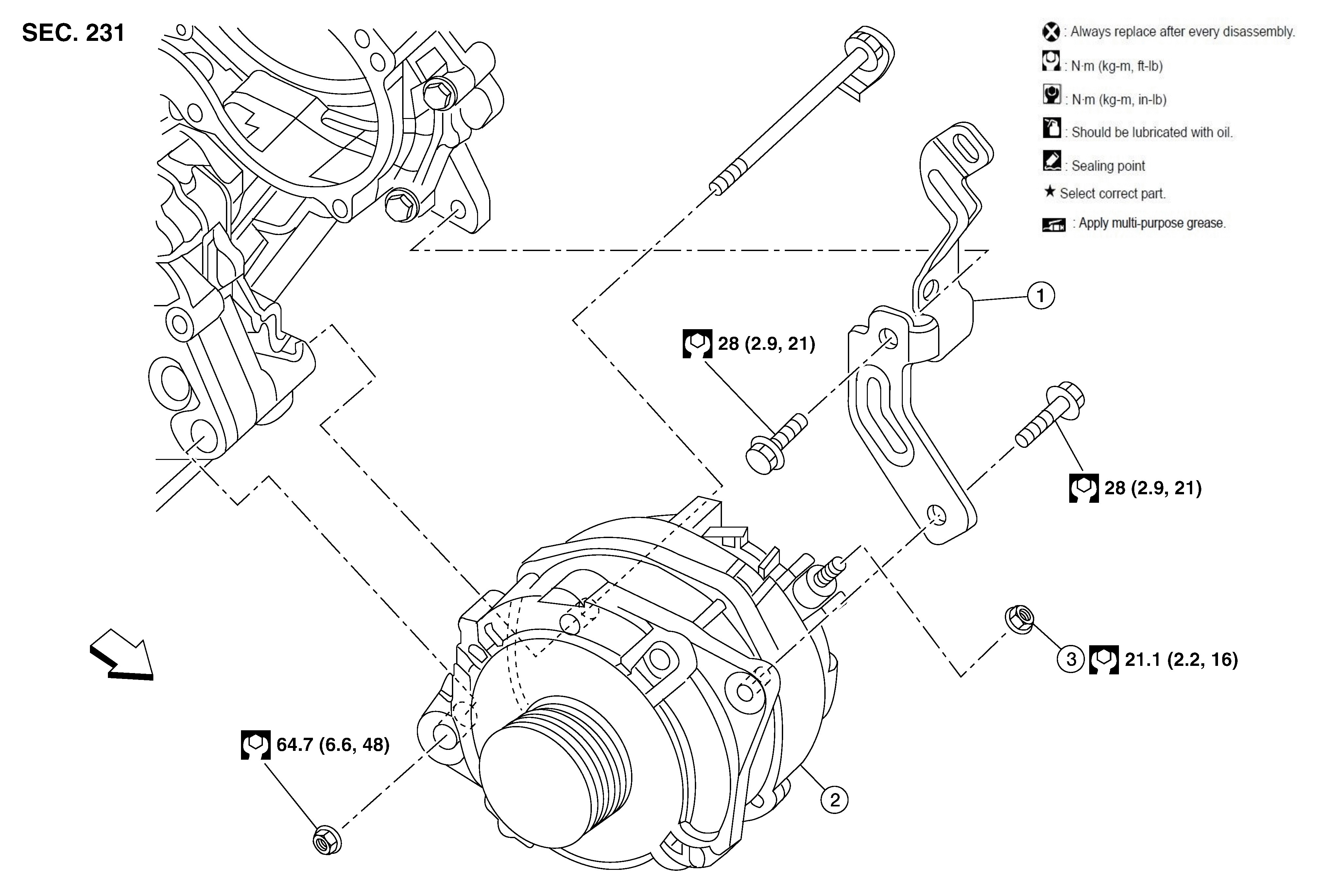

Fig 1: Generator Components with Torque Specifications
Courtesy of NISSAN
1.
Generator bracket
2.
Generator
3.
"B" terminal nut
Front
Courtesy of NISSAN
