Removal and Installation

REMOVAL

CAUTION:

Before replacing BCM, perform "Before Replace ECU" of "Read/Write Configuration" to save or print current vehicle specification. Refer to Description .
When replacing the BCM, a new BCM must be used. The functions controlled by the BCM do not operate properly if a BCM from another vehicle is used.

Disconnect negative battery terminal. Refer to Exploded View .
Remove combination meter. Refer to Removal and Installation .

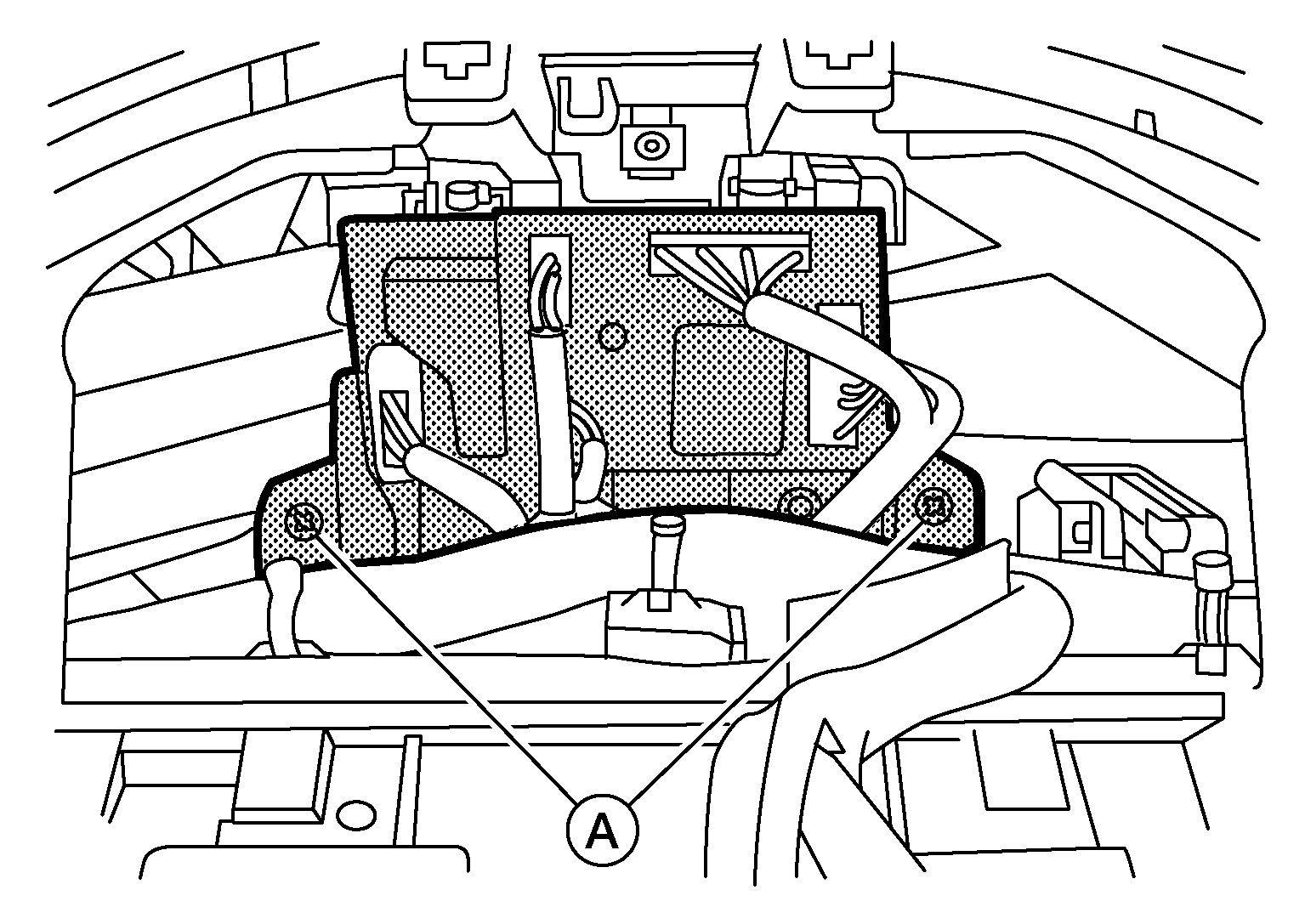

Remove screws (A) using a suitable tool.

Courtesy of NISSAN
Disconnect harness connectors from the BCM and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When replacing BCM, perform "Write Configuration". Refer to Description .
When replacing BCM, perform the system initialization (NATS). Refer to Description .
When replacing BCM, if new BCM does not come with key fobs attached, all existing key fobs must be re-registered.
For initialization and registration of Intelligent Keys. refer to CONSULT Immobilizer mode and follow the on-screen instructions.
