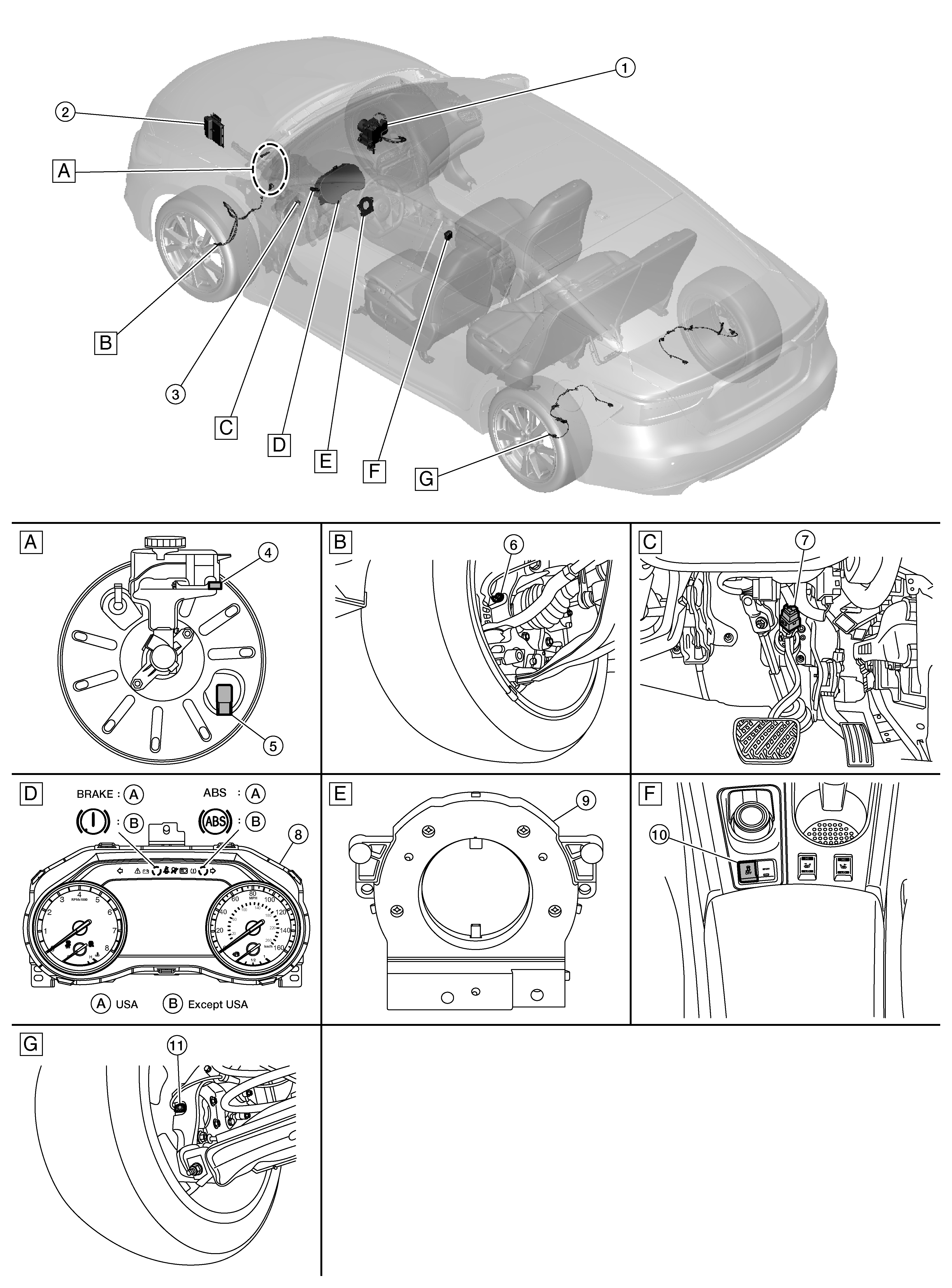

Component Location
| A. | View with brake booster assembly removed | B. | Left front wheel area | C. | Upper side of brake pedal (view with instrument lower panel LH removed) |
| D. | Combination meter (view with combination meter removed) | E. | View of steering angle sensor removed | F. | Front of center console |
| G. | Left rear wheel area |
| No. | Component | Function |
|---|---|---|
| 1. | ABS (Anti-lock Braking System) actuator and electric unit (control unit) | Refer to ABS Actuator and Electric Unit (Control Unit) . |
| 2. | ECM (Engine Control Module) | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN communication:
Refer to Component Location for detailed component location. |
| 3. | Parking brake switch | Refer to Parking Brake Switch . |
| 4. | Brake fluid level switch | Refer to Brake Fluid Level Switch . |
| 5. | Vacuum sensor | Refer to Vacuum Sensor . |
| 6. | Front wheel sensor LH (RH similar) | Refer to Wheel Sensor and Sensor Rotor . |
| 7. | Stop lamp switch | Refer to Stop Lamp Switch . |
| 8. | Combination meter | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN communication:
Refer to Component Location for detailed component location. |
| 9. | Steering angle sensor | Refer to Steering Angle Sensor . |
| 10. | Drive mode selector (VDC OFF switch) | Refer to VDC OFF Switch . |
| 11. | Rear wheel sensor LH (RH similar) | Refer to Wheel Sensor and Sensor Rotor . |
