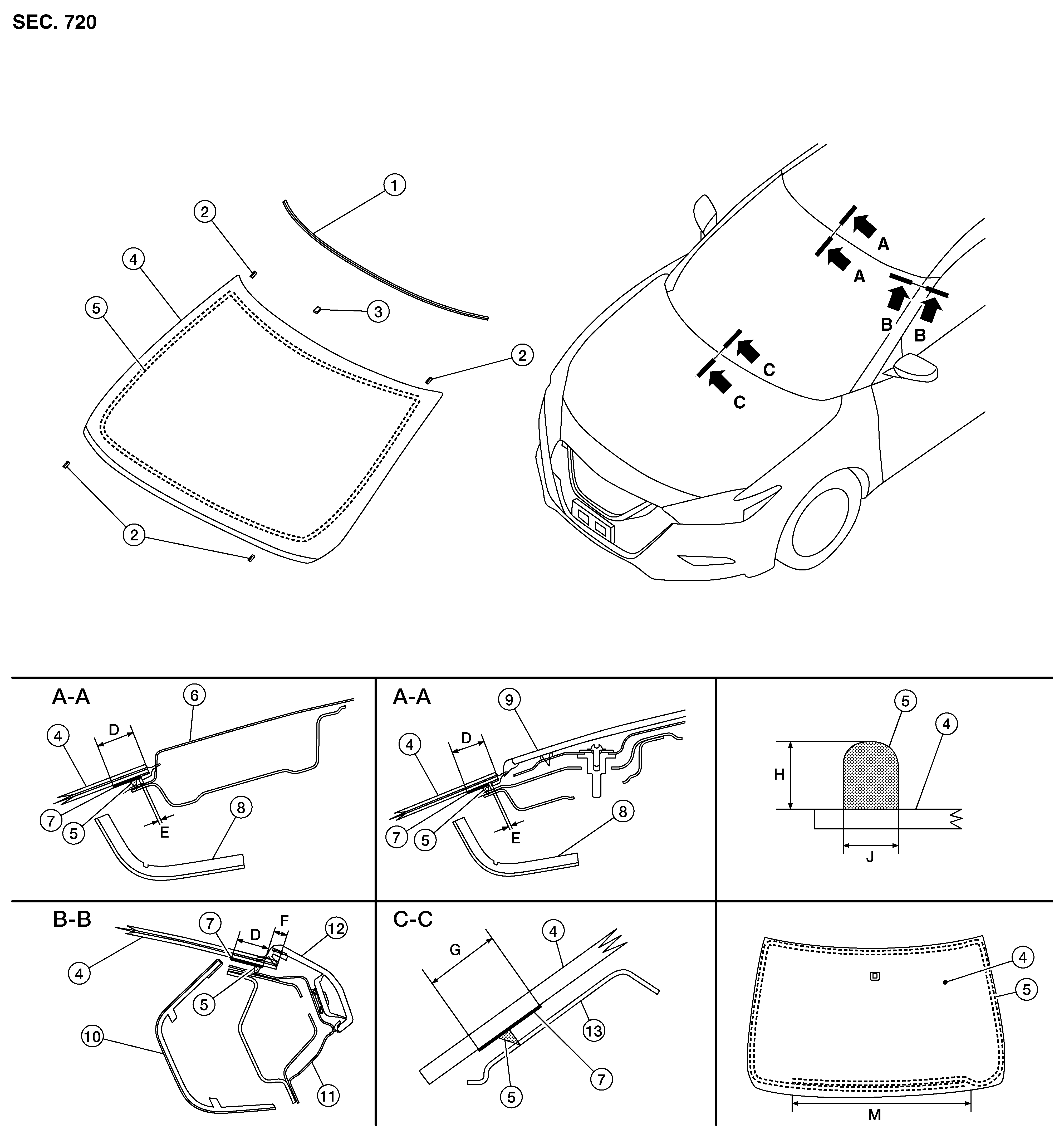

Exploded View
| 1. | Windshield glass molding | 2. | Spacer | 3. | Mirror base |
| 4. | Windshield glass | 5. | Adhesive | 6. | Metal roof |
| 7. | Glass primer | 8. | Headlining | 9. | Double panel moonroof |
| 10. | Front pillar finisher | 11. | Body side outer | 12. | Front pillar molding |
| 13. | Cowl top | D. | 16 mm (0.63 in) | E. | 1 mm (0.04 in) |
| F. | 7.8 mm (0.31 in) | G. | 38 mm (1.50 in) | H. | 12 + 2, - 0 mm (0.47 + 0.08, - 0 in) |
| J. | 7 + 2, - 0 mm (0.28 + 0.08, - 0 in) | M. | 1000 mm (39.37 in) overlap |
