Front Regulator
>>
Exploded View
Exploded View

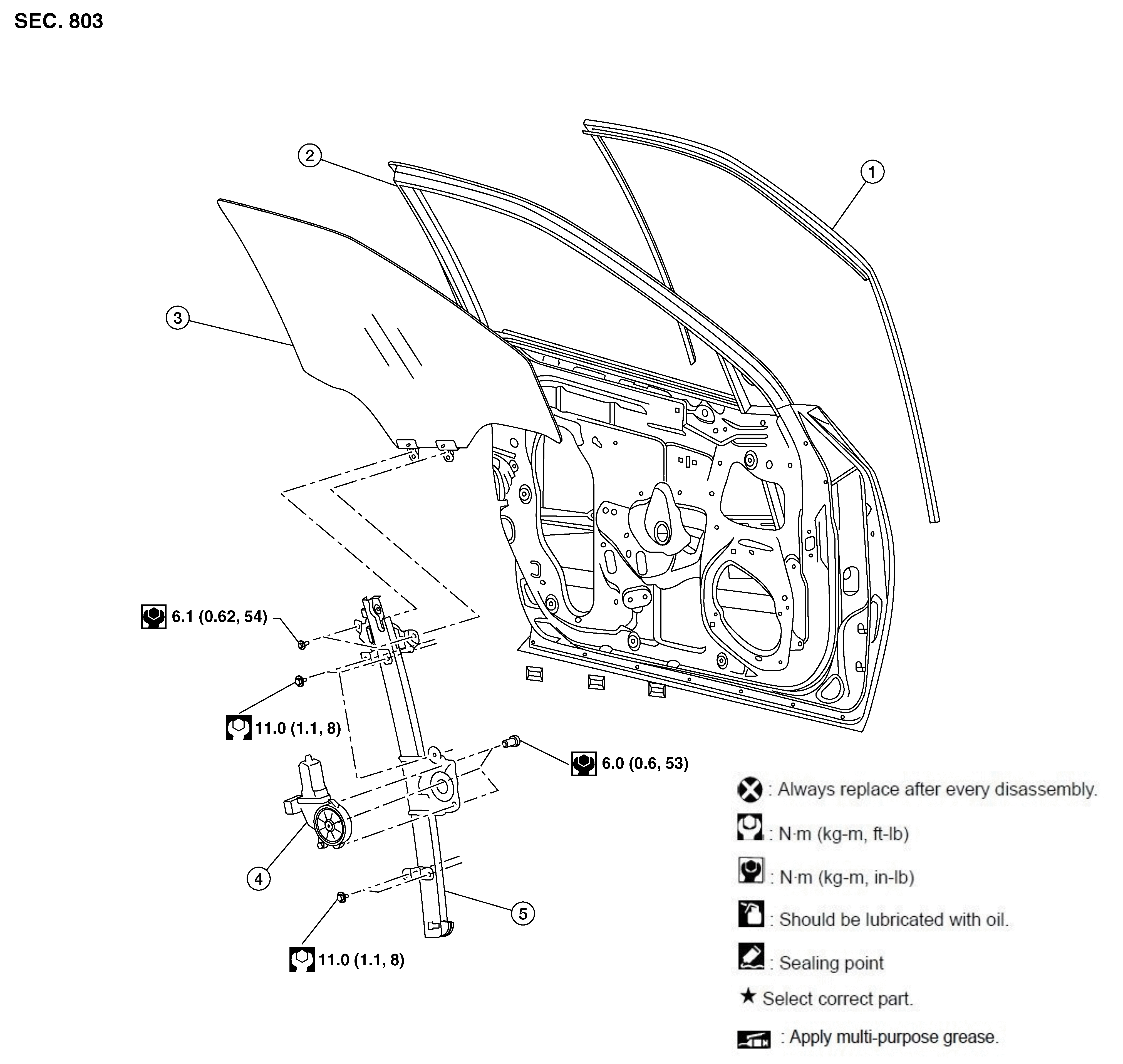

Fig 1: Front Door Glass and Regulator Components with Torque Specifications
Courtesy of NISSAN
1.
Door glass rubber run
2.
Door
3.
Door glass
4.
Front power window motor
5.
Door glass regulator
Courtesy of NISSAN
