Removal and Installation

Removal (Except Canada)

The immobilizer control module is integrated into the body control module (BCM). For removal and installation, refer to Removal and Installation .

Removal (For Canada)

1. Remove instrument panel assembly. Removal and Installation .

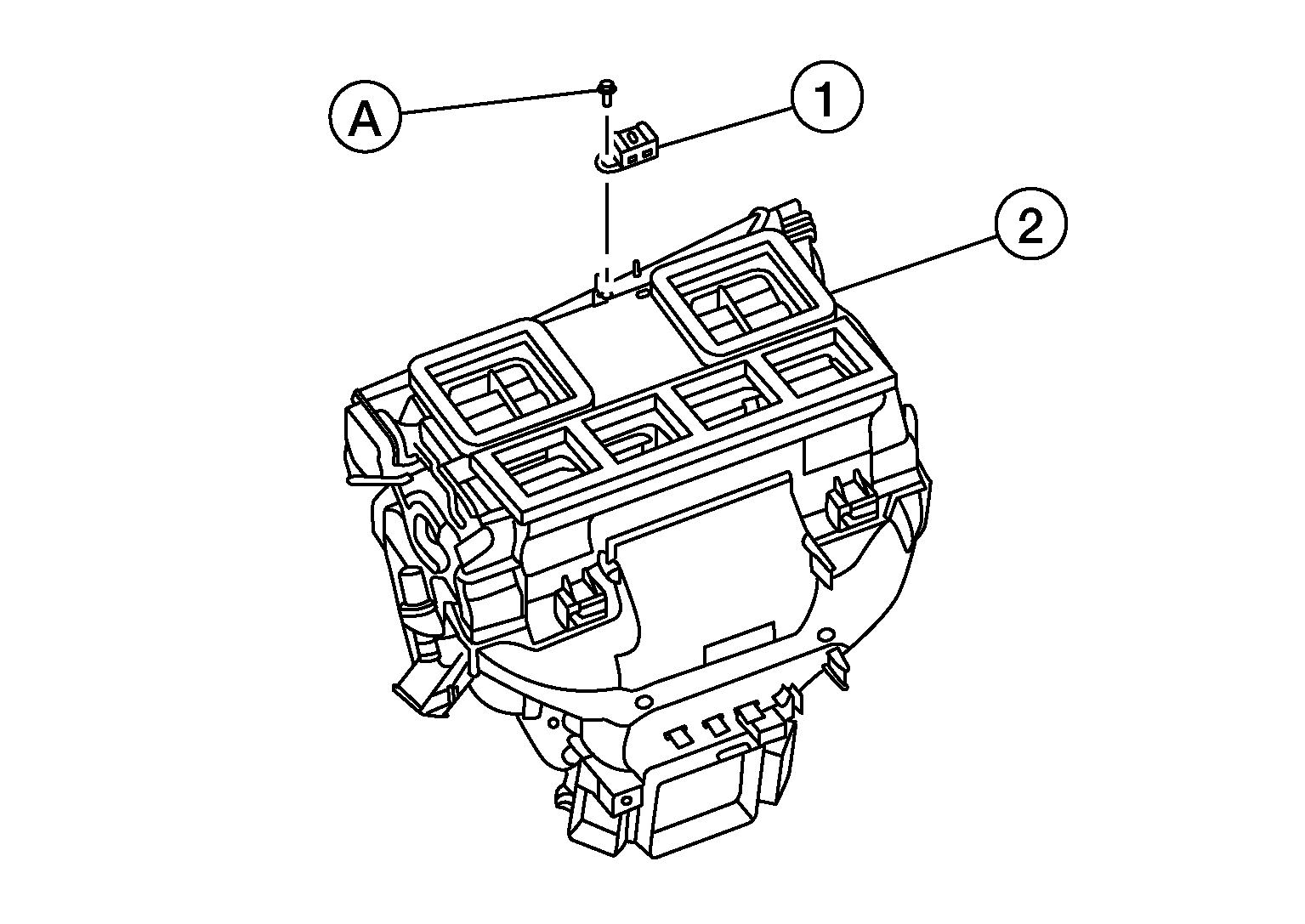

2. Disconnect the harness connector from the dongle unit (1).

   Courtesy of NISSAN

3. Remove screw (A) and dongle unit (1) from heating and cooling unit assembly(2).

Installation

Installation is in the reverse order of removal.
