Charging System: Generator

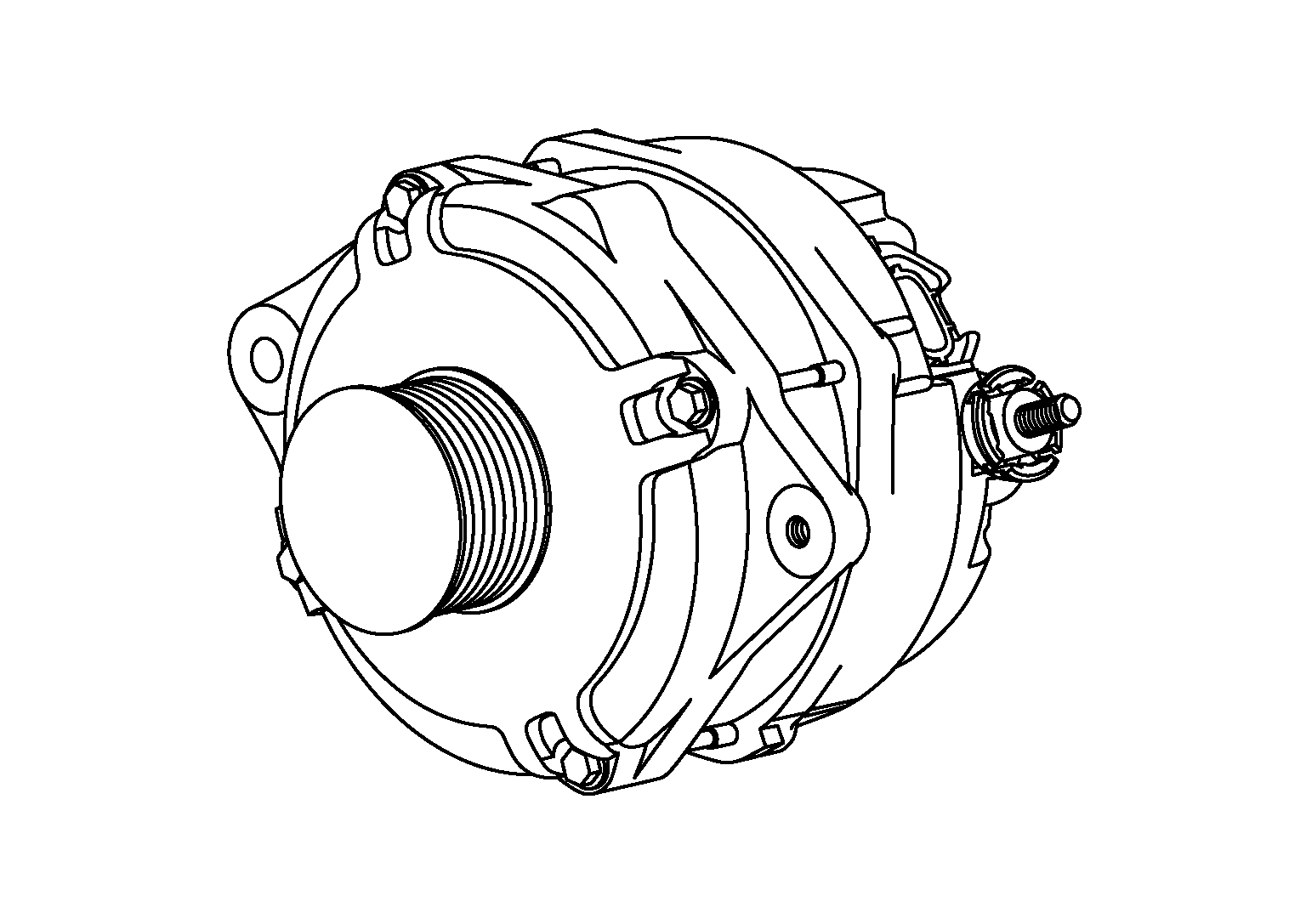

The generator is located at lower RH side of engine compartment.

Courtesy of NISSAN
The IC regulator controls the generator voltage based on the received PWM command signal.
When there is no PWM command signal, the generator performs the normal power generation according to the characteristic of the IC regulator.
