Consult /GST Checking System: Description

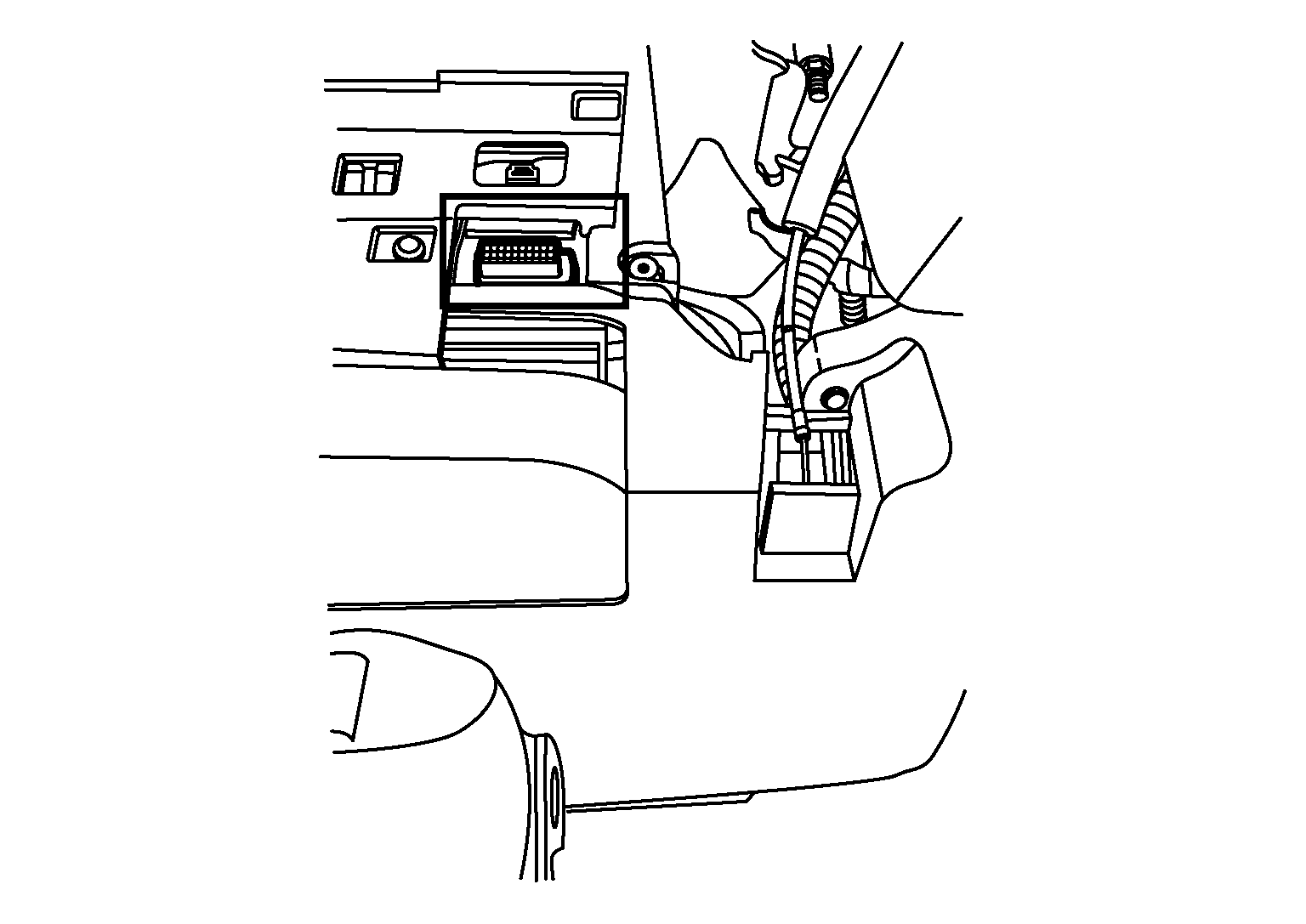

When CONSULT /GST is connected with a data link connector (A) equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.

Courtesy of NISSAN
Refer to CONSULT Software Operation Manual for more information.

FUNCTION

Mode	Function
All DTC Reading	Display all DTCs or diagnostic items that all ECUs are recording and judging.
Work Support	This mode enables a technician to adjust some devices faster and more accurately.
Self Diagnostic Results	Retrieve DTC from ECU and display diagnostic items.
Data Monitor	Monitor the input/output signal of the control unit in real time.
CAN Diagnosis	This mode displays a network diagnosis result about CAN by diagram.
CAN Diagnosis Support Monitor	It monitors the status of CAN communication.
Active Test	Send the drive signal from CONSULT to the actuator. The operation check can be performed.
DTC and SRT confirmation	The status of system monitoring tests and the self-diagnosis status/result can be confirmed.
ECU Identification	Display the ECU identification number (part number etc.) of the selected system.
Configuration	Function to READ/WRITE vehicle configuration.
Other	Other results or histories, etc. that are recorded in ECU are displayed.

SYSTEM APPLICATION

System	All DTC Reading	Work support	Self Diagnostic Result	Data Monitor	CAN Diagnosis	CAN Diagnosis Support Monitor	Active Test	ECU Identification	Configuration	DTC and SRT confirmation	Other
AIR BAG	x	-	x	x	x	x	-	x	x	-	TROUBLE DIAG RECORD
METER / M	x	-	x	x	x	x	-	x	-	-	Warning History
BCM	x	x	x	x	x	x	x	x	x	-	-
IPDM E/R	x	-	x	x	x	x	x	x	-	-	-
EPS/DAST 3	x	-	x	x	x	x	-	x	-	-	-
MULTI AV	x	x	x	x	x	x	-	x	x	-	-
HVAC	x	x	x	x	x	x	x	x	x	-	-
ABS	x	x	x	x	x	x	x	x	x	-	-
TELEMATICS*2	x	x	x	x	x	x	-	x	x	-	-
HV BATTERY	x	x	x	x	x	x	x	x	-	-	-
HV BATTERY 2	x	-	x	x	-	-	-	x	-	-	-
EV/HEV	x	x	x	x	x	x	x	x	-	-	-
CHARGER/PD MODULE	x	-	x	x	x	x	-	x	-	-	-
MOTOR CONTROL	x	x	x	x	x	x	-	x	-	-	-
SHIFT	x	-	x	x	x	x	-	x	-	-	-
BRAKE	x	x	x	x	x	x	x	x	-	-	-
VSP	x	x	x	x	x	x	x	x	-	-	-
AVM*2	x	x	x	x	x	x	-	x	x	-	-
AIR PRESSURE MONITOR	x	x	x	x	x	x	x	x	x	-	-
CHASSIS CONTROL*2	x	-	x	x	x	x	x	x	x	-	-
ICC/ADAS*2	x	x	x	x	x	x	x	x	x	-	-
LANE CAMERA *2	x	x	x	x	x	x	-	x	x	-	-
LASER/RADAR*2	x	x	x	x	x	x	-	x	-	-	-
EHS/PKB*2	x	x	x	x	x	-	-	x	-	-	-
SIDE RADAR LEFT*2	x	-	x	x	x	x	x	-	-	-	-
SIDE RADAR RIGHT*2	x	-	x	x	x	x	x	-	-	-	-
6ch CAN GATEWAY*2	-	-	x	-	x	x	-	x	x	-	-
OCCUPANT DETECTION	-	x	-	x	-	-	-	-	-	-	-
SONAR	x	x	x	x	x	x	-	x	x	-	-

x: Applicable

*1 : If GST application is equipped, functions in accordance with SAE J1979 and ISO 15031-5 can be used.

*2 : If equipped.

INSPECTION PROCEDURE

If the CONSULT /GST cannot diagnose the system properly, check the following items.

Symptom	Check item
CONSULT /GST cannot access any system.	CONSULT /GST DLC power supply circuit (Terminal 8 and 16) and ground circuit (Terminal 4 and 5).
CONSULT cannot access individual system. (Other systems can be accessed.)	Power supply and ground circuit for the control unit of the system. (For detailed circuit, refer to wiring diagram for each system.) Open or short circuit between the system and CONSULT DLC. (For detailed circuit, refer to wiring diagram for each system.) Open or short circuit CAN communication line. Refer to Trouble Diagnosis Flow Chart .

NOTE:

The DDL1 and DDL2 circuits from DLC pins 6, 7, 12, 13 and 14 may be connected to more than one system. A short in a DDL circuit connected to a control unit in one system may affect CONSULT access to other systems. If the GST cannot operate properly, check the circuit based on the information of SAE J1962 and ISO 15031-3.

For a complete DDL circuit layout and a complete CAN lines layout, refer to appropriate Wiring Diagram.
