Nissan-Datsun
>>
2023
>>
Kicks S
>>
Repair and Diagnosis
>>
Steering
>>
Steering Control Systems
>>
Steering Control System
>>
Removal And Installation
>>
EPS Control Unit
>>
Exploded View
Exploded View

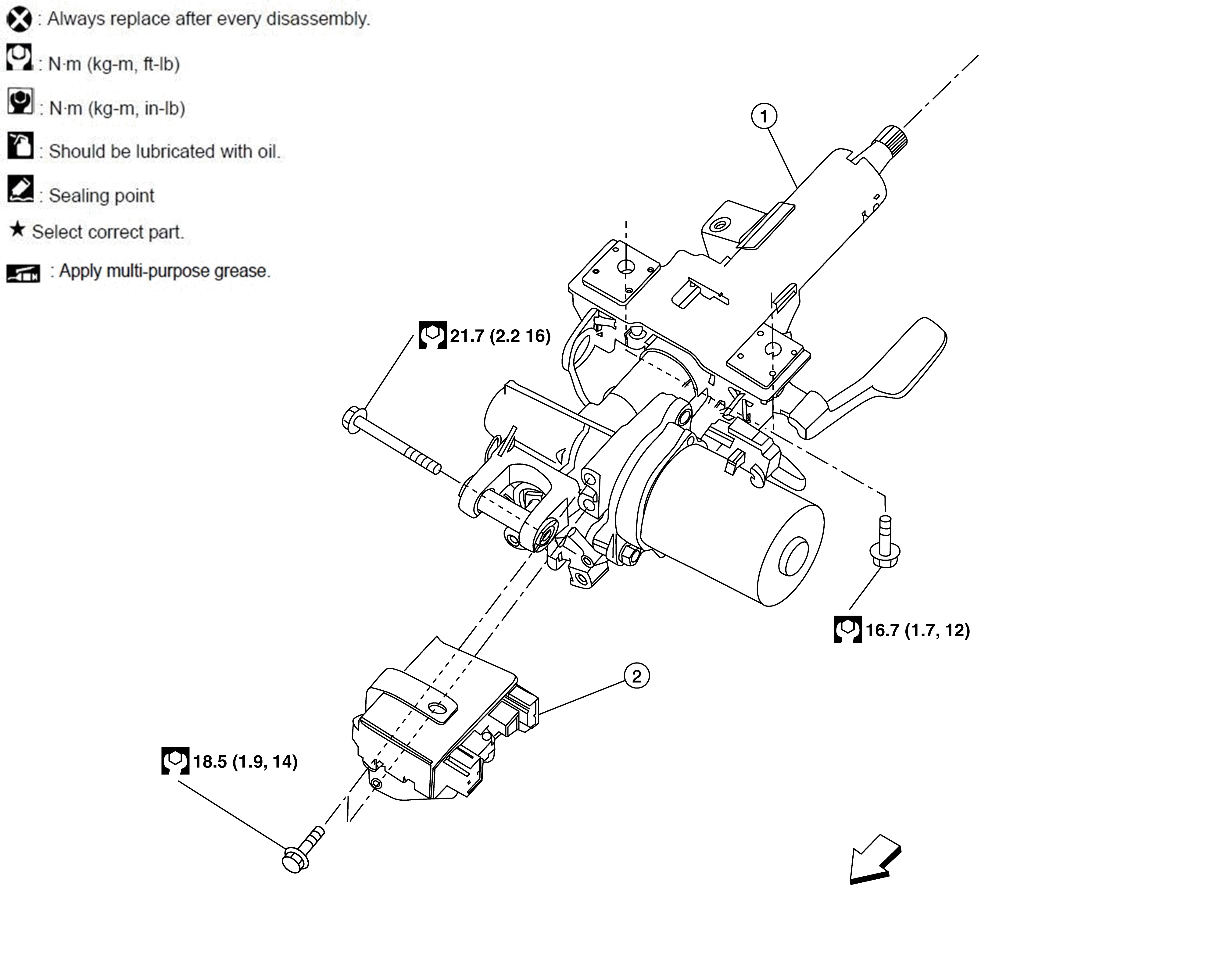

Fig 1: EPS Control Unit With Torque Specifications
Courtesy of NISSAN
1.
Steering column
2.
EPS control unit
Front
Courtesy of NISSAN
