Exploded View
Exploded View

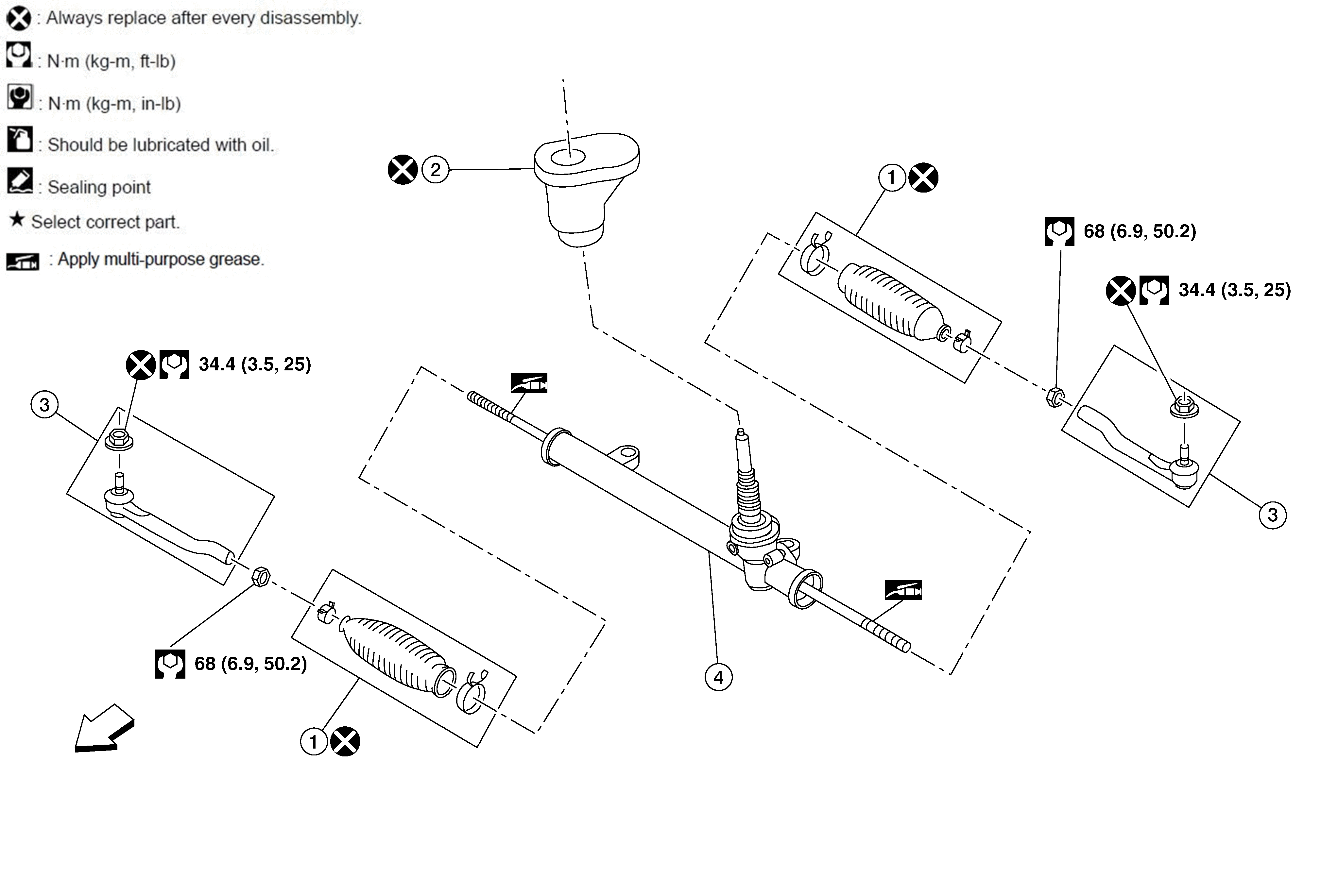

Fig 1: Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN
1.
Boot assembly
2.
Hole cover
3.
Outer socket
4.
Steering gear
Front
Courtesy of NISSAN
