Exploded View

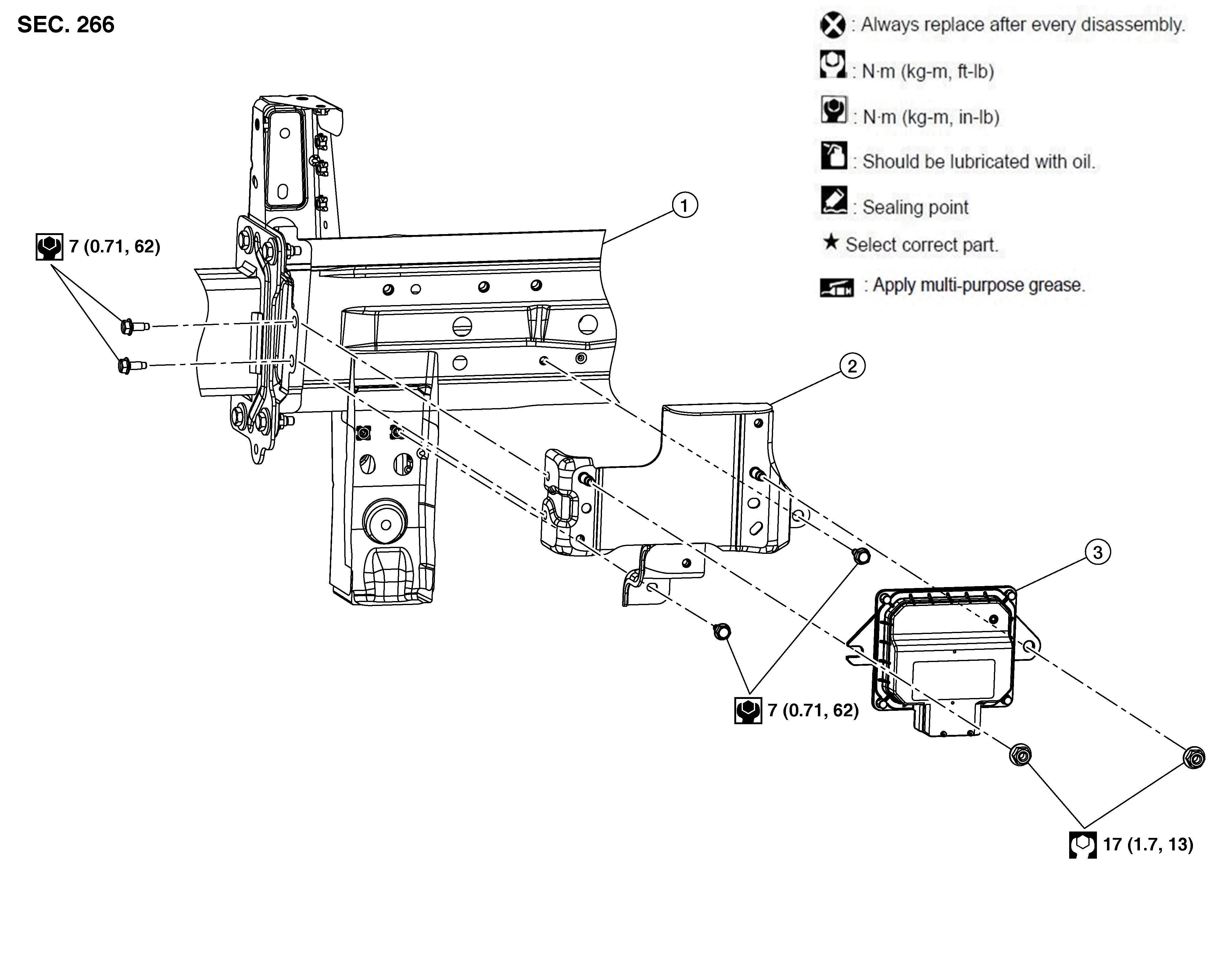

Fig 1: Electric Intake Valve Timing Control Module With Torque Specifications
GNSDB52783Courtesy of NISSAN
1. Side member 2. Electric intake valve timing control module bracket 3. Electric intake valve timing control module
