Charging System: Generator

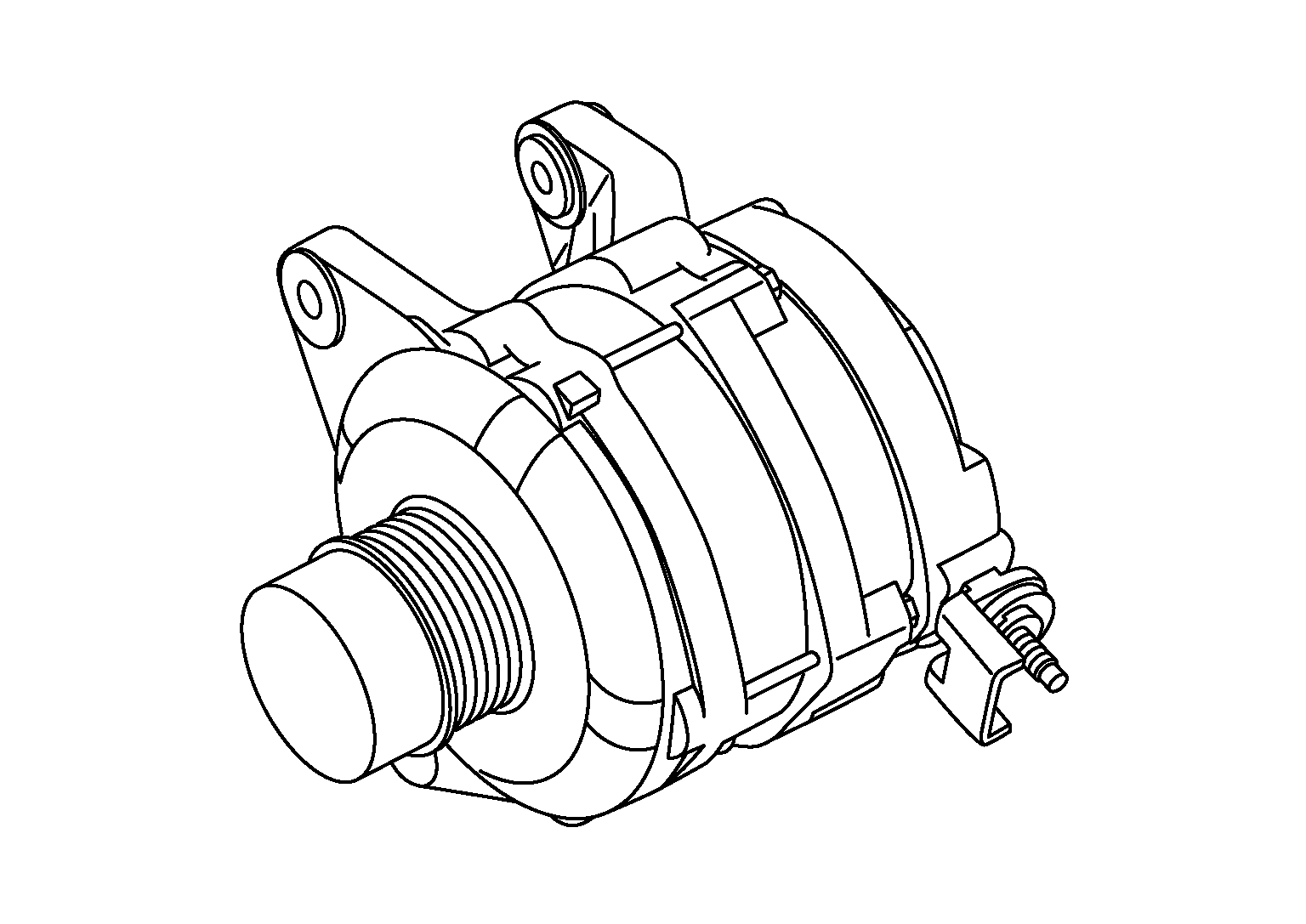

- The generator is located at lower RH side of engine compartment.
 Courtesy of NISSAN
|
- The generator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged. The voltage output is controlled by the IC voltage regulator.
- The output voltage of the generator is controlled by the IC voltage regulator inside the generator. IC voltage regulator controls the power generation voltage by the target power generation voltage based on the received power generation command signal. When there is no power generation command signal, the generator performs the normal power generation according to the characteristic of the IC voltage regulator.
