Exploded View

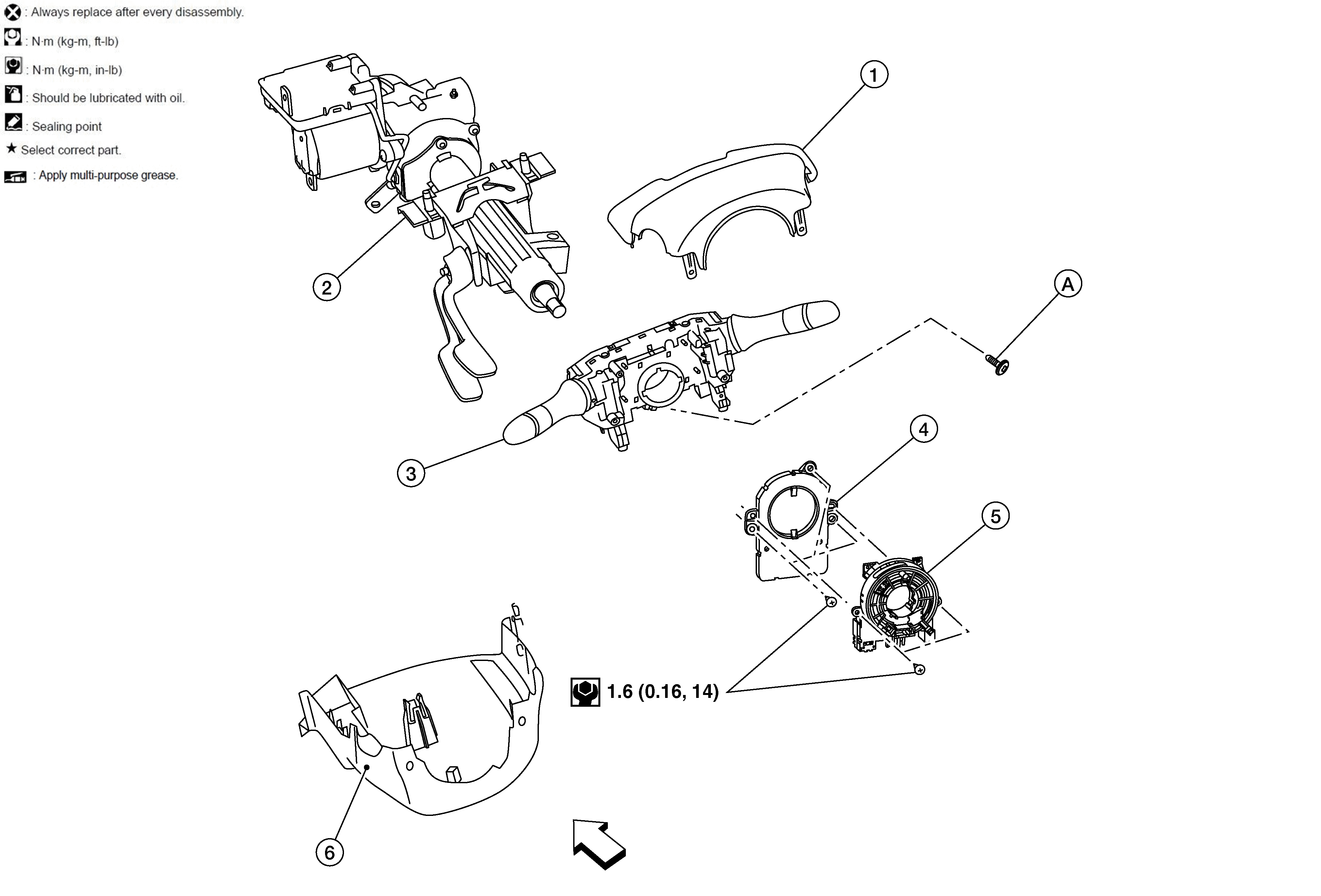

Fig 1: Combination Switch With Torque Specifications
GNSDB51786Courtesy of NISSAN
1. Steering column upper cover 2. Steering column 3. Combination switch
4. Steering angle sensor 5. Spiral cable 6. Steering column lower cover
A. Screw SYMBOL Front
