Exploded View

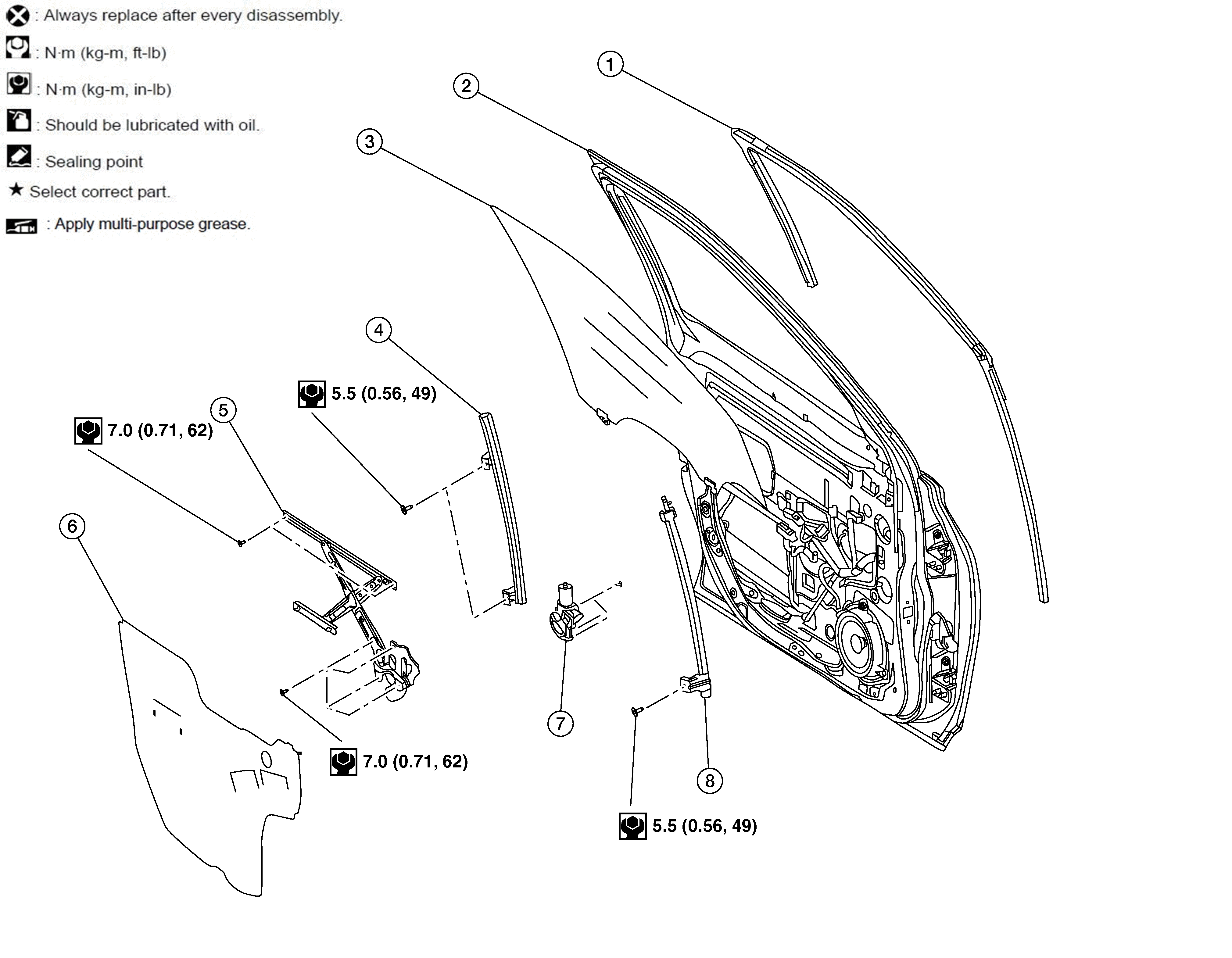

Fig 1: Front Regulator With Torque Specifications
GNSDB52146Courtesy of NISSAN
1. Door glass rubber run 2. Front door 3. Door glass
4. Door glass front run 5. Door glass regulator 6. Vapor barrier
7. Front power window motor 8. Door glass rear run
