Exploded View

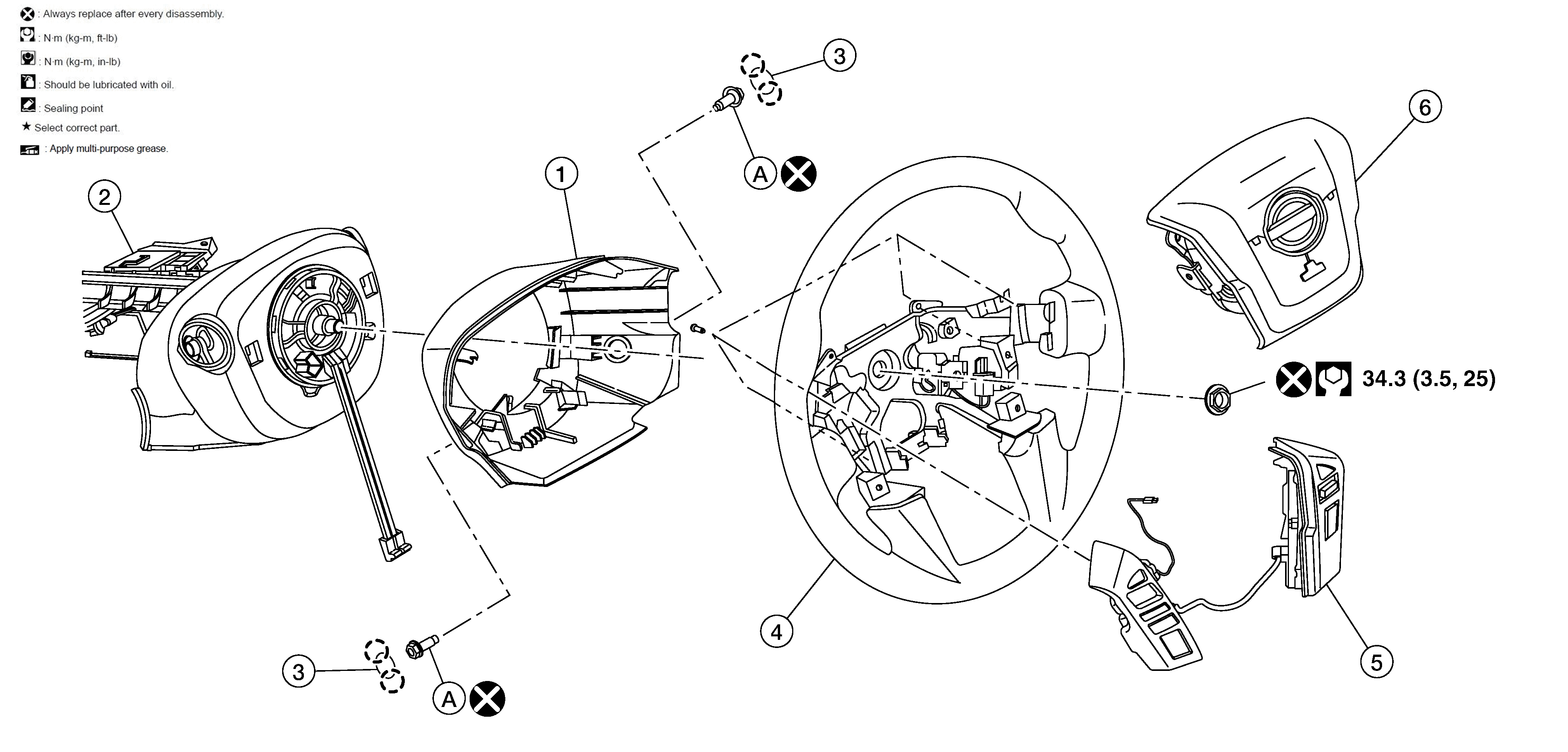

Fig 1: Steering Wheel With Torque Specifications
GNSDB42892Courtesy of NISSAN
1. Steering wheel cover 2. Steering column 3. Side lid
4. Steering wheel 5. ICC steering switches 6. Driver air bag module
A. Refer to Installation . SYMBOL Pawl
