Exploded View

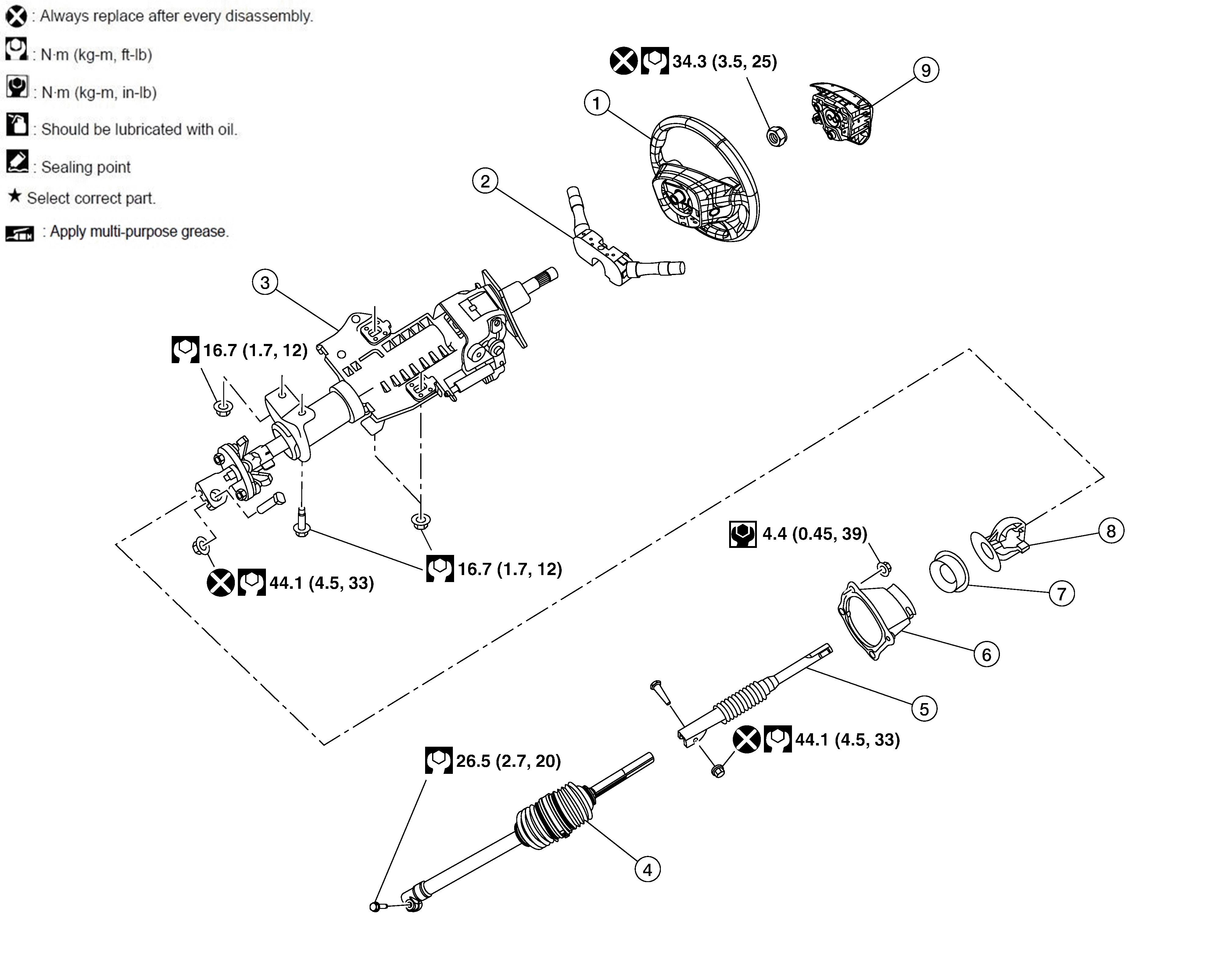

Fig 1: Steering Column With Torque Specifications
GNSDB42517Courtesy of NISSAN
1. Steering wheel 2. Combination switch 3. Steering column
4. Lower joint 5. Upper shaft 6. Hole cover
7. Hole cover seal 8. Collar 9. Driver air bag module
