Exploded View

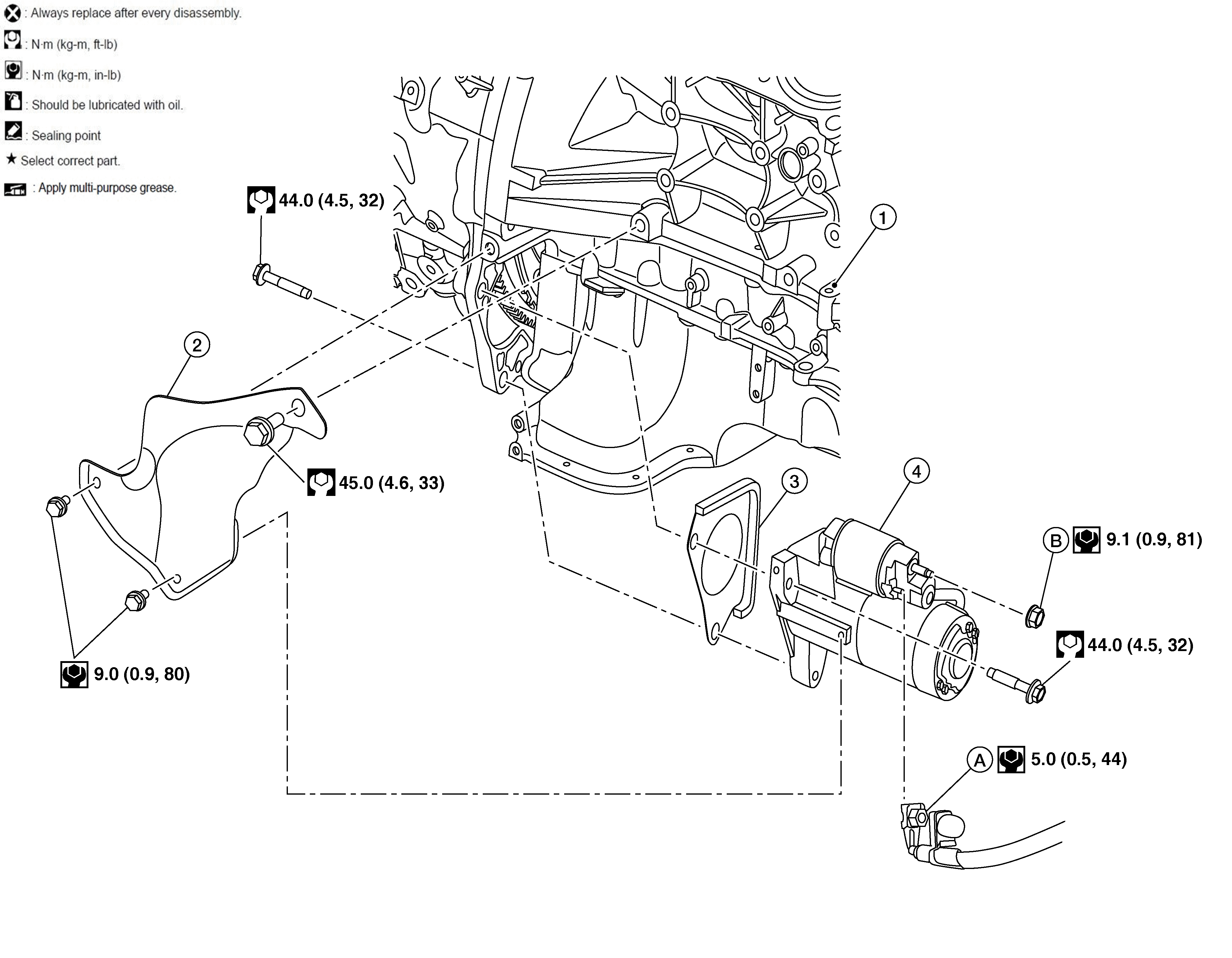

Fig 1: Starter Motor With Torque Specifications
GNSDB43219Courtesy of NISSAN
1. Cylinder block 2. Starter motor cover 3. Starter cover plate (rear)
4. Starter motor A. "S" terminal nut B. "B" terminal nut
