Engine Restart Bypass Relay
>>
Exploded View
Exploded View

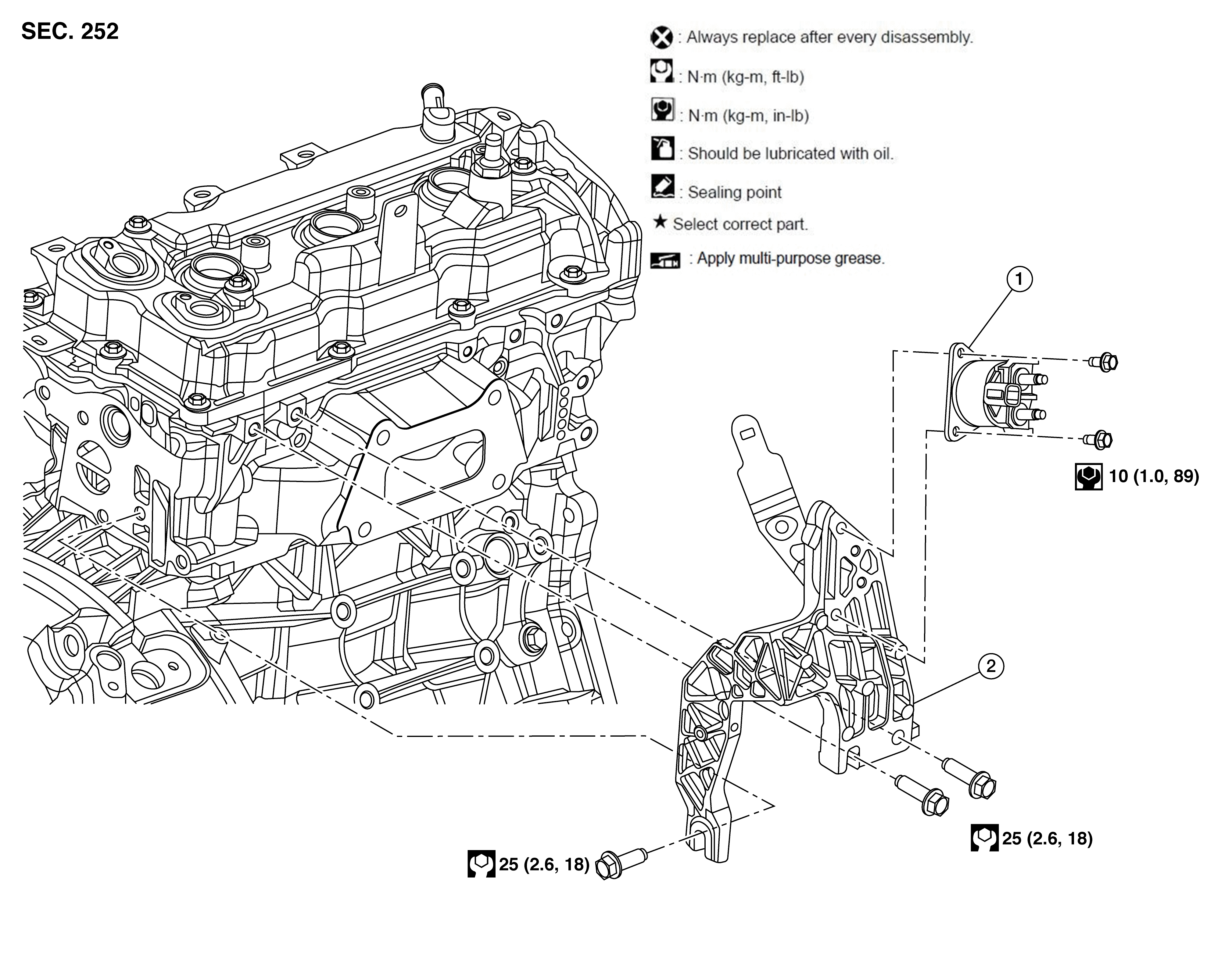

Fig 1: Engine Restart Bypass Relay With Torque Specifications
Courtesy of NISSAN
1.
Engine restart bypass relay
2.
Engine restart bypass relay bracket
