Removal and Installation
REMOVAL
CAUTION:
If replacing BCM, perform "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM)". Refer to Description .
- Disconnect the battery negative terminal. Refer to Battery Disconnect .
- Remove the instrument lower panel LH. Refer to Removal and Installation .

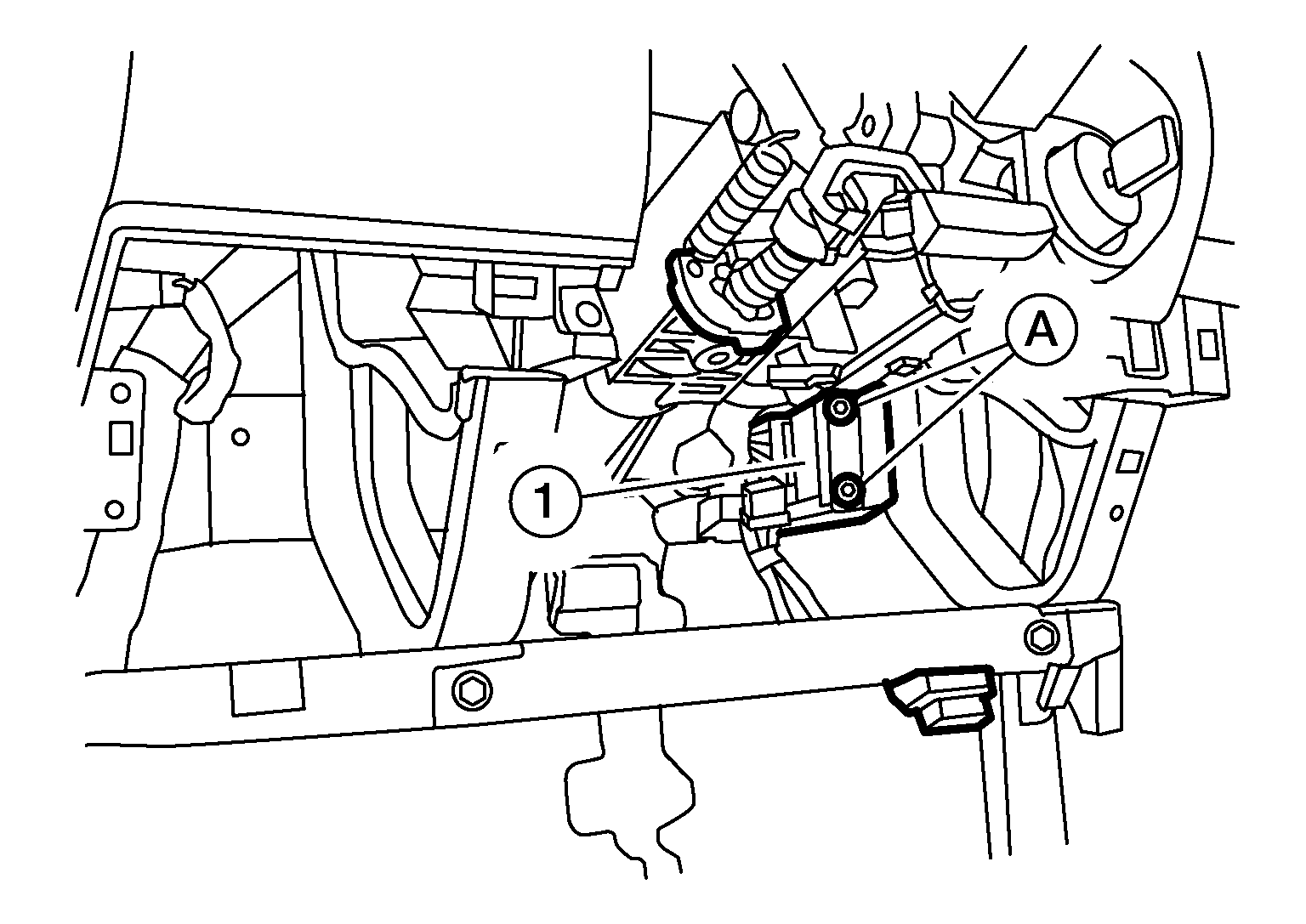

- Remove the screws (A).
- Disconnect the harness connectors from BCM and remove the BCM (1).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
If replacing BCM, perform "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM)". Refer to Description .
